INTELLIDOX DOCKING MODULE USER MANUAL || ASSEMBLE MODULES
BW TECHNOLOGIES BY HONEYWELL PAGE 14 OF 103

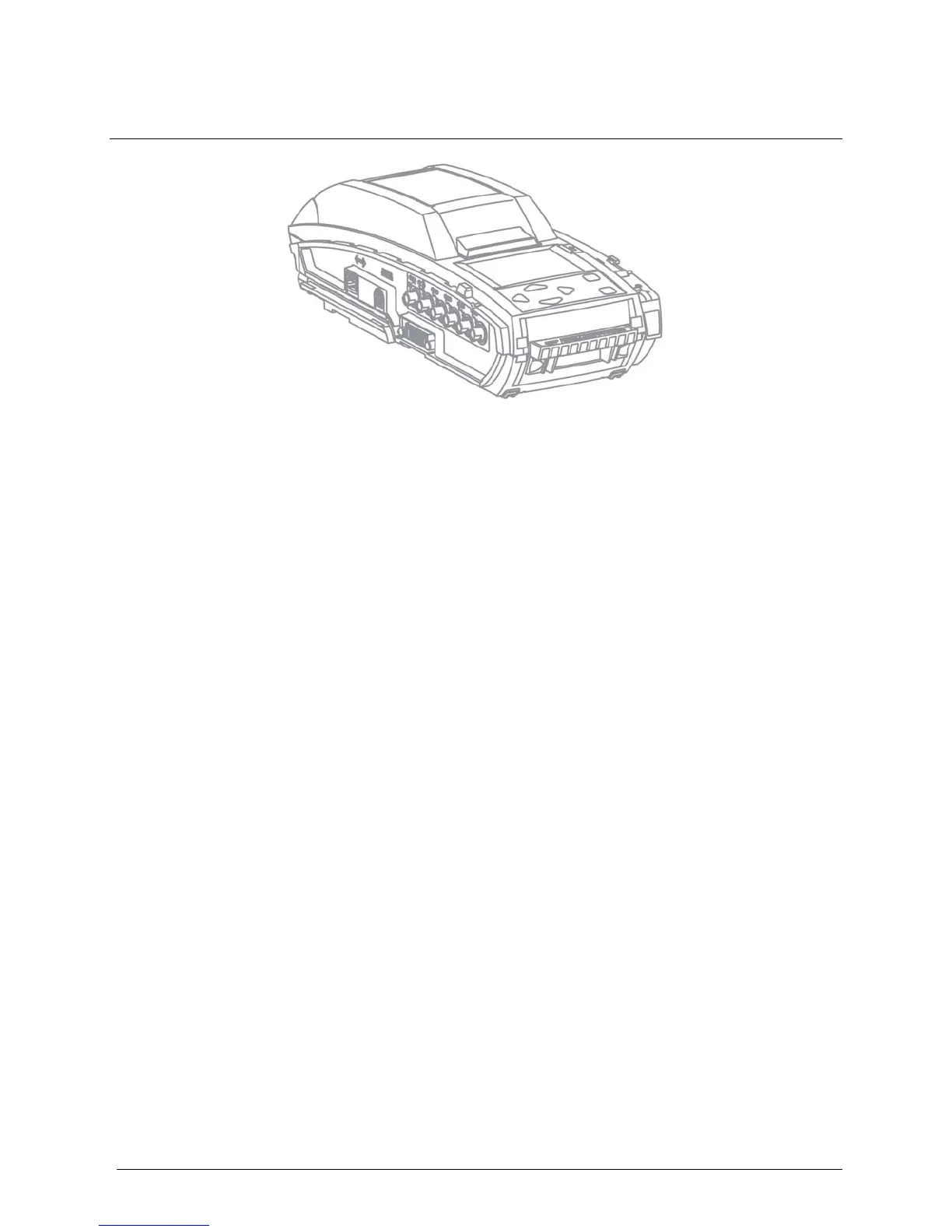

Work Plan: Assemble Individual Modules
Follow these steps to assemble and prepare an individual module for first-time use:
1. Place the module and component parts on a clean, dry work surface.
2. Verify that the appropriate inlet key is inserted. Replace the inlet key if necessary. For
more information, see Inlet Keys on page 9.
3. Assemble the stand, or mount the module on a wall or DIN rail. For more information
see:
1. Assemble the Stand on page 16
2. Mount on a Wall on page 18.
3. Mount on Parallel DIN Rails on page 22.
4. Prepare the module for use. For more information, see Prepare Modules for Use on
page 25.
1. Attach the end plate. For more information, see Attach the End Plate on
page 26.
2. Connect an inlet filter to the purge inlet. For more information, see Connect
the Inlet filter on page 28.
3. Insert an inlet plug into each unused inlet. For more information, see Insert
the Inlet Plugs on page 29.
4. Connect the exhaust tubing. For more information, see Connect the
Exhaust Tubing on page 27.
5. Connect the power. For more information, see Connect the Power on page
30.
6. Connect to a network. See Connect the Module to a Network on page 31.
5. Connect the calibration gas cylinder or cylinders, and then configure the gas inlets.
For more information, see Configure Gas Inlets on page 41.
