INTELLIDOX DOCKING MODULE USER MANUAL || PREPARE MODULES FOR USE
BW TECHNOLOGIES BY HONEYWELL PAGE 26 OF 103

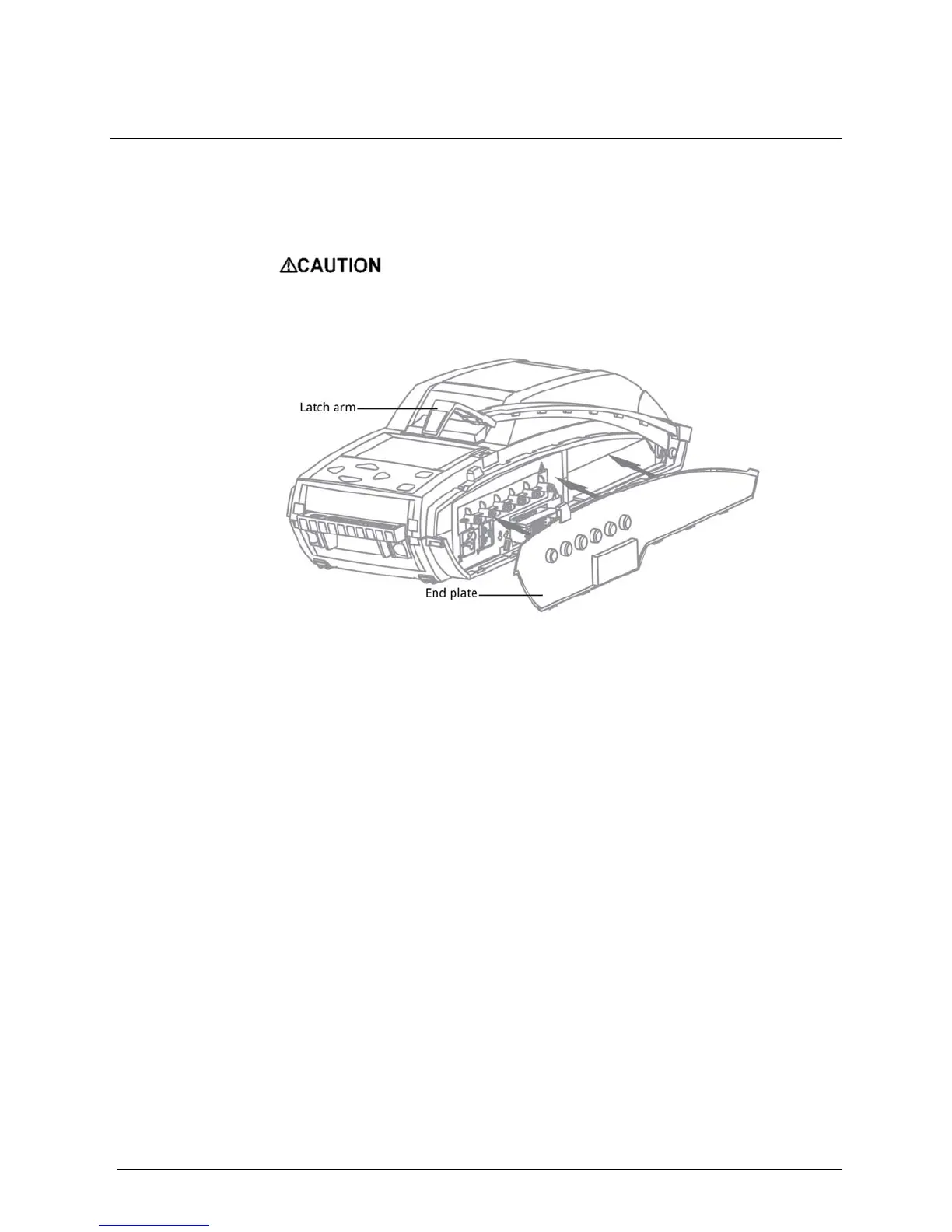

Attach the End Plate
The end plate must be attached and locked with the latch arm before connecting power
supply or connecting gas cylinders. The end plate must remain securely latched at all
times during operation. If the end plate is detached during operation, disconnect power
and replace the end plate immediately. Abnormal performance may occur when the end
plate is detached or removed.
Failure to comply may result in incorrect or failed compliance tests or calibrations.
Attaching the End Plate
1. Unlock and raise the latch arm.
2. Attach the end plate. Verify that the end plate is firmly attached and set flush with the
edge of the module.
3. Lower and lock the latch arm.
Removing the End Plate
1. Unlock and raise the latch arm.
2. Remove the end plate.
