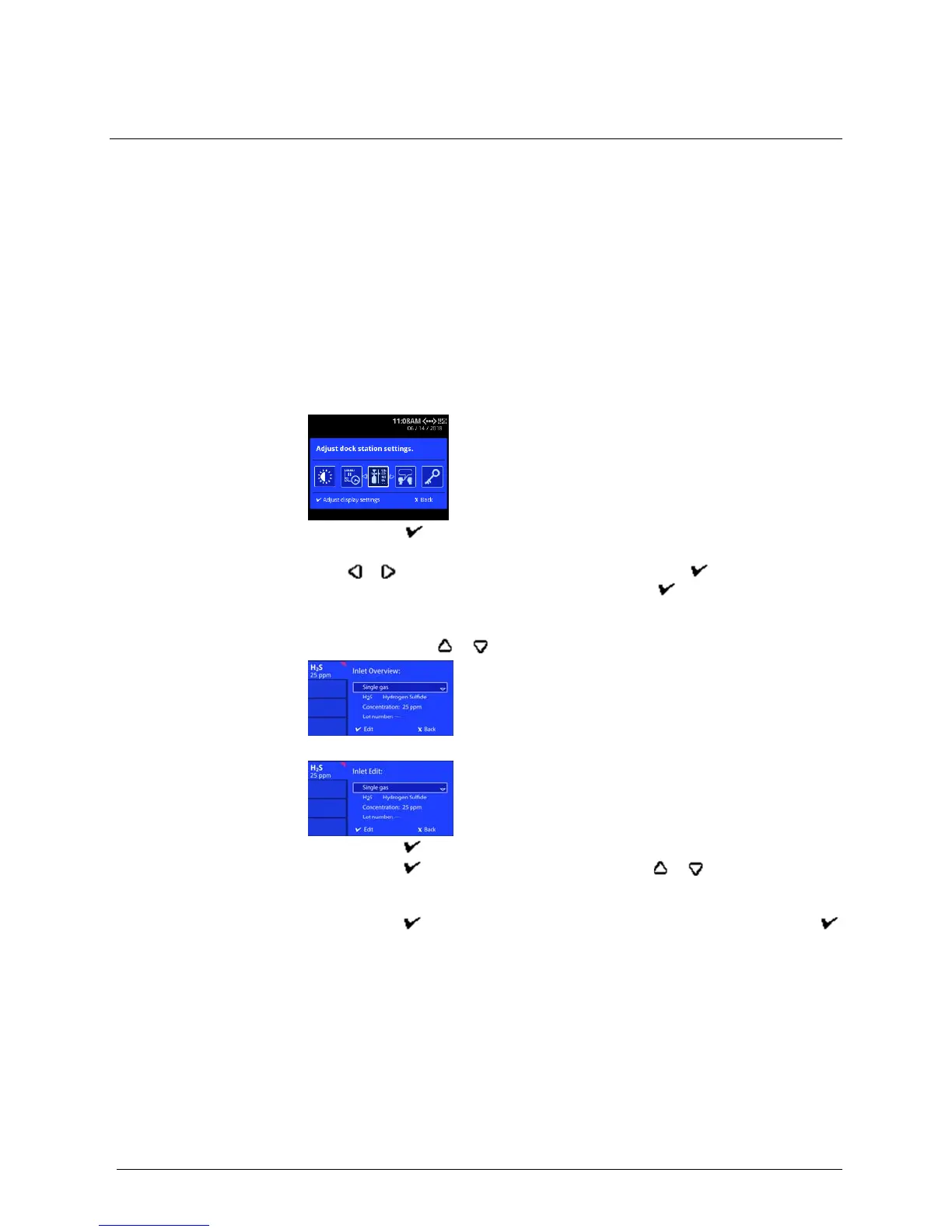

INTELLIDOX DOCKING MODULE USER MANUAL || DOCK STATION SETTINGS MENU
BW TECHNOLOGIES BY HONEYWELL PAGE 41 OF 103
Configure Gas Inlets
For each attached calibration gas cylinder, you must configure the gas blend, and then
configure each gas type and concentration contained in the gas blend. You may also
record the lot number of the calibration gas cylinder.
If a single-inlet key is inserted in an individual module or all connected modules in a gang,
then you can attach one calibration gas cylinder. If a multi-inlet key is inserted in an
individual module or one or more connected modules in a gang, then, then you can attach
up to four calibration gas cylinders. For more information, see Inlet Keys on page 9.
If the module is part of a gang of up to 5 connected modules, then changes to the gas inlet
settings affect all of the modules in the gang. If the gang contains both single-inlet and
multi-inlet key modules, then changes to Inlet 1 affect all modules and changes to Inlets 2,
3 and 4 affect the multi-inlet key modules only.
Configuring Gas Inlets
1. Press and hold on the keypad until Adjust dock station settings is displayed on
the LCD.
2. Press or to select Configure gas inlets and then press . If the procedure is
passcode-protected, then enter the passcode and press to continue.
3. The Inlet overview for Inlet 1 is displayed. If a multi-inlet key is inserted in an
individual module or one or more connected modules in a gang, then four inlet tabs
are displayed. Press or to select and configure a different inlet.
4. Configure the gas blend for the selected inlet.
1. Press to display the Inlet edit menu. Gas blend is highlighted.
2. Press to select Gas blend, and then press or to select a single-gas
blend or a multi-gas blend of 2 or more gas types. If the inlet is not
connected to a gas cylinder, select No inlet.
3. Press to save the changes and return to the Inlet edit menu, or press
to abandon the changes and return to the Inlet edit menu.
