INTELLIDOX DOCKING MODULE USER MANUAL || ASSEMBLE MODULES
BW TECHNOLOGIES BY HONEYWELL PAGE 23 OF 103
Mounting Modules on Parallel DIN Rails
1. Prepare the modules for mounting.
1. Disconnect modules that are connected into gangs.
2. Disconnect the power cord, network cable, tubing and inlet filter assemblies.
3. Remove the end plate.
2. Attach a module to the DIN rails. Repeat as necessary until all modules attached.
1. Hold the module upright with the back panel toward the DIN rails. Place the
top DIN mount over the top of the upper DIN rail and then lower the module
toward the lower DIN rail until it snaps into place.
2. Verify that the module is firmly attached to both the upper DIN rail and the
lower DIN rail.
3. Connect the attached modules into gangs of up to 5, if using. Repeat as necessary
until all gangs are connected.
1. Snap the first module into position on the DIN rail, and then unlock and raise
the latch arm.

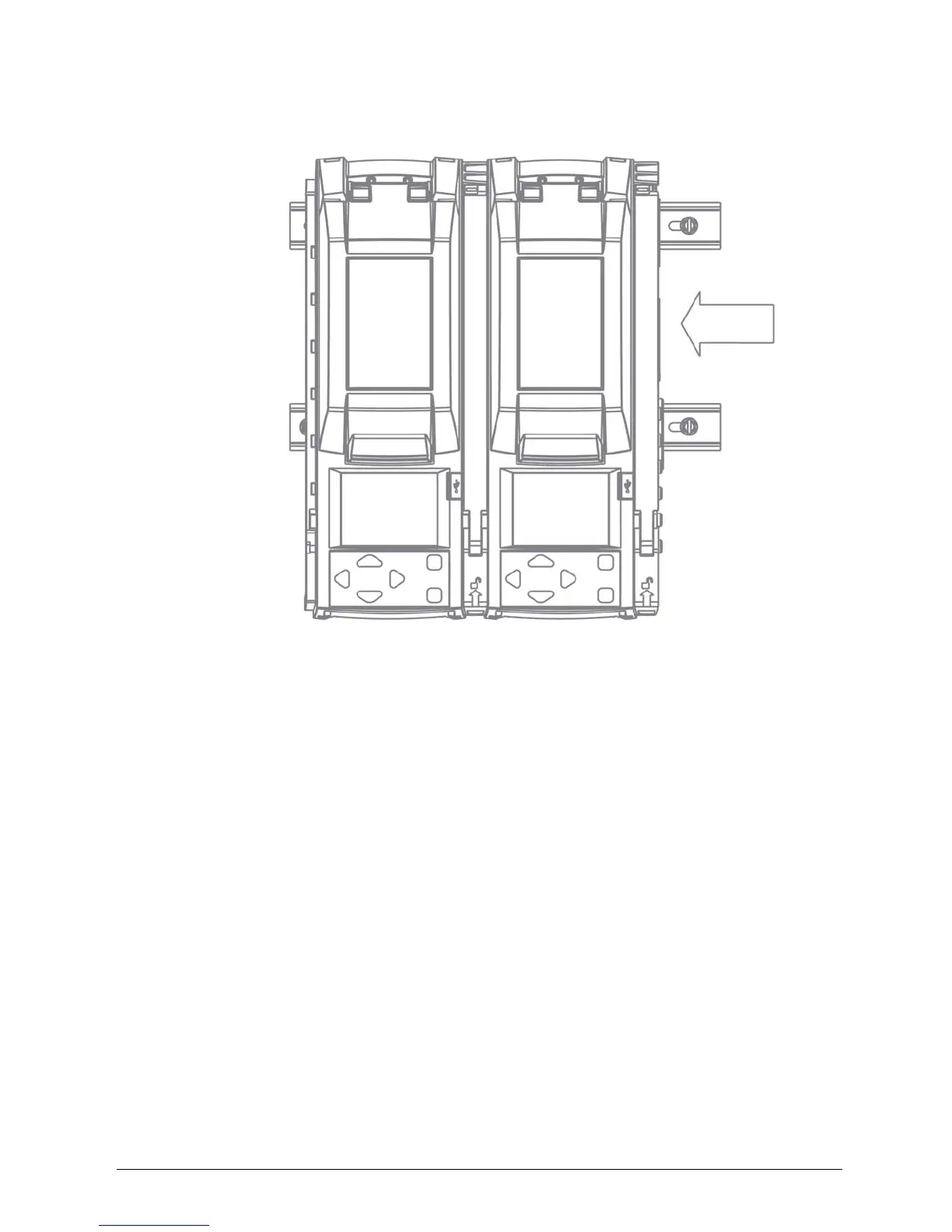

2. Snap the second module onto the DIN rail, and then slide it into position
beside the first module. Push the modules firmly together and then lower
and lock the latch arm.
3. Repeat as necessary until the gang is complete.
4. Prepare the module for use. For more information, see Prepare Modules for Use on
page 25.
1. Attach the end plate. Verify that the latch arm is lowered and locked.
2. Connect the inlet filters, tubing, network connection and power cord.
