INTELLIDOX DOCKING MODULE USER MANUAL || ASSEMBLE MODULES
BW TECHNOLOGIES BY HONEYWELL PAGE 17 OF 103
Connect Modules
Up to 5 modules may be connected to form a gang. Connected modules share a power
supply, network connection, exhaust tubing, inlet filter assemblies, and connected
calibration gas cylinders.
Connecting Modules
1. Assemble the stand for each module you plan to connect. For more information, see
Assemble the Stand on page 16.
2. Connect two modules.
1. Unlock and raise the latch arm on the first module. If an end plate is
attached, remove it.
2. Align the connection port, outlets and stand on the first module with the
connection port, inlets and stand on the second module.
3. Push the modules firmly together to connect. Verify that the stands are
connected, and then lower and lock the latch arm on the first module.
3. Unlock and raise the latch arm on the last connected module, and then connect
another module. Repeat as necessary to connect up to a maximum of five modules in
one gang.
4. Prepare connected modules for use.
1. Verify that connected modules are firmly attached and latch arms are
lowered and locked.

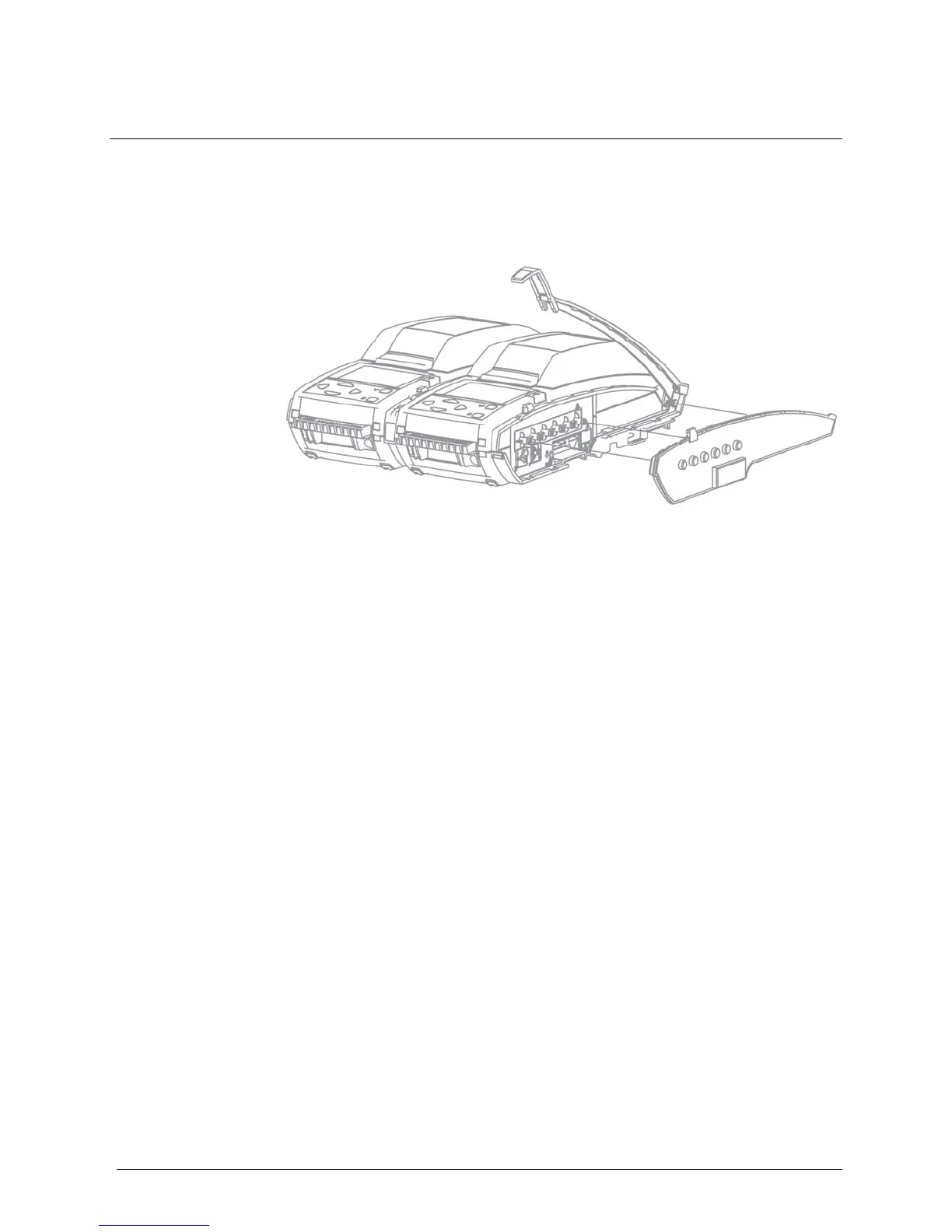

2. Attach the end plate to the last module in the gang. Verify that the latch arm
is lowered and locked.
3. Connect the inlet filters, tubing, network connection and power cord.
4. Verify that each module in the gang is activated and a consecutive bay
number is displayed on the LCD. See LCD Screen on page 11.
Disconnecting Modules
1. Disconnect the power.
2. Unlock and raise the latch arm between two modules.
3. Holding one unit in each hand, gently pull the modules apart.
4. Repeat as necessary until all modules in the gang are disconnected.
