INTELLIDOX DOCKING MODULE USER MANUAL || DETECTOR OPERATIONS
BW TECHNOLOGIES BY HONEYWELL PAGE 54 OF 103
You may use Fleet Manager II software to configure a detector to automatically perform
calibration on insertion if the sensor calibration is overdue. When a compatible detector is
inserted into the module and the calibration is overdue, then calibration starts
automatically once the detector is recognized. Progress screens are displayed while the
tests are performed.
1. Insert a compatible detector into the module. The LCD changes to gray and Detector
identification is displayed.
2. When the module is configured to perform a calibration on overdue sensors and other
procedures on insertion and the calibration is overdue, the LCD changes to yellow
and Testing Alarms is displayed after the detector is recognized. Go to step 6.
3. When the module is configured to perform calibration and other procedures on
insertion and the calibration is NOT overdue, the other procedures are performed
after the detector is recognized. After the procedures are completed, What do you
need to do? is displayed on the LCD. Go to step 5.
4. When the module is NOT configured to perform calibration or other procedures on
insertion, detector operations menu and What do you need to do? are displayed
after the detector is recognized. Go to step 5.

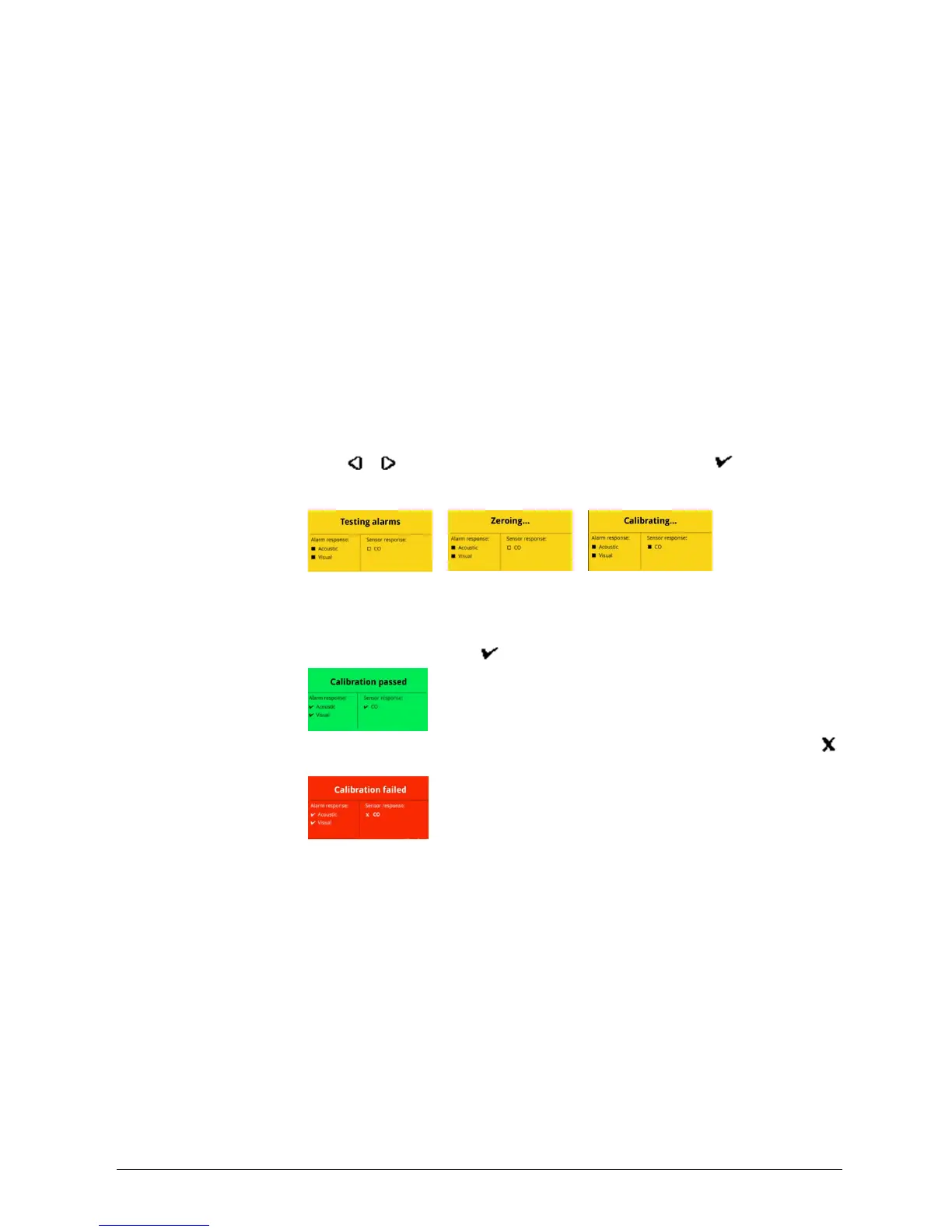

5. Press or to scroll to Calibrate my detector, and then press . The
LCD changes to yellow and the calibration begins. Calibration begins. Progress
screens are displayed while the tests are performed.
6. If the module is configured via Fleet Manager II software to automatically download
datalogs, the detector datalogs are transferred to the module after the calibration is
complete.
7. When the calibration is successful, the LCD changes to green and Calibration
passed is displayed. Press to return to the detector operations menu.
8. If the calibration fails, the LCD changes to red and Calibration failed is displayed.
indicates failed alarm and/or sensor test.
9. To understand how to respond appropriately to failed tests, refer to the appropriate
detector operator manual.
