INTELLIDOX DOCKING MODULE USER MANUAL || REPLACE DETECTOR CRADLE AND CALIBRATION INSERT
BW TECHNOLOGIES BY HONEYWELL PAGE 83 OF 103

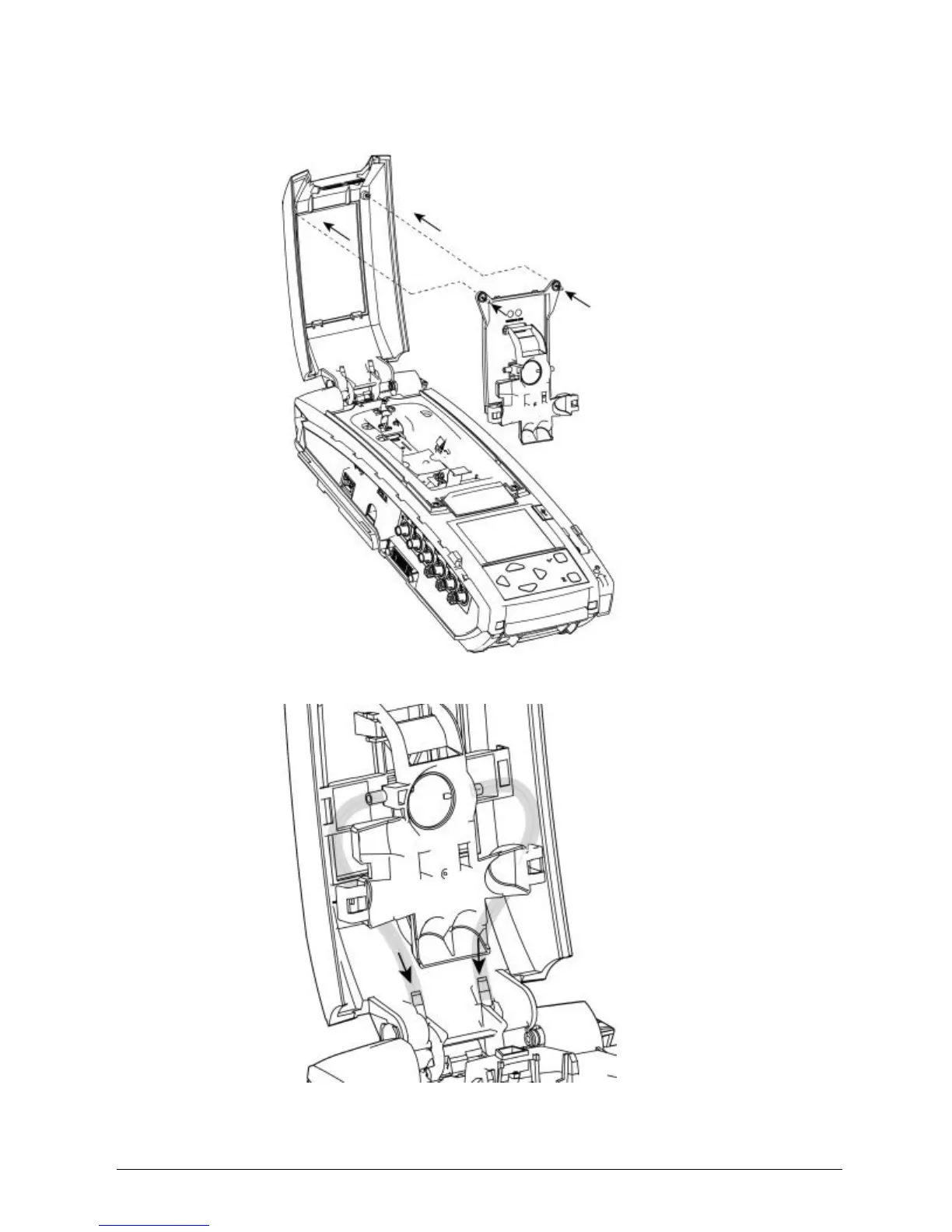

6. Slide the calibration insert tabs under the IntelliDoX lid assembly to place the
replacement calibration insert into the IntelliDoX.
7. Use a screwdriver to fasten the two screws on the replacement calibration insert.
8. Connect the gas tubes to the IntelliDoX.
