Handling rolls
Loading Roll on the Roll Holder
Note
For details on supported sizes and types of the roll that can be loaded, see “Paper Sizes” or the Paper
Reference Guide . ( P .1 17) ( P .1 12)
Align the edges of the paper on both ends of the roll.
If the edge of the roll is bent or soiled, use the Paper Cutting operation of the printer to cut the edge of
the paper manually . ( P .135)
If the paper is badly creased or bent, cut the edge of the roll with scissors before loading the roll in
the printer , and then cut the edge of the paper manually using the Paper Cutting operation of the
printer . ( P .135)
T o load a roll with a 3-inch paper core, insert the 3-Inch Paper Core Attachment on the roll holder and
attach the 3-Inch Paper Core Holder Stopper . ( P .150)
If you use a roll A1, A2 or larger for Borderless Printing , insert the provided Spacer for Borderless
Printing on the Roll Holder .
Follow the steps 3 and 4 below .

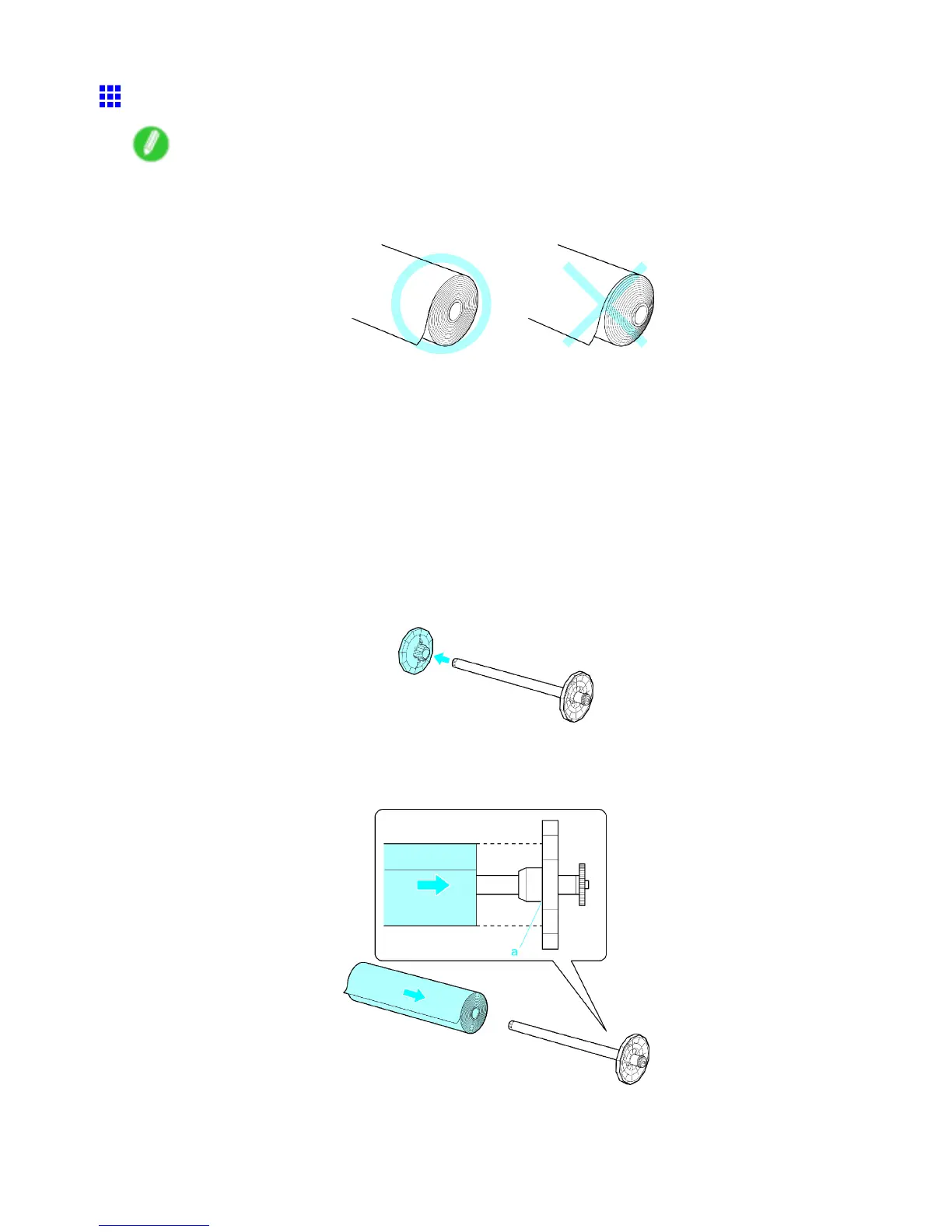

1. Remove the Holder Stopper from the Roll Holder .
2. With the Roll Holder sideways and the edge of the roll paper facing forward as shown, insert
the roll in the Roll Holder from the left. Insert the roll rmly until it touches the ange (a) of
the Roll Holder .
Handling Paper 121
