Canon imagePROGRAF iPF610 User Manual

Ink T anks
Replacing an Ink T ank

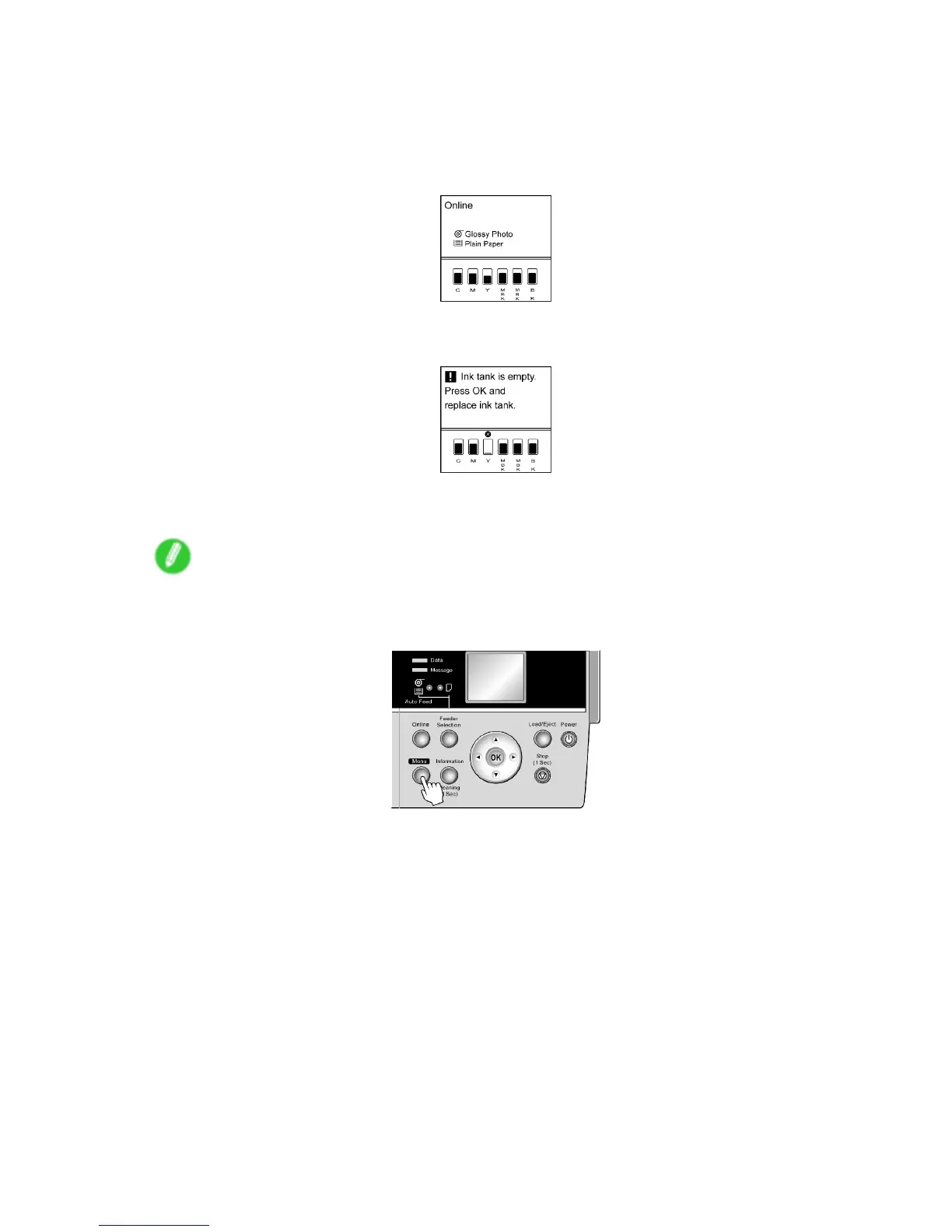

1. Make sure no print jobs are in progress.
Y ou can replace Ink T ank if the Display Screen indicates the printer is Online or Ofine , or if
messages advise you to check the amount of ink left or replace the Ink T ank .
If a message prompts you to replace the Ink T ank , press the OK button. Steps 2-4 are
unnecessary in this case. Go to step 5 and remove the Ink T ank .
Do not remove an Ink T ank during initialization immediately after turning on the printer , or during
printing or printhead cleaning.
Note
• Ink T ank replacement is possible even when print jobs are being canceled or if paper is being fed.
2. Press the Menu button to display MAIN MENU .
3. Press ▲ or ▼ to select Rep. Ink T ank , and then press the ► button.
4. Press ▲ or ▼ to select Y es , and then press the OK button.
A message on the Display Screen advises you to open the Ink T ank Cover . Next, remove the
Ink T ank .
Maintenance 617

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
