Printer parts
V ents

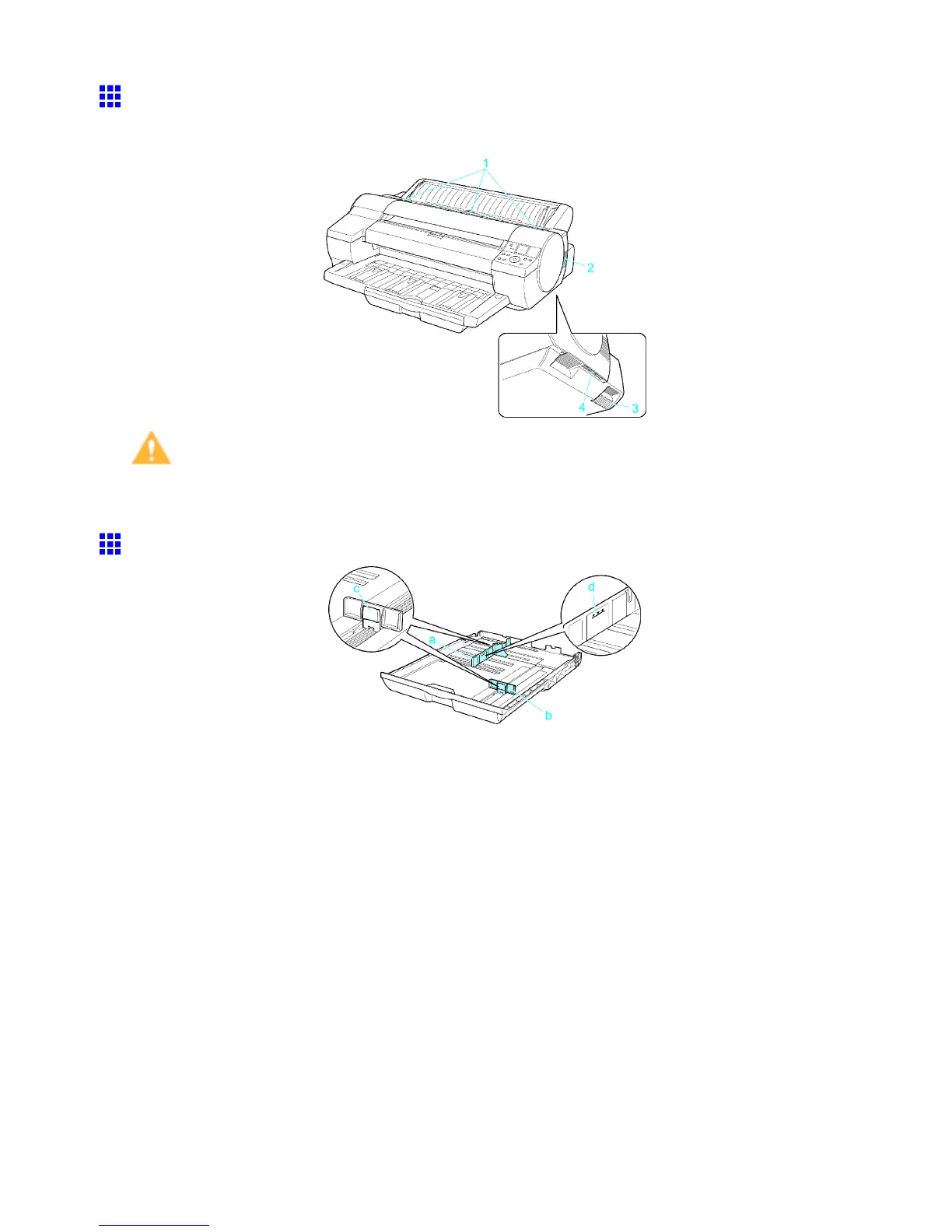

The vents are on top (1), on the right (2), and on the bottom on the right (3 and 4).
Caution
• Do not block these vents when the printer is on.
• A void setting paper or other light objects near the vents.
Cassette
a. Width Guide
Adjust this guide to hold paper widthwise.
b. Length Guide
Adjust this guide to hold paper lengthwise.
c. Guide Lever
Squeeze these levers to slide the guides.
d. Maximum Capacity Line
A guide line indicating how many sheets can be loaded. Do not load paper over this line.
