Canon imagePROGRAF iPF610 User Manual

Control Panel
GL2 Settings
Setting Item Description, Instructions
GL2 Replot Print the last printed job (still stored in the printer memory) again.
GL2 BufferClear Delete the last job printed using HP-GL/2, still stored in the printer memory .
Color Mode Choose the color mode.
Print Quality Choose the print quality .
Input Resolution Choose the printer input resolution, 600dpi or 300dpi .
Media Source Choose the media source forHP-GL/2 printing.
Conserve Paper Conserves paper when printing.

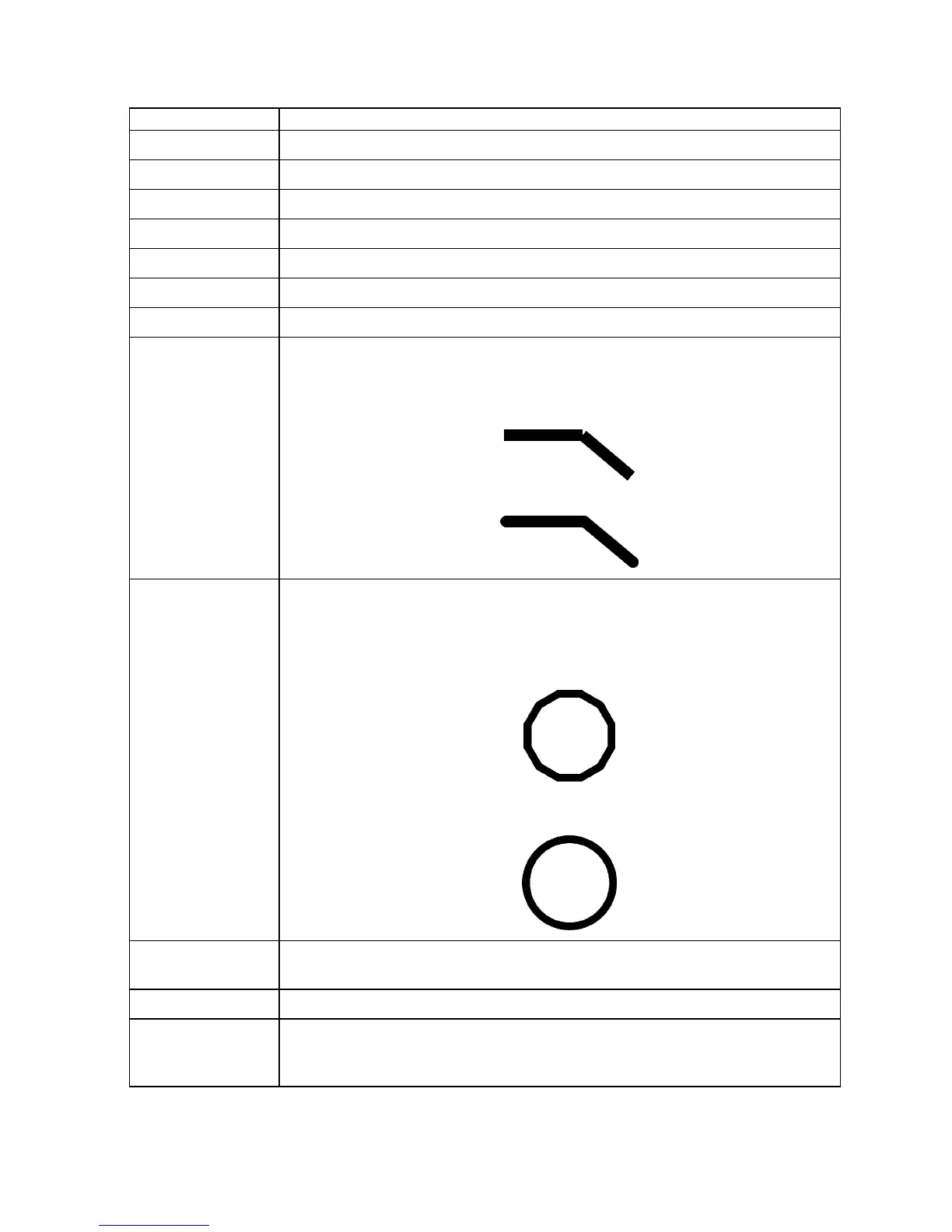

Line Cap Choose the shape of the end point, determined by Software or Rounded .
• If you choose Software
Operation is determined by the application. If nothing is specied by the
application, the result is as shown in the gure.
• If you choose Rounded
Smoothing Choose whether to print arcs as smooth curved lines or as multiple connected line
segments.
• If you choose Software
Operation is determined by the application. If nothing is specied by the
application, the result is as shown in the gure.
Note: By default, this is a 72-sided gure
• If you choose Smooth
Line W idth Choose the width for printing lines if no width is specied in the data. Dots in the line
width are 300 dpi each.
ThickenFineLines Select On to print ne lines more distinctly .
AdjustFaintLines If ne lines are printed in colors that do not match the colors of other shapes,
selecting Off may help produce the expected results. However , lines in some colors
may appear broken.
54 Printer Parts

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR
