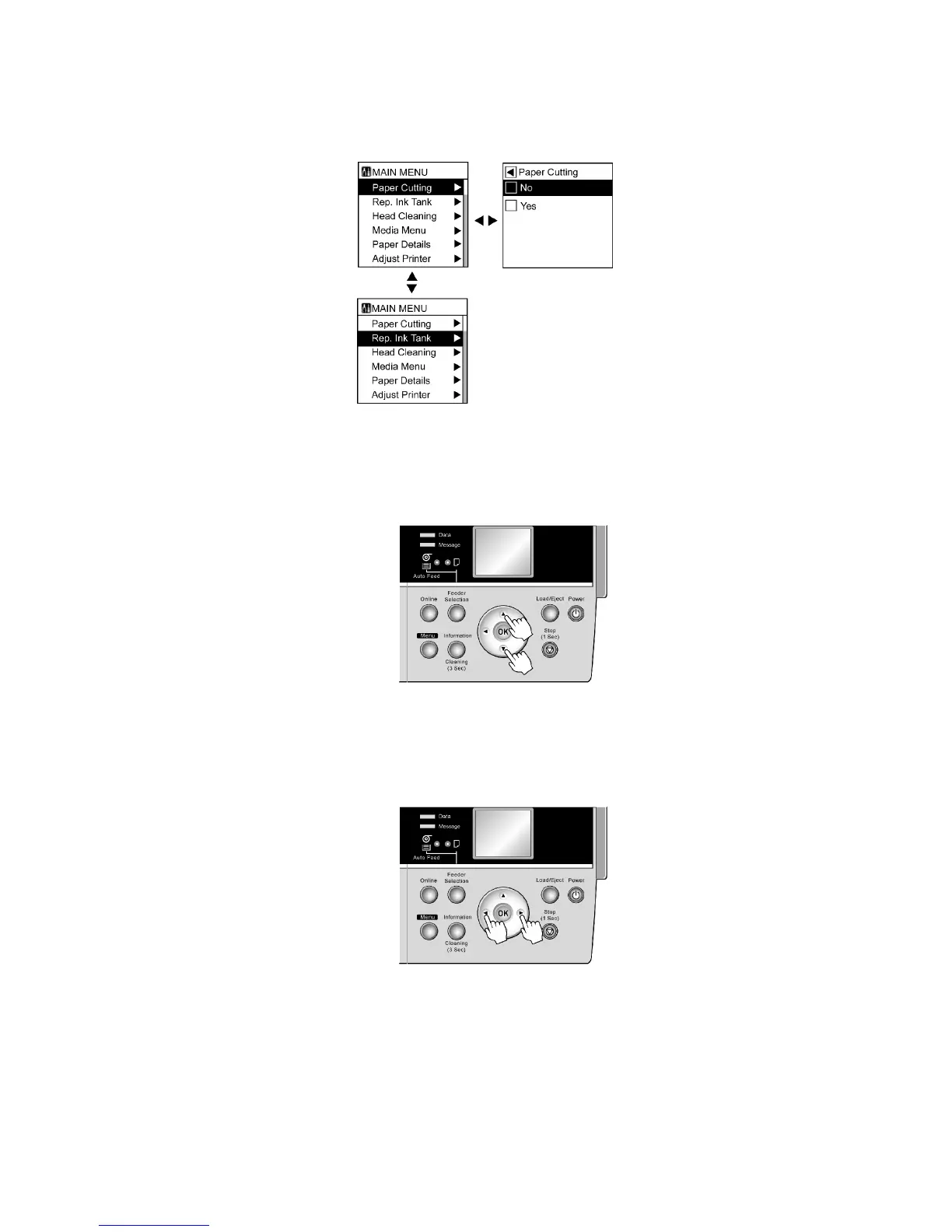

Control Panel
Accessing Menus
Printer menus are grouped by function.
Menus are displayed with the upper line selected. Use the buttons on the Control Panel to access each menu.
Press to access a higher menu in the menu list, and press to access a lower one. If items of the
menu list are more than the lines of the screen, press and to scroll the menu. If you navigate
to the lowest-level menu and press the button again, the display switches to the top-level menu
screen. If you navigate to the top-level menu and press the button again, the display switches to
the lowest-level menu screen. Items you select are highlighted.
The scroll bar at right indicates the current position in the overall menu.
The lower level menus are available if “►” is displayed at right. T o access these lower level menus,
select a menu and press .
The upper level menus are available if “◄” is displayed at left. T o access these upper level menus,
select a menu and press .
Printer Parts 31

Table of Contents

Other manuals for Canon imagePROGRAF iPF610

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Canon imagePROGRAF iPF610 and is the answer not in the manual?

Canon imagePROGRAF iPF610 Specifications

General IconGeneral
ColorYes
Printing colorsBlack, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution2400 x 1200 DPI
Media thickness1.5 mm
Maximum print size610 x 1897 mm
Maximum roll length18 m
Maximum roll diameter150 mm
ISO A-series sizes (A0...A9)A1, A2, A3
ISO B-series sizes (B0...B9)B2, B4
Maximum printable area203 mm
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, suppliesPFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
DisplayLCD
Sound power level (standby)35 dB
Sound pressure level (printing)49 dB
USB connectorUSB Type-A
USB 2.0 ports quantity1
Ethernet LAN data rates10base-T; 100base-TX Mbit/s
Ethernet interface typeFast Ethernet
Supported network protocolsIPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight77000 g
Bundled softwareimagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)6 W
Power consumption (typical)100 W
Power consumption (PowerSave)1 W
Operating temperature (T-T)15 - 30 °C
Operating relative humidity (H-H)10 - 80 %
Compatible operating systemsWindows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificatesENERGY STAR
Weight and Dimensions IconWeight and Dimensions
Size (imperial)24 \
Dimensions (WxDxH)1177 x 670 x 348 mm
