Printer parts

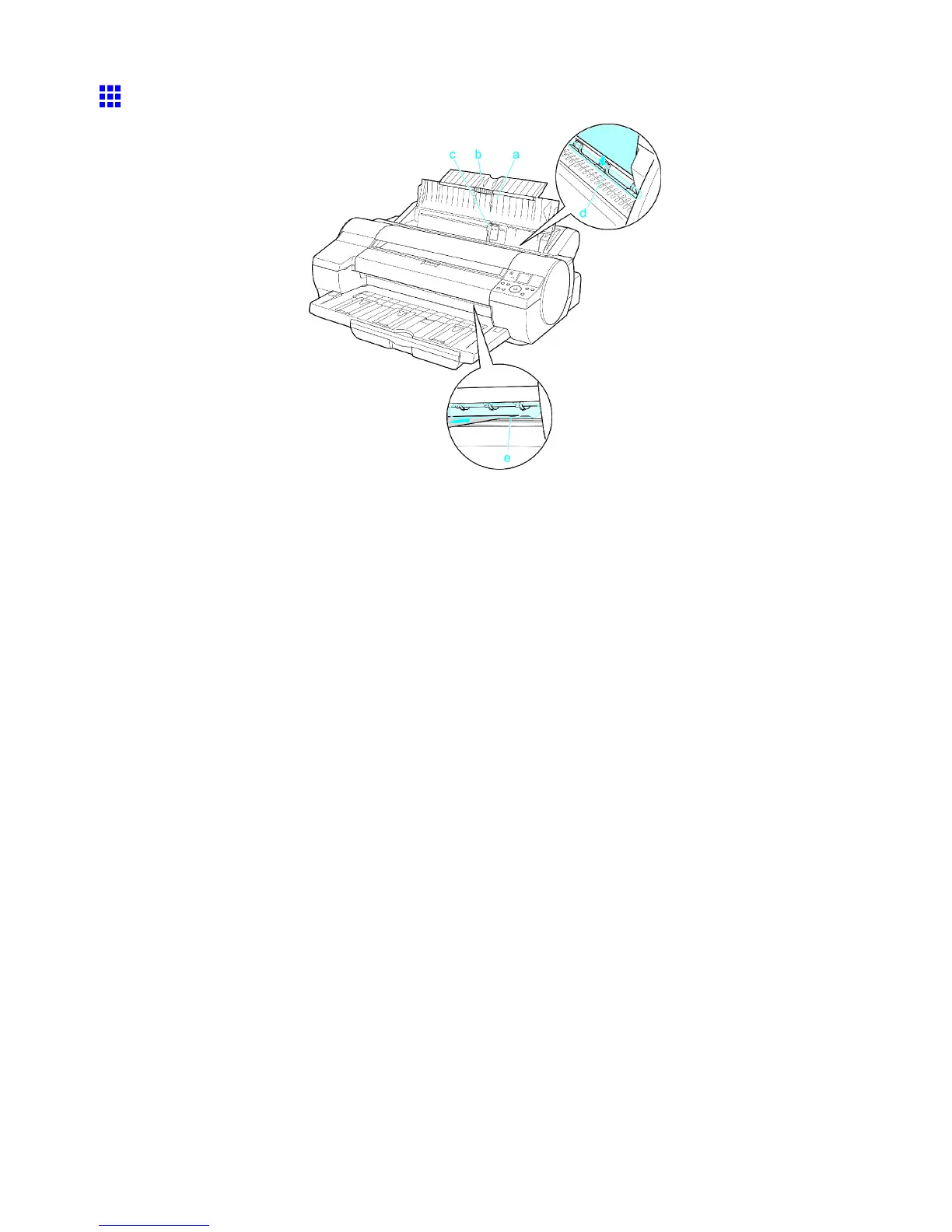

T ray Feed Area
a. T ray
Load sheets manually in this tray .
b. T ray Extension
When loading sheets, open the Paper T ray Cover before opening this tray .
c. Width Guide
When loading the sheets , move the guide to match the paper size.
d. T op Paper Feed Slot
When loading sheets, insert them here.
e. Front Paper Feed Slot ( Output T ray )
When loading heavyweight paper , insert it here. Also, all printed documents are ejected from
this slot.
12 Printer Parts
