Printer parts

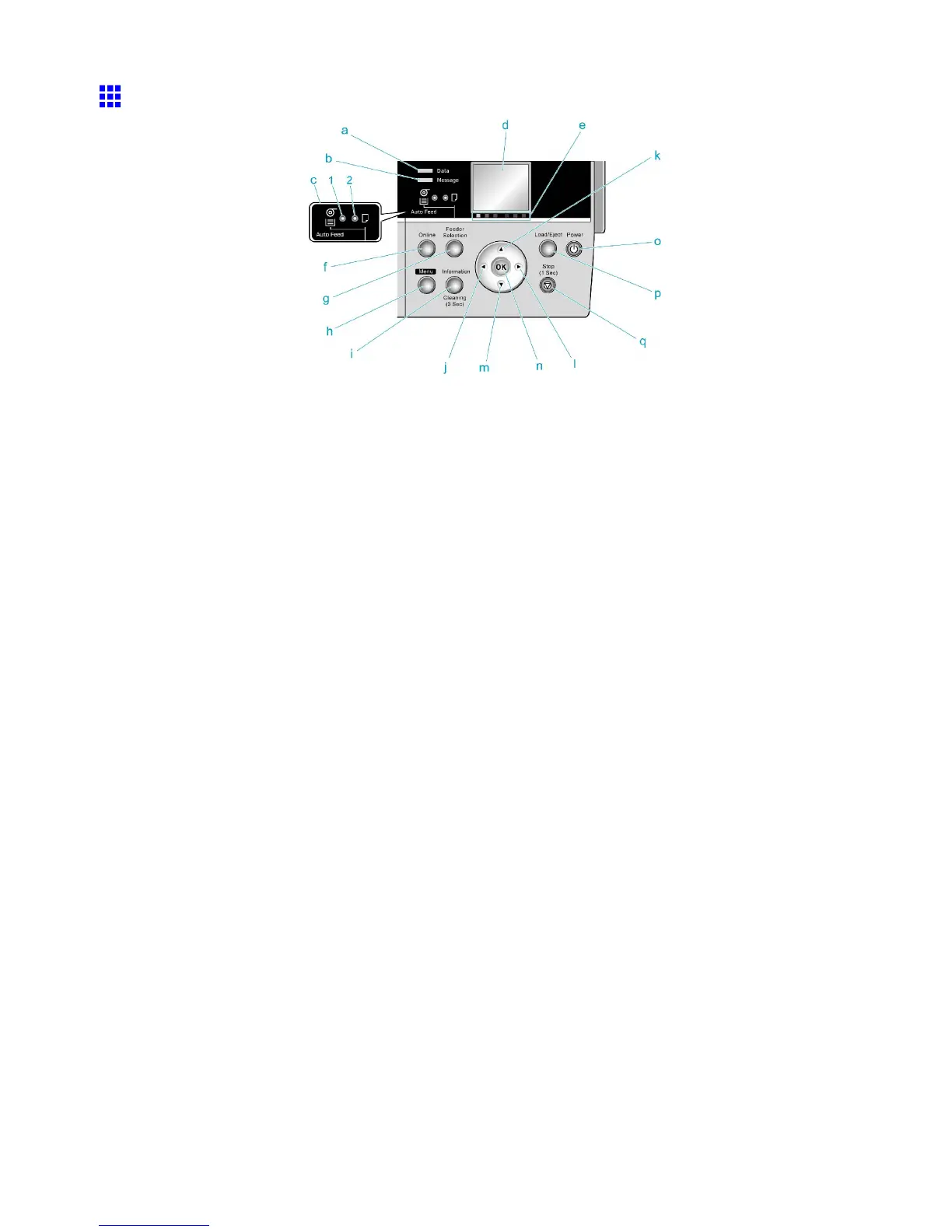

Control Panel
a. Data lamp (Green)
• Flashing
During printing, the Data lamp ashes when the printer is receiving or processing print jobs.
Otherwise, this lamp ashes when the printer is paused or updating the rmware.
• Of f
There are no active print jobs when the Data lamp is of f.
b. Message lamp (Orange)
• On
A warning message is displayed.
• Flashing
An error message is displayed.
• Of f
The printer is of f or is operating normally .
c. Paper Source Section
After you press the Feeder Selection button, the lamp for your chosen paper source is lit.
1. Auto Feed lamp (Green) ( Cassette or Rolls)
• On
Shows whether a Cassette or roll is selected as the paper source.
• Of f
Shows whether the T ray or Front Paper Feed Slot is selected as the paper source.
2. Paper T ray lamp (Green)
• On
Shows whether the T ray or Front Paper Feed Slot is selected as the paper source.
• Of f
Shows whether a Cassette or roll is selected as the paper source.
d. Display Screen
Shows the printer menu, as well as the printer status and messages.
e. Color Label
These labels indicate the Ink T ank colors and names. The labels correspond to the ink levels on
the Display Screen .
16 Printer Parts

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
