Canon imagePROGRAF iPF610 User Manual

Control Panel
Ofine, and state of the Control Panel
Of ine
Not printing Printing is paused

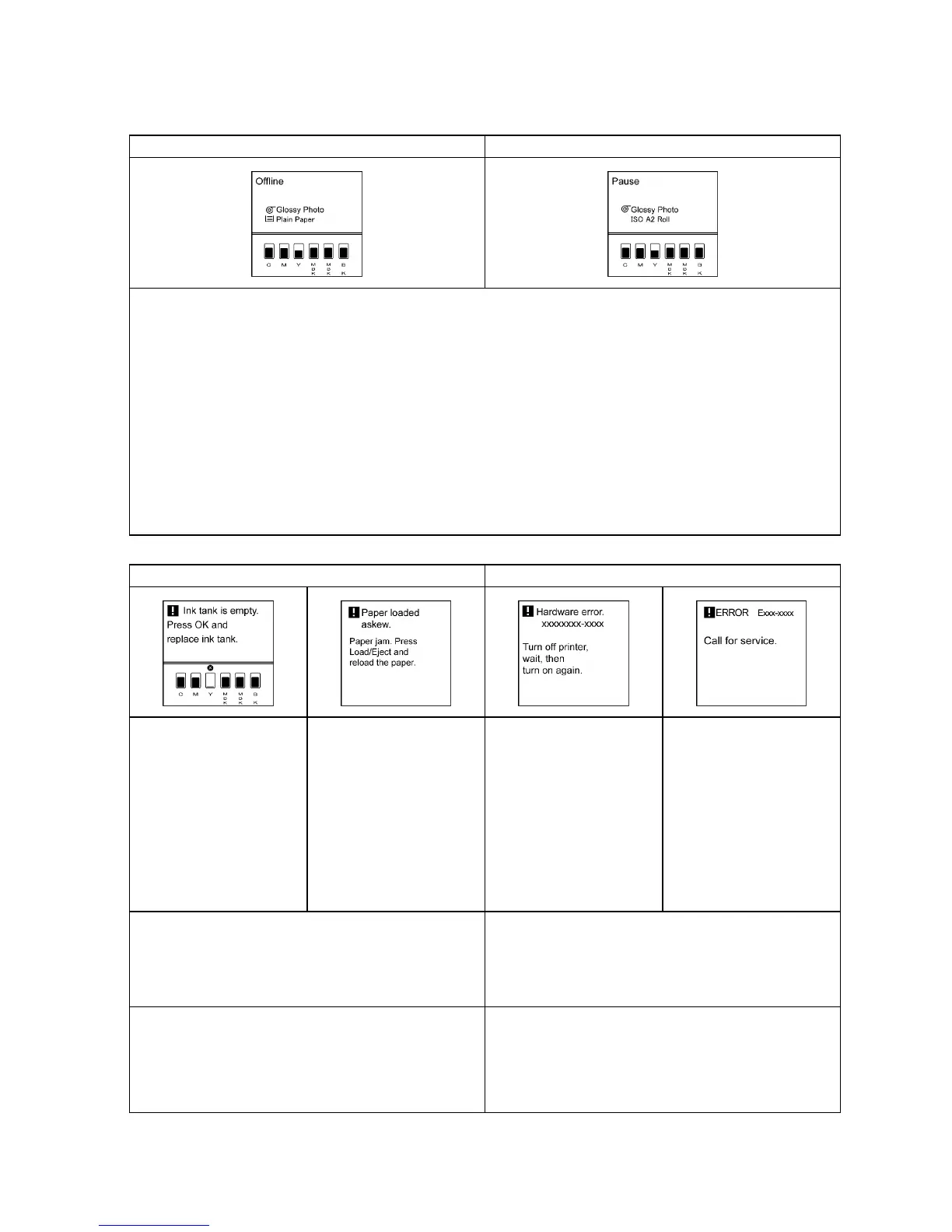

Display Screen
• Display Screen
The printer status is displayed here. The selected paper source is indicated by an icon in the upper-right
corner .
Any warning messages are displayed here on lines 2-4. T ake action as needed. ( → P .698)
• Middle Level of the Display Screen
The rst and second lines display the paper type and size.
• Bottom Level of the Display Screen
Here, the remaining ink level is indicated. ( → P .622)
Control Panel
• Message lamp
Lit when warning messages are displayed.
Error Messages
If action can be taken If no action can be taken
• T op and Middle Levels
of the Display Screen
Error messages are
displayed.
• Bottom Level of the
Display Screen
Here, the remaining
ink level is indicated.
( → P .622)
• T op and Middle Levels
of the Display Screen
Error messages are
displayed.
• Bottom Level of the
Display Screen
The corrective actions
are displayed here.
• T op and Middle Levels
of the Display Screen
The error message
is displayed with the
following instructions:
T urn off printer , wait,
then turn on again.
• Display Screen
“ERROR” is displayed,
followed by the error
code and Call for
service. .
• Data lamp
Flashes when print jobs are being received.
• Message lamp
Flashes when error messages are displayed.
• Data lamp
Flashes when print jobs are being received.
• Message lamp
Flashes when error messages are displayed.
T ake action as needed. ( → P .698) T urn of f the printer and wait at least three seconds
before restoring the power .
If the message is still displayed after this, write down
the error code and message, turn of f the printer , and
contact the Canon dealer for assistance.
24 Printer Parts

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
