Canon imagePROGRAF iPF610 User Manual

Printing banners or at other non-standard sizes

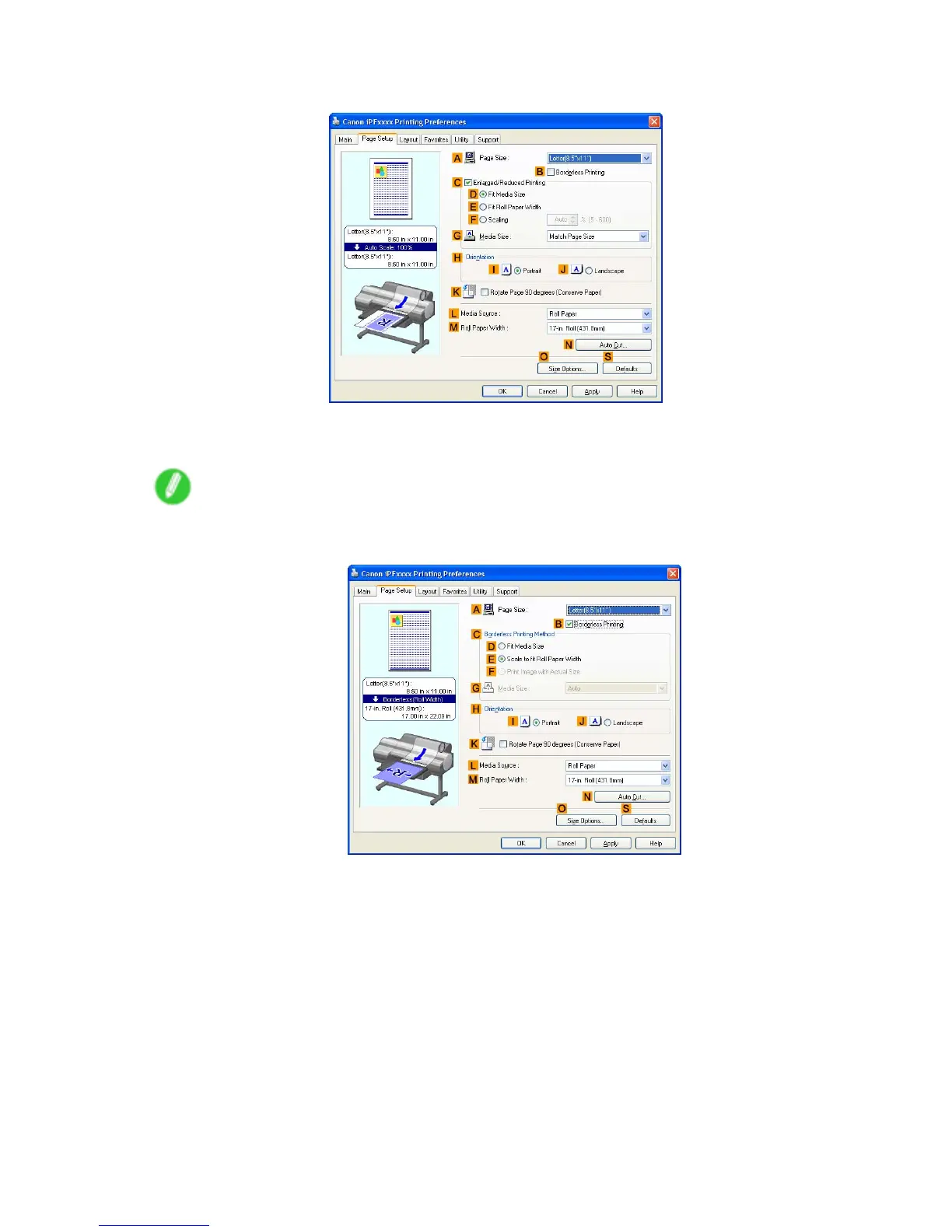

6. Click the Page Setup tab to display the Page Setup sheet.
7. In the A Page Size list, click the size you registered, "My Horizontal Banner ."
8. Select the C Enlarged/Reduced Printing check box.
Note
• If the Enlarged/Reduced Printing check box is not displayed on the Page Setup sheet, clear the
B Borderless Printing check box.
9. Click Roll Paper in the L Media Source list.
10. After you click E Fit Roll Paper W idth , the Information dialog box is displayed.
1 1. Select the width of the loaded roll in the Roll Paper W idth list. In this case, click 16-in. Roll
(406.4mm) , and then click OK .
Enhanced Printing Options 373

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
