Canon imagePROGRAF iPF610 User Manual

Mac OS 9
Mac OS 9
Printer Driver Settings (Mac OS 9)
For instructions on accessing the Mac OS 9 printer driver , refer to the following topics.
• Accessing the Printer Driver Dialog Box from Applications (Mac OS 9) (→P .550)
For information on the Mac OS 9 printer driver settings, refer to the following topics.

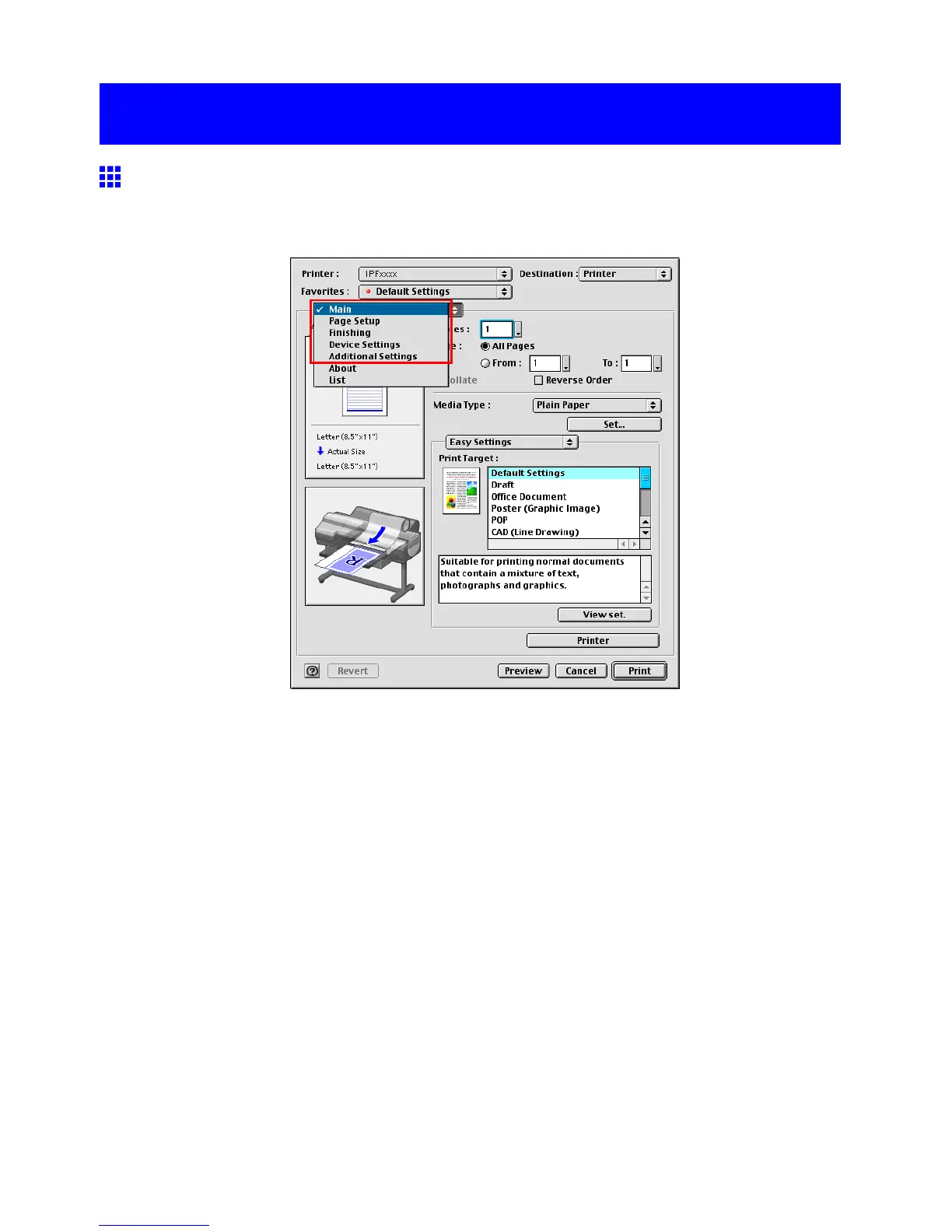

• Main Pane (Mac OS 9) (→P .538)
Y ou can specify the number of copies, page range, media type, color processing, print quality , and print
preview . Choose Easy Settings to specify basic print settings based on the printing application or
Advanced Settings to complete more detailed settings as desired.
• Media Detailed Settings Dialog Box (Mac OS 9) (→P .557)
• V iew Settings Dialog Box for the Printing Application (Mac OS 9) (→P .559)
• Color Settings Pane: Color (Mac OS 9) (→P .552)
• Color Settings Pane: Monochrome (Mac OS 9) (→P .555)
• Page Setup Pane (Mac OS 9) (→P .541)
Y ou can specify the amount of enlargement or reduction, borderless printing, media size, and page
layout.
• Finishing Pane (Mac OS 9) (→P .543)
Y ou can specify the media source, watermarks, and orientation.
• Device Settings Pane (Mac OS 9) (→P .544)
Y ou can perform maintenance for the Printhead or feed amount.
• Additional Settings Pane (Mac OS 9) (→P .545)
Y ou can specify settings for background printing, how print jobs are sent to the printer , and notication
after printing.
• Special Settings Dialog Box (Mac OS 9) (→P .558)
534 Software

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
