Canon imagePROGRAF iPF610 User Manual

Mac OS 9
Printing using the favorite
Follow the steps below to print using the favorite you have registered.
1. Select the printer in Chooser .

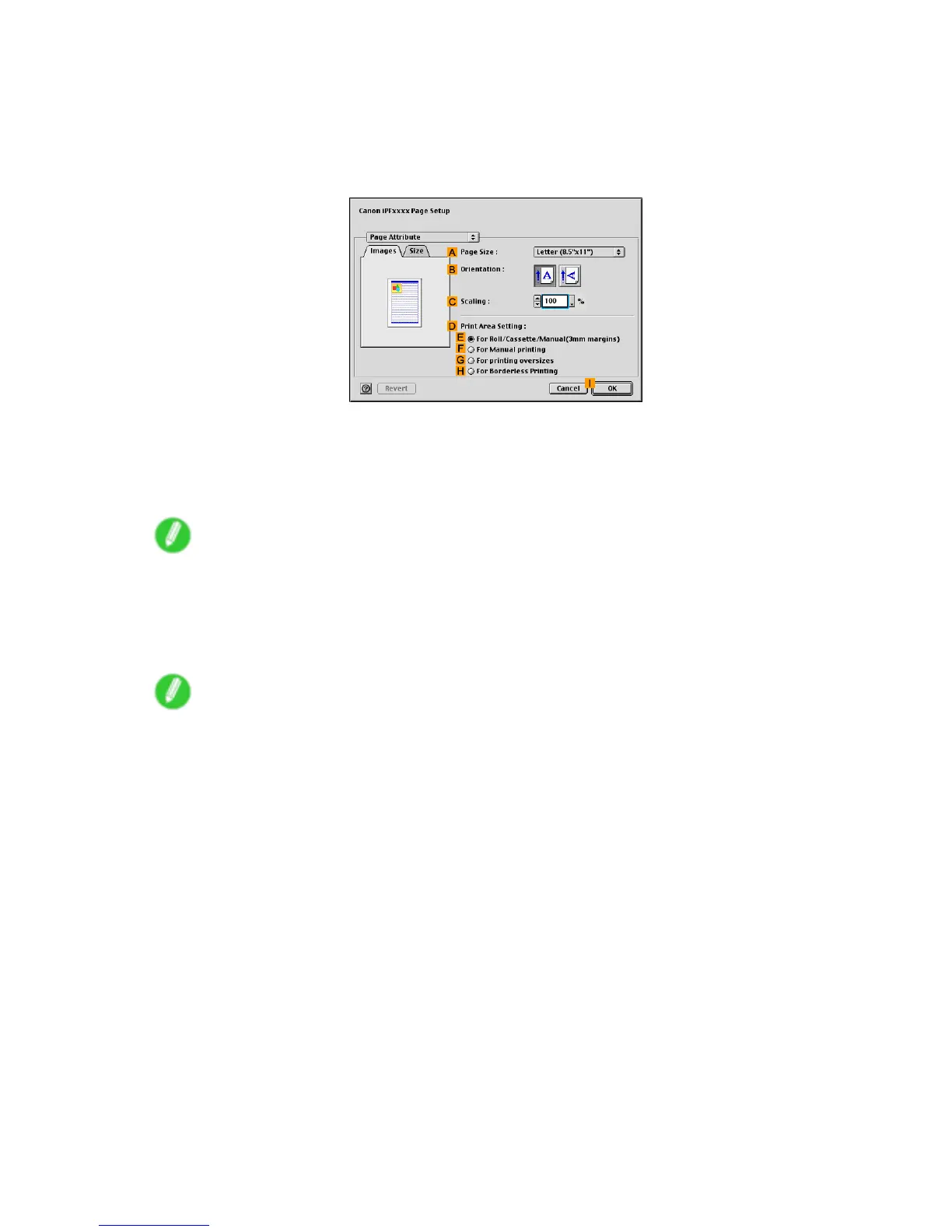

2. Choose Page Setup from the application menu to display the Page Attribute dialog box.
3. Choose the original size in the A Page Size list.
4. Click I OK to close the dialog box.
5. In the application menu, choose Print .
6. In the Favorites list, choose the favorite you registered.
Note
• T o import a favorite, click Import and specify the favorite le.
• If you select a favorite and edit it, an icon is displayed at left of the name to indicate that the settings
have been changed. For details, refer to the printer driver help.
7. Conrm the print settings, and then click Print to start printing.
Note
• For tips on conrming print settings, see “Conrming Print Settings (Mac OS 9)”. (→P .535)
Software 547

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
