Canon imagePROGRAF iPF610 User Manual

Network Setting (Windows)

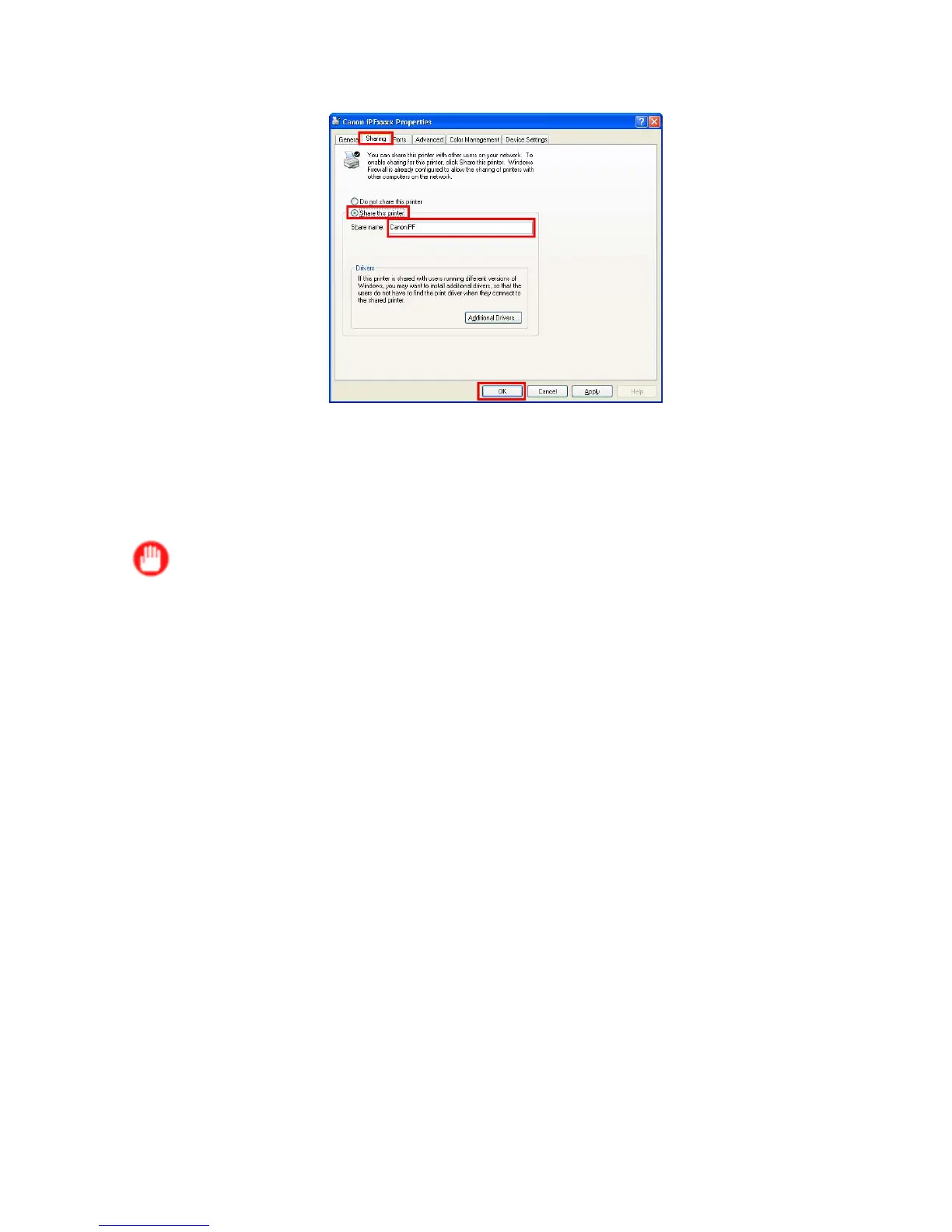

3. On the Sharing sheet, click Share this printer and enter the shared name.
4. T o print jobs from clients running other versions of Windows, click Additional Drivers and follow
the instructions to install the printer driver of the corresponding version.
If you are prompted to choose the location of the printer driver le, insert the provided User
Software CD-ROM in the CD-ROM drive and specify the folder where the printer driver is located.
5. Click OK .
Important
• When installing the printer driver on client computers, select "Network Printer" on the connection type
screen in the printer wizard, and then select the printer shared from the computer set up as the print
server .
584 Network Setting

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
