Printheads

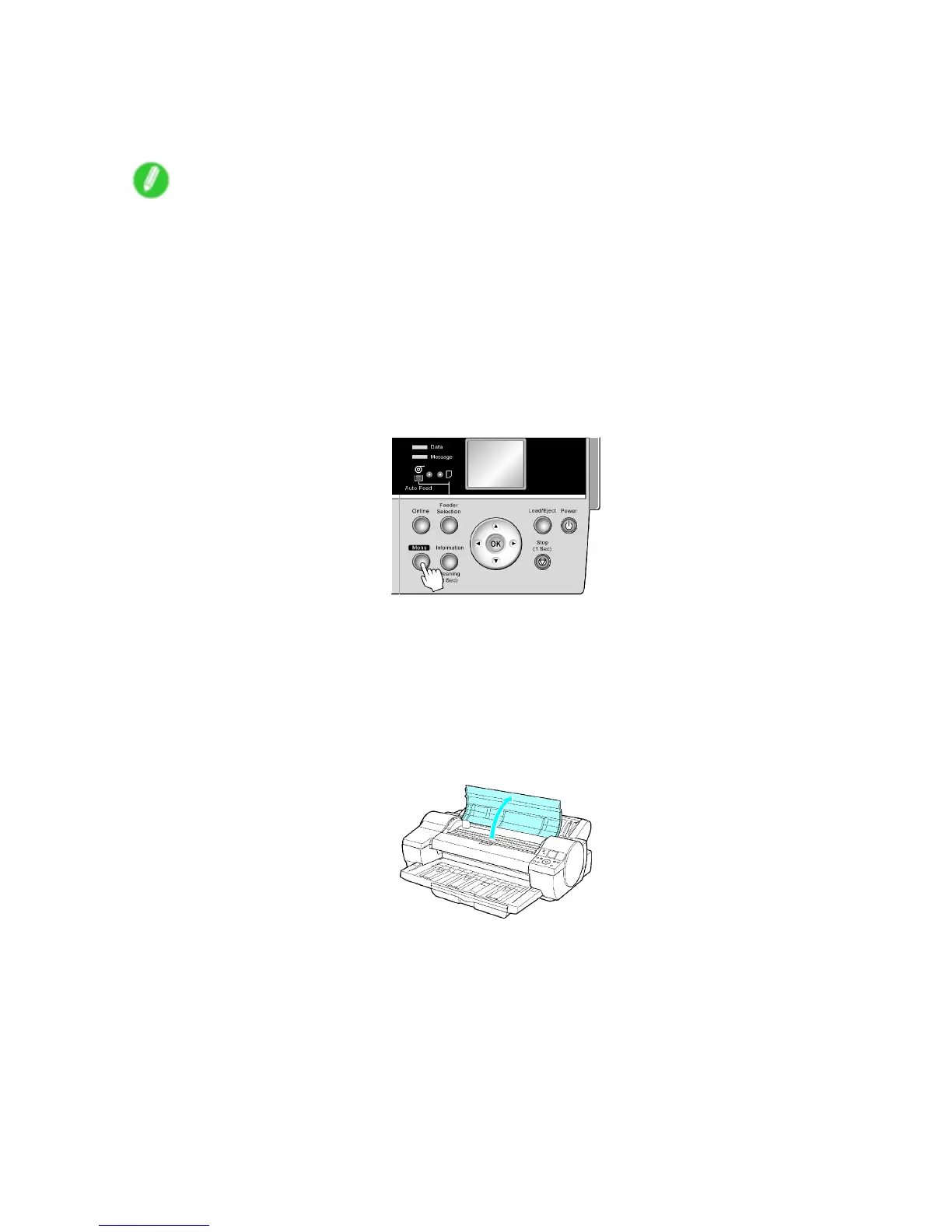

Replacing the Printhead
Follow the steps below to replace the Printhead . Failure to follow this procedure may cause ink leak from
the Printhead , which may cause stains.
Note
• Prepare a new Ink T ank when ink levels are low .
• Y our hands may become dirty during Printhead replacement. Use the gloves provided with the new
Printhead for replacement.
• Choose On in Auto Print to have the printer automatically adjust the Printhead alignment after
replacement of the Printhead . ( → P .50)
1. If the roll is not ejected because of the cutting method selected, cut it manually and remove it.
( → P .449)
2. Clean inside the T op Cover . ( → P .644)
3. Press the Menu button to display MAIN MENU .
4. Press ▲ or ▼ to select Maintenance , and then press the ► button.
5. Press ▲ or ▼ to select Replace P .head , and then press the ► button.
6. Press ▲ or ▼ to select Y es , and then press the OK button.
Ink is now lled.
After about three minutes, a message is shown on the Display Screen instructing you to open
the T op Cover .
7. Open the T op Cover .
Instructions are now shown on the Display Screen regarding Printhead replacement.
628 Maintenance

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
