Maintenance Cartridge
Replacing the Maintenance Cartridge
1. Make sure no print jobs are in progress.

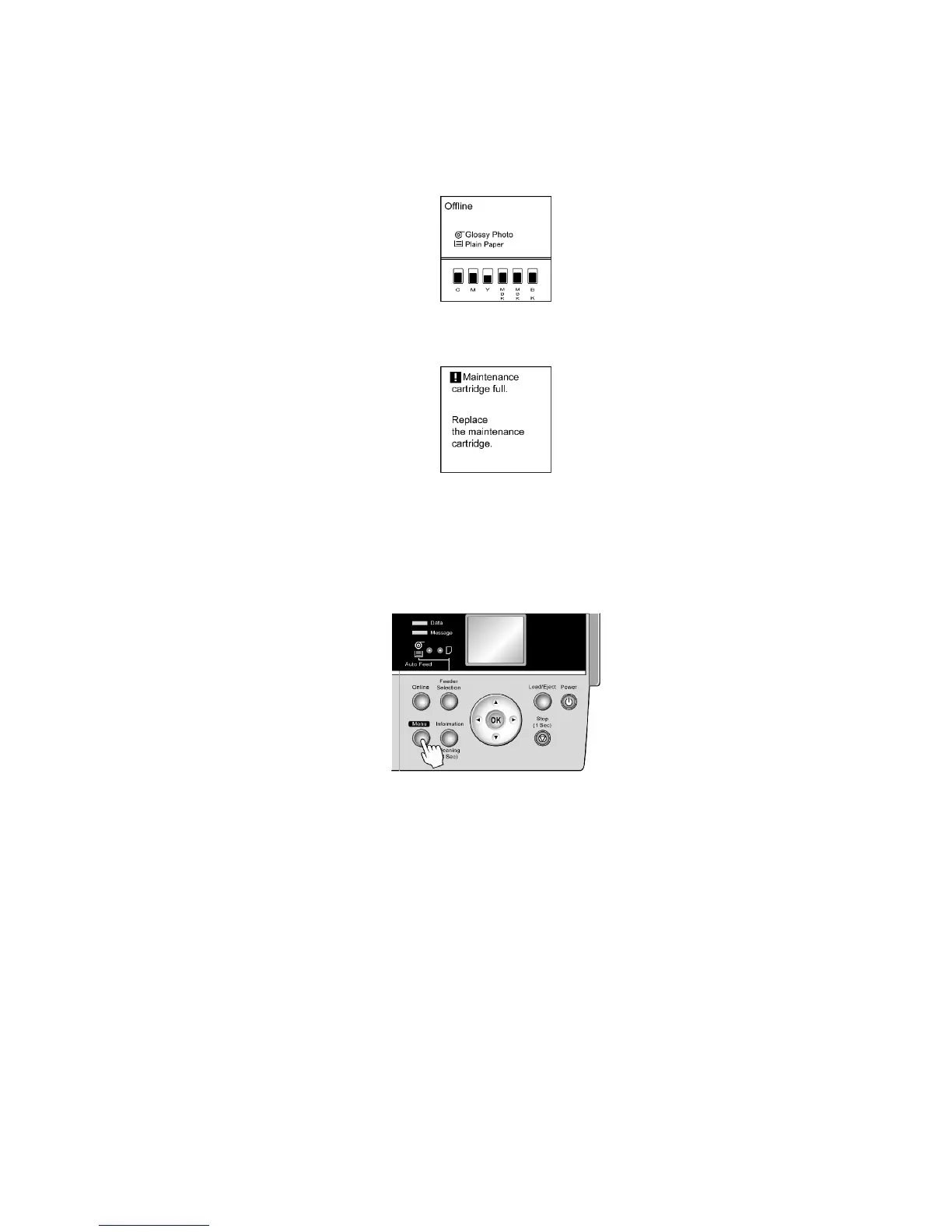

Y ou can replace the Maintenance Cartridge if the Display Screen indicates the printer is Ofine
or if messages advise you to replace the Maintenance Cartridge .
If a message prompts you to replace the Maintenance Cartridge , press the OK button. Steps 2-5
are unnecessary in this case. Go to step 6 and remove the Maintenance Cartridge .
Do not replace the Maintenance Cartridge during initialization immediately after turning on the
printer , during Printhead cleaning, or while ink is being lled.
If you pause printing to replace the Maintenance Cartridge , it may cause the printed images to
be blurry .
2. Press the Menu button to display MAIN MENU .
3. Press ▲ or ▼ to select Maintenance , and then press the ► button.
4. Press ▲ or ▼ to select Repl. maint cart , and then press the ► button.
5. Press ▲ or ▼ to select Y es , and then press the OK button.
Maintenance 635

Canon imagePROGRAF iPF610 Specifications

General

Color	Yes
Printing colors	Black, Blue, Cyan, Green, Magenta, Pigment cyan, Pigment magenta, Red, Yellow
Maximum resolution	2400 x 1200 DPI
Media thickness	1.5 mm
Maximum print size	610 x 1897 mm
Maximum roll length	18 m
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Maximum printable area	203 mm
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Compatible ink types, supplies	PFI-101 (130ml, C, M, Y, PC, PM, R, G, B), PFI-103 (130ml, BK, MBK, GY, PGY)
Display	LCD
Sound power level (standby)	35 dB
Sound pressure level (printing)	49 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10base-T; 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX (Netware 3.2(J), 4.1 (J), 4.11(J), 4.2(J), 5.0(J), 5.1(J) SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
Package weight	77000 g
Bundled software	imagePROGRAF Printer Driver 2007 (Win/Mac), imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in f/ Photoshop Print Plug-in f/ Digital Photo Pro Digital Photo Front-Access
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Power consumption (PowerSave)	1 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows 2000, XP, Vista 32 bit/64 bit Macintosh OS 9, OS 10, Leopard
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Size (imperial)	24 \
Dimensions (WxDxH)	1177 x 670 x 348 mm
