5-TRANSPORTOPERATIONS

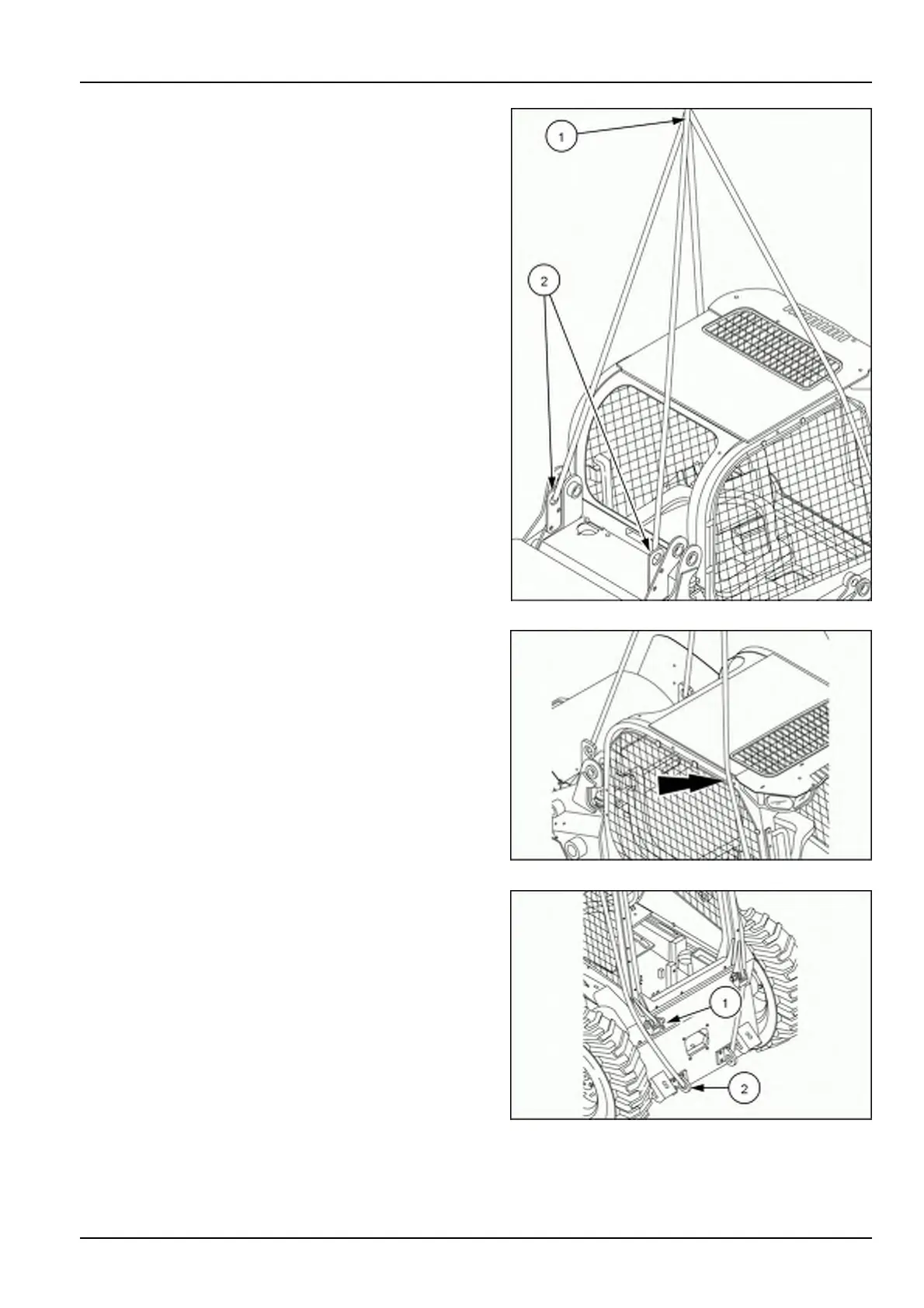

1.Connectallslingstoasinglepoint(1)onthesuitable

craningequipmentabovethecab.

2.Attachchainstothemachine’srearliftingpoints(2)on

themachine.

RAIL14SSL0402BA18

3.Routethefrontslingdowntheright-handsideofthe

RollOverProtectiveStructure(ROPS).

RAIL14SSL0401BA19

4.RoutethefrontslingdowntheoutsideoftheROPS

frontpivotpoint(1)andattachtothemachine’sright-

handsideliftingpoint(2).

5.Repeatontheleft-handsideofthemachine.

6.Clearthearea.

7.Liftthemachinejustofftheground.Themachine

shouldstaylevel.Ifitisnotlevellowerthemachine

tothegroundandadjustthelengthoftherearchains.

Repeatuntilyouachievealevellift.

RAIL14SSL0400BA20

5-9
