2-SAFETYINFORMATION

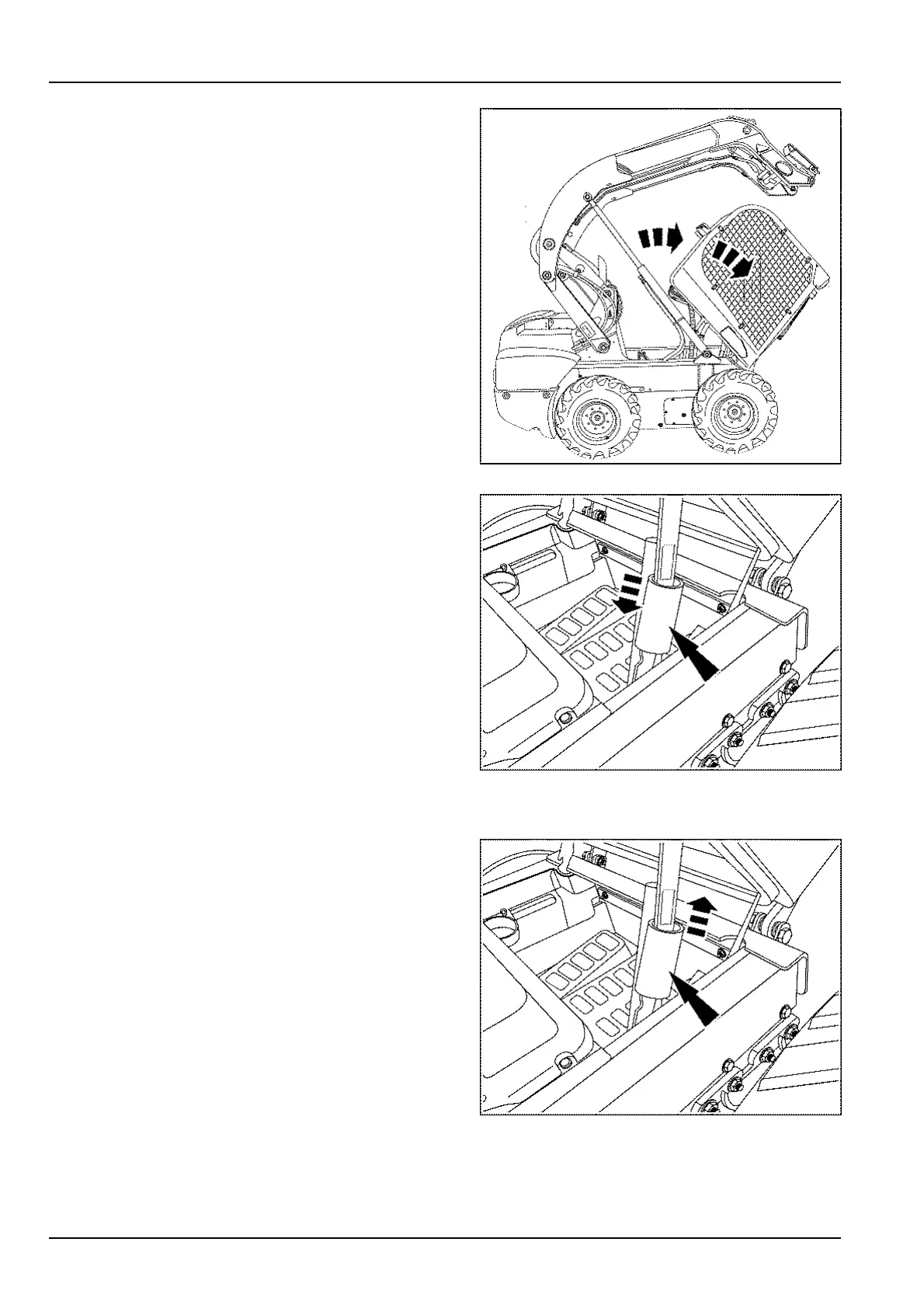

2.Pullonthehandholdsatthefrontofthemachineuntil

thecabiscompletelytiltedforward.

RAPH11SSL0016BA7

3.Conrmthattheredlocktubehasloweredoverthe

cabpivotlinkage.Ifithas,thecabtiltpositionisnow

secure.

RAPH12SSL0420BA8

Tiltandsecurethecabformachineoperation

1.Raisetheredlocktubeexposingthecabpivotlinkage.

2.Pushthecabbackwardintotheoperationposition.

RAPH12SSL0420BA9
