7-MAINTENANCE

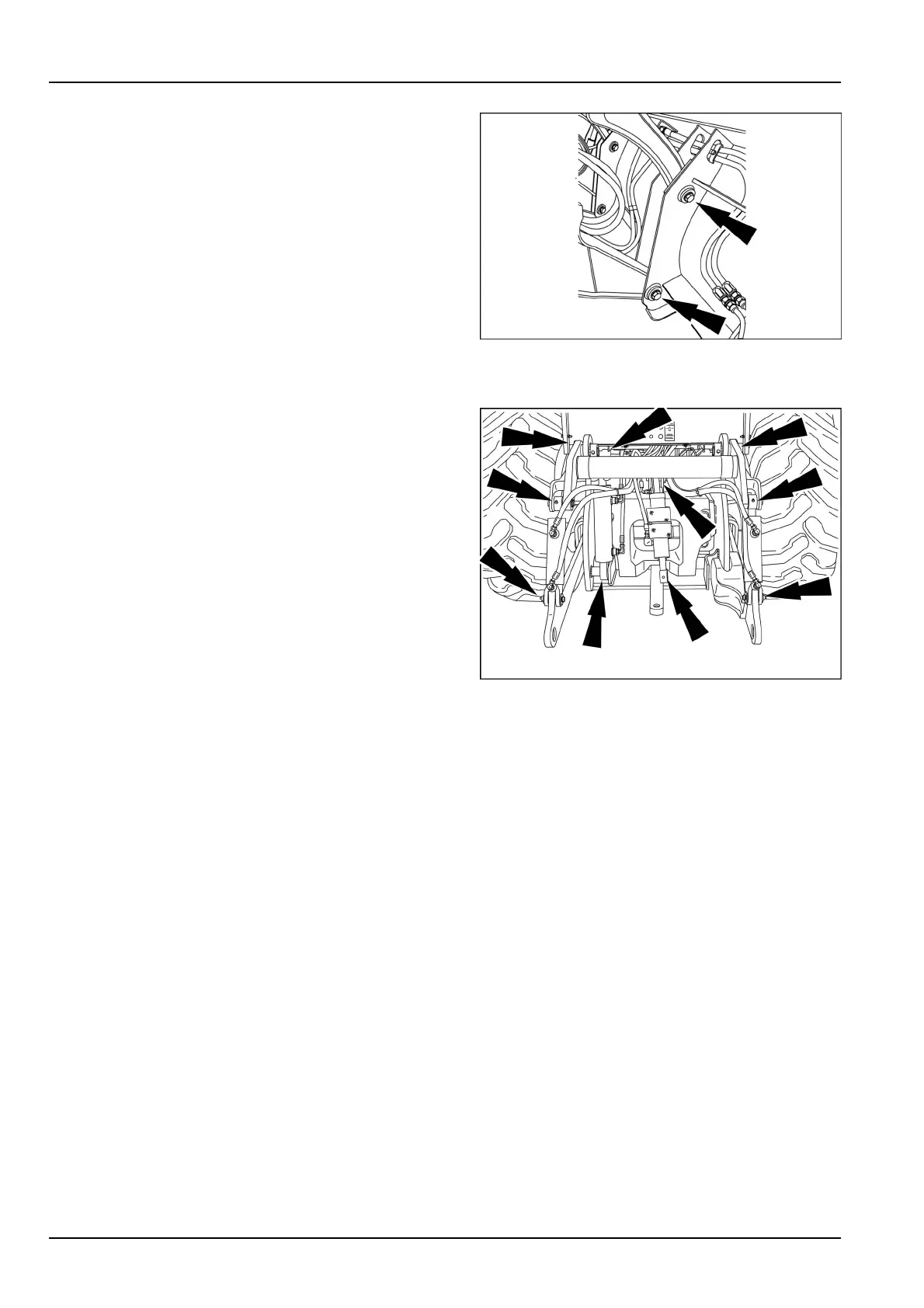

6.Bucketpivots-Fourtotal,twooneachside

RCPH10TLB389AAF7

Threepointhitch

7.Greaseallttingsonthethreepointhitch.

•

Tenttingsonthedualtiltcylinderthreepoint

hitch(shown)

•

Eightttingsforstandardthreepointhitch

RAPH12UTL0051AA8

7-40
