Casio QT-6000 Service Manual

— 105 —

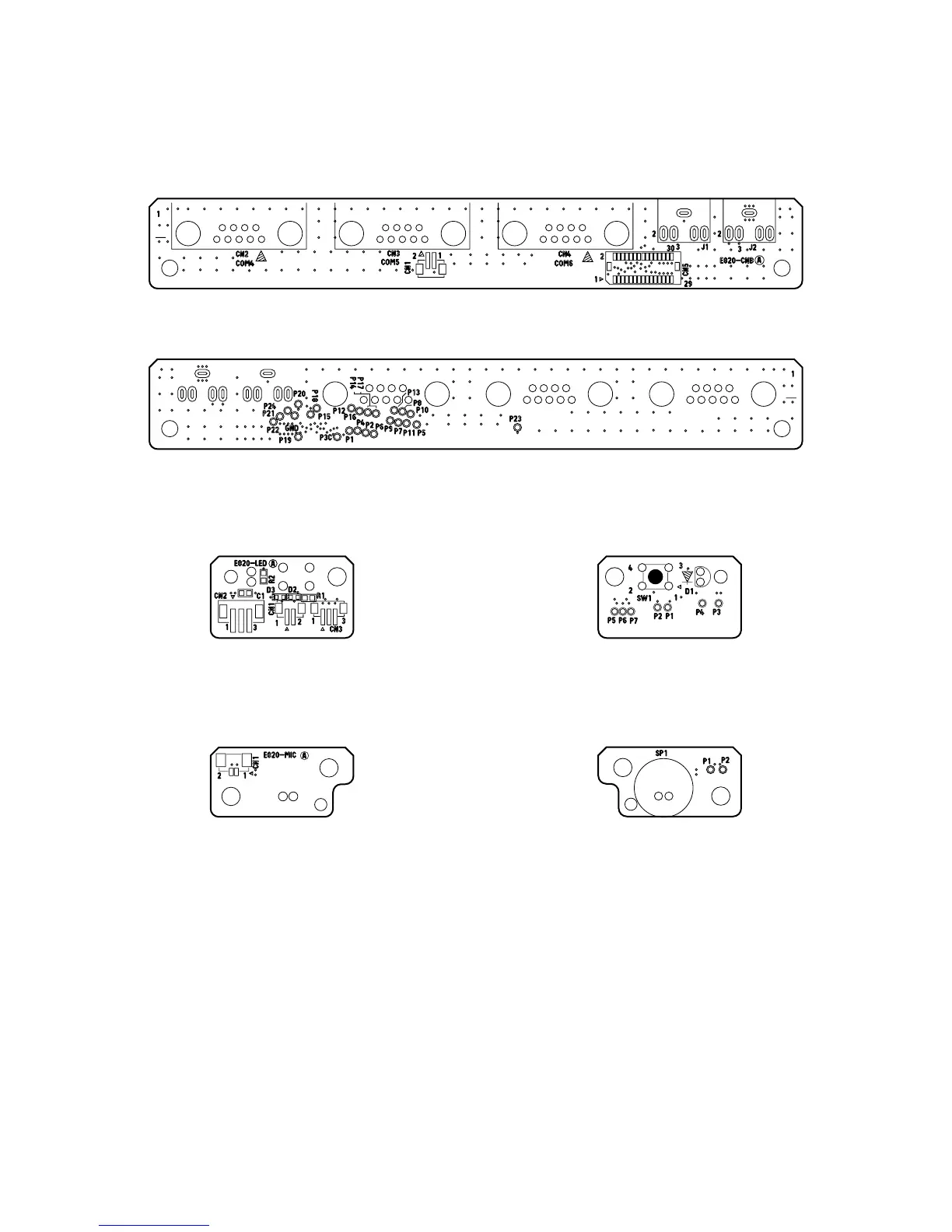

INTERFACE PCB (E820-CNB PCB)
(TOP VIEW)
(BOTTOM VIEW)
LED PCB (E820-LED PCB)
(TOP VIEW) (BOTTOM VIEW)
MIC PCB (E820-MIC PCB)
(TOP VIEW) (BOTTOM VIEW)

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
