54
—

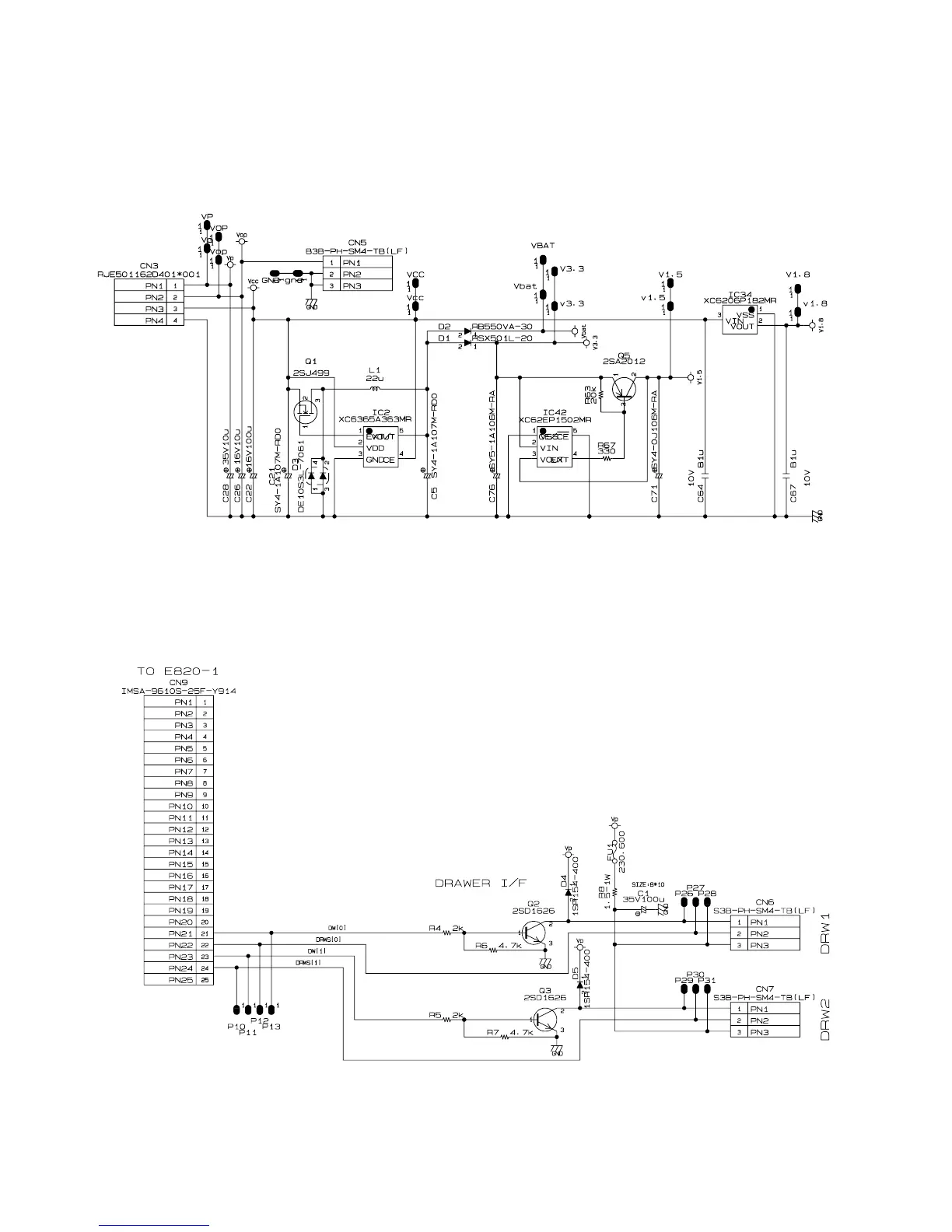

8-5. POWER SUPPLY CIRCUIT 2
VBAT (DC 3.3V) For the battery
V1.5 (DC 1.5V) For the CPU core
V1.8 (DC 1.8V) For the PCMCIA core
The power supply circuit is as follows.
8-6. DRAWER I/F CIRCUIT
The drawer open circuit is as follows.
55
