INIT
Copyright(C)2004
CASIO COMPUTER CO.,LTD. C
All rights reserved.
ROM VER xxxxxx xxxx
789
CREATE xxxx-xx-xx xx:xx
QT-6000 Version x.xx 456
APL VER. xxxxxx xxxx
123
0
OK
Init Sw
7. DIAGNOSTIC OPERATION
7-1. To start the diagnostic program
(1) Turn the power off.
(2) Turn the power on while pressing the INIT switch.

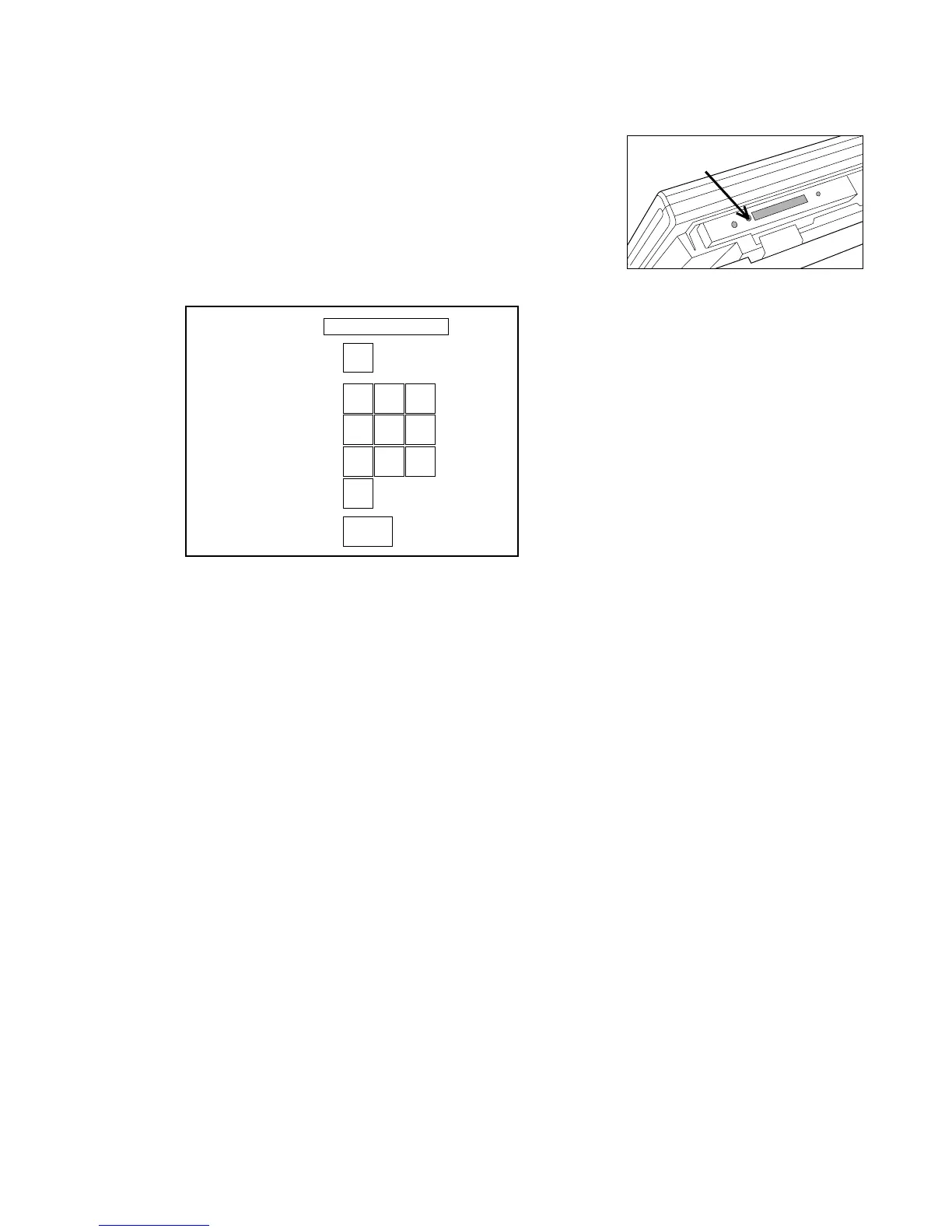

(3) Release the switch when the display shown below appears.
* Operation is not guaranteed if the switch is released before the display appears.
(4) Enter 99990000 and then [OK].
(5) LCD calibration test starts automatically.
Refer to "[ 12 ] LCD calibration test" for the operation details.
7-2. Notes for the DIAG
• Make sure the printer used to print out test results is set to a baud rate of 9600 bps and is connected
to COM4.
• Perform testing by connecting HHS-15 to COM2.
• Always make sure to connect REMOTE DISP to COM3.
• When desiring to conduct a test for an unlimited number of times, enter a value other than 0 in
accordance with the explanation for each test. Tests are performed for an unlimited number of times
when a value of 1 through 9 is entered for the commend used to specify the number of times testing
is performed in the operating procedure on each page. However, this function allows a test to only
be performed once or for an unlimited number times.
[Procedure and Display for Operator-Evaluated Tests]
• In operator-evaluated tests, the results for that test are determined according to the OK and NG keys
after the following display appears.
[OK] key: Register 1 [NG] key: Register 9
• A display that excludes the following display is shown for the LCD display of each test.
| Please Hit Key OK-> 1 NG-> 9 |
[Other]
* ESC printout and display contents for forced termination of a test by ESC are as shown below. This
display and printout are omitted in each test.
| ESC |
* That following printing of test results is omitted.
