Casio QT-6000 Service Manual

— 126 —

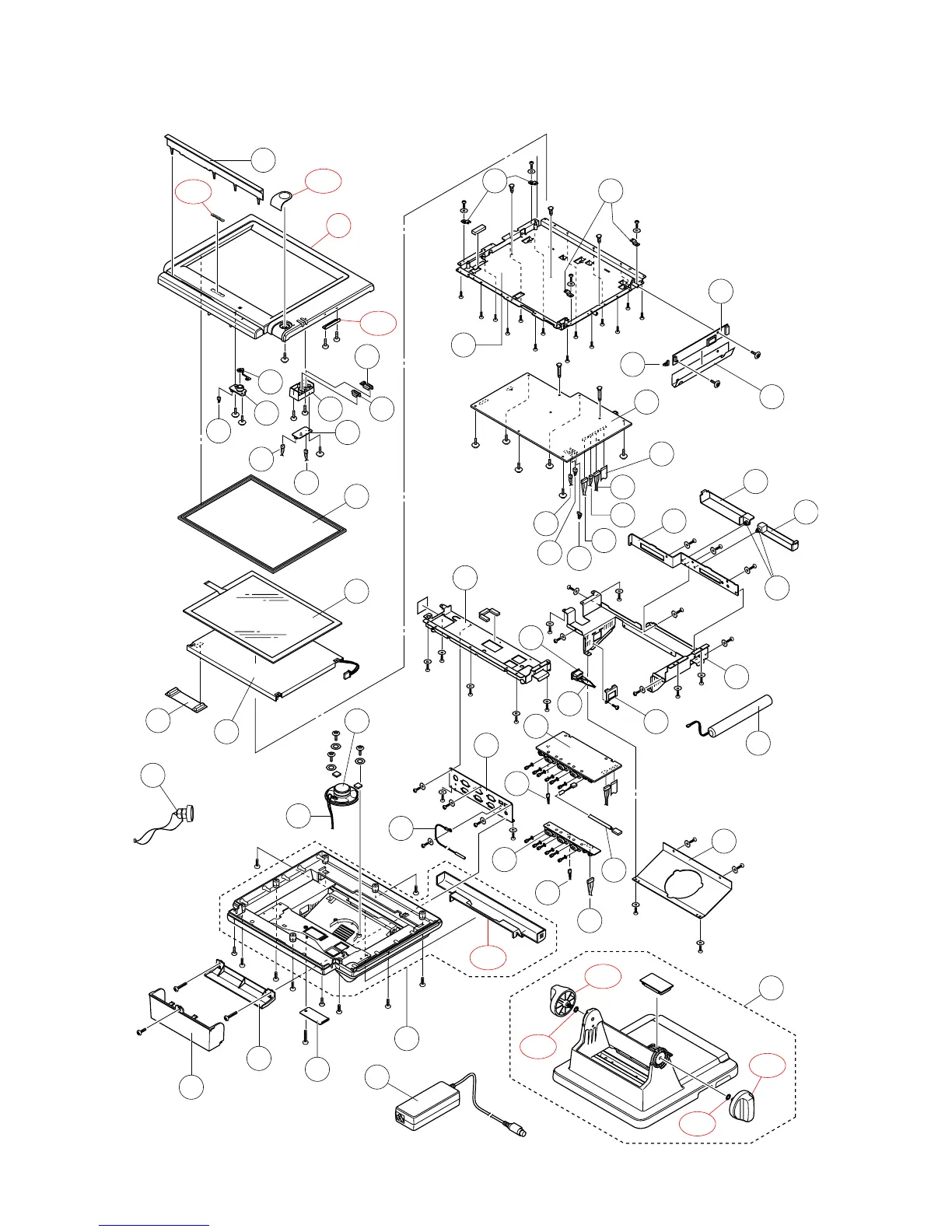

EXPLODED VIEW (QT-6000)
10-2
48-2
48-2
48-1
48-1
49
47
43
39
39-1
50
30
36
41
48
38
37
23
36
25
20
28
21
18
35
22
40
19
25
24
30
6
29
45
33
44
46
34
31
27
26
32
5
29
1
3
3
2
17
10
14
10-3
10-1
42
11
12
16
13
26
27
15
32
8
9
7

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
