Casio QT-6000 Service Manual

— 2 —
1-5. I/O Ports
COM port (D sub 9pin) x 6
LAN port (Ethernet 10BASE-T/100BASE-TX) x 1
PC CARD slot x 1
CF CARD slot x 1
Drawer port x 2
External speaker jack x 1 (ø3.5 mono)
External microphone jack x 1 (ø3.5 mono)
• LCD Display Name NL8060BC31-27
Size 12.1 inch SVGA TFT panel
Resolution 800 x 600
Interface CMOS 6 bits
Colors 262,144 colors
• Touch Panel Name N010-0550-T711
Size 12.1 inch
• Panel brightness control 1 x VR controller
• Speaker 0.5 watt x 1
• Microphone Mini electret condenser microphone "EM100TW-ER"
• Power supply External adaptor "ADP820AA"
• Cleck key Magnetic ibutton prove "94-J-04"

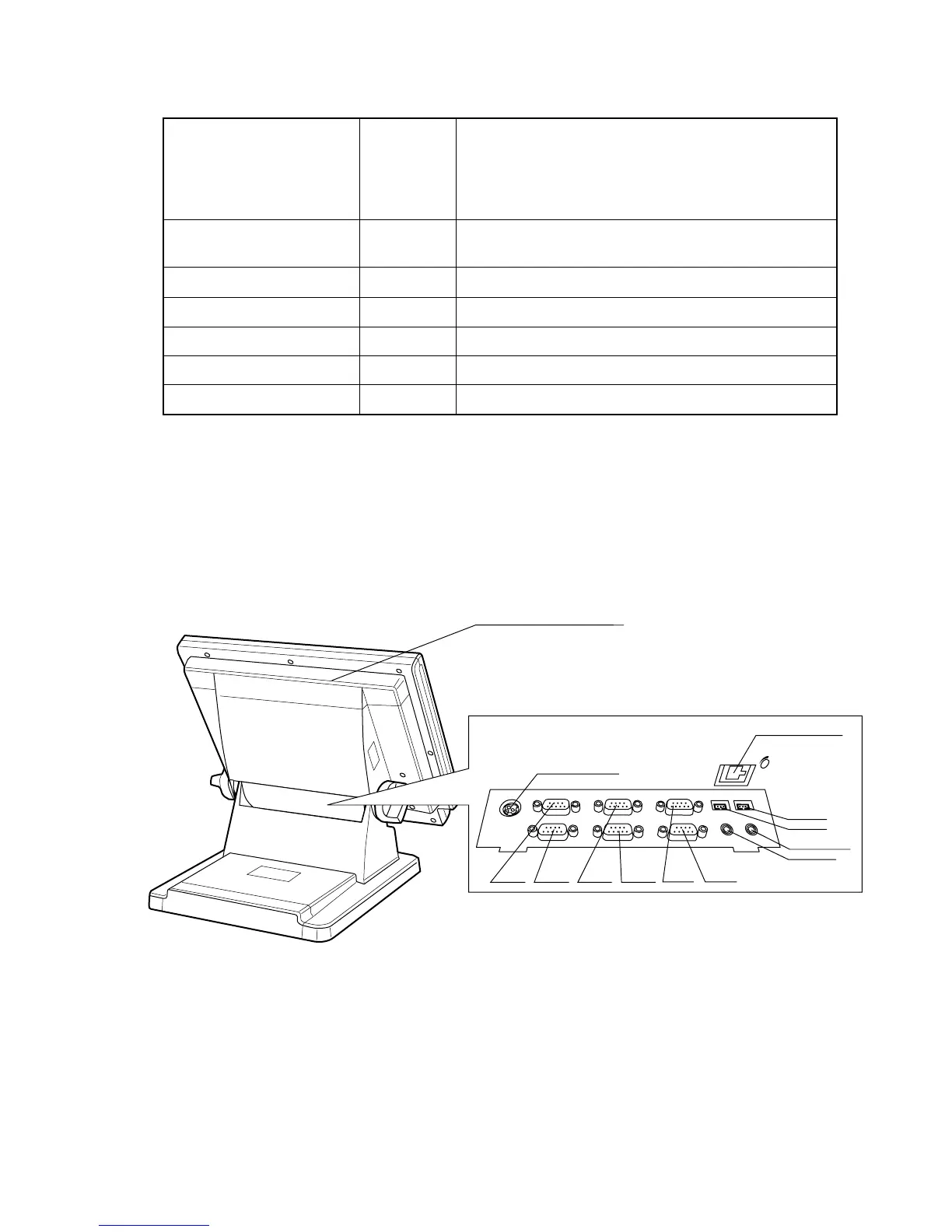

1-4. Devices specifications
Card slot cover
PC CARD slot, CF CARD slot
DC IN
PC/MODEM SCANNER DISPL
AY
DRW
1
DRW2
COM1
COM4
COM2
COM5
COM3
COM6
SPK
MIC
LAN1
VOL
COM1 COM4 COM2 COM5 COM3 COM6
From the AC adaptor
Inline (10/100Base-T)
Drawer 2
Drawer 1
Ext. microphone
Ext. speak
er

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
