Casio QT-6000 Service Manual

— 42 —
[ 17 ] RS232C PORT batch test
[Function]
This is the RS232C port batch test.
The loop back test for RS232C port is performed by making the connection shown in the figure.
The loop back test is performed from COM1 to COM 6 by the following setting by one time check.
When performing this test, fix loop back connectors to all COM ports.
[Operation]
Operation : 4 0 ST
Baud rate: COM1: 115 kbps, COM 2 – 6 : 9600 bps
Check time: one time
[LCD]
COM BATCH 40
RTS1=1  CTS1=1 OK
DTR1=1  DSR1=1 OK
DTR1=1  CD1=1 OK
DTR1=1  CI1=1 OK
RTS1=0  CTS1=0 OK
DTR1=0  DSR1=0 OK
DTR1=0  CD1=0 OK
DTR1=0  CI1=0 OK
TxD  RxD OK
RTS2=1  CTS2=1 OK
DTR2=1  DSR2=1 OK
DTR2=0  CD2=0 OK
DTR2=0  CI2=0 OK
TxD  RxD OK
•
•
•
END 40
COM 1 test result
COM 2 test result
TxD
RxD
CTS
RTS
DTR
DSR
CD
CI
TxD
RxD
CTS
RTS
DTR
DSR

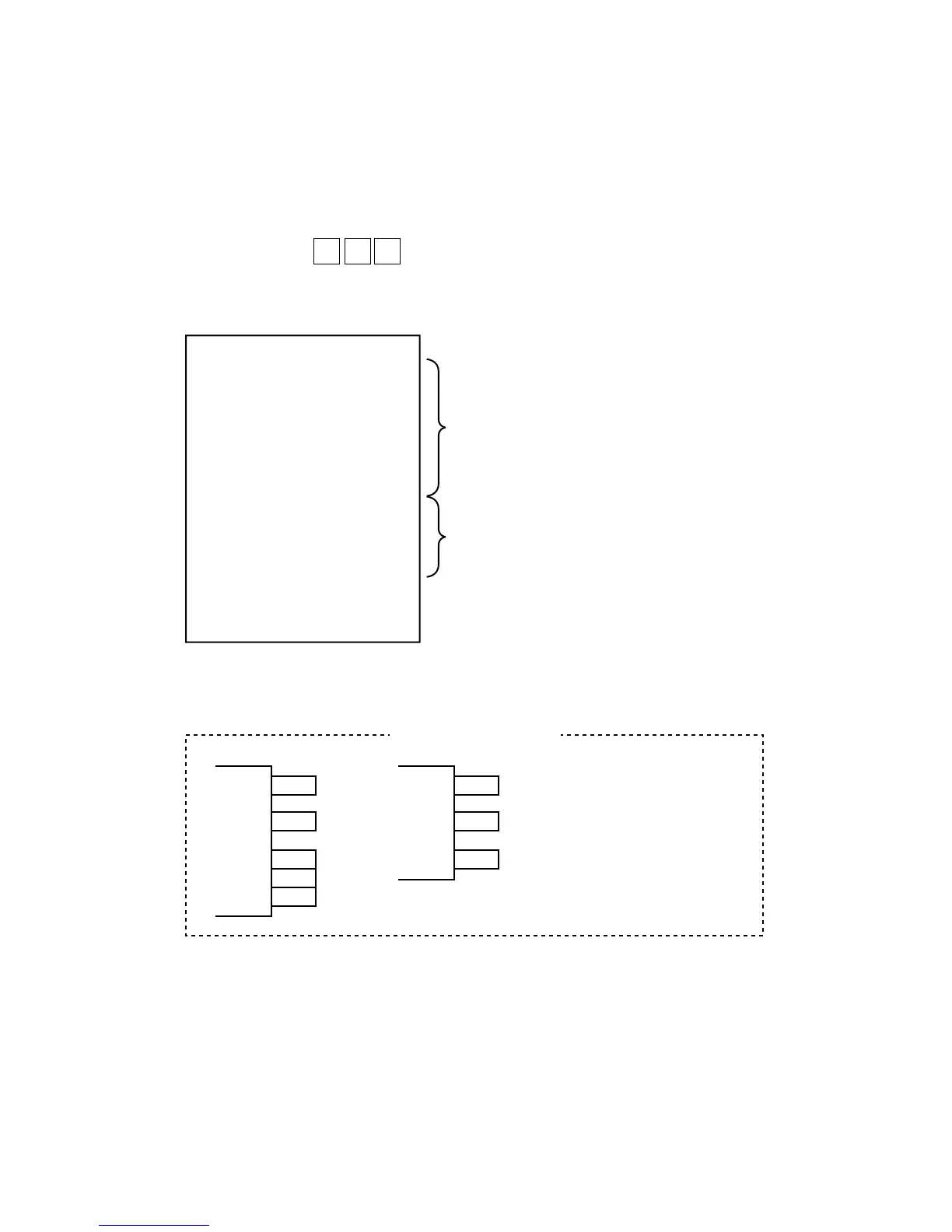

COM1 COM2앑COM6
∗∗
∗
∗
: output “1”  “0” from the output terminal and checks the input terminal.
∗
Figure : RS232C port connection
The same display for COM2 appears for COM3 to COM6.
Note that the actual display shows only a part of the results (not the whole as shown in the left).

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
