Casio QT-6000 Service Manual

— 25 —

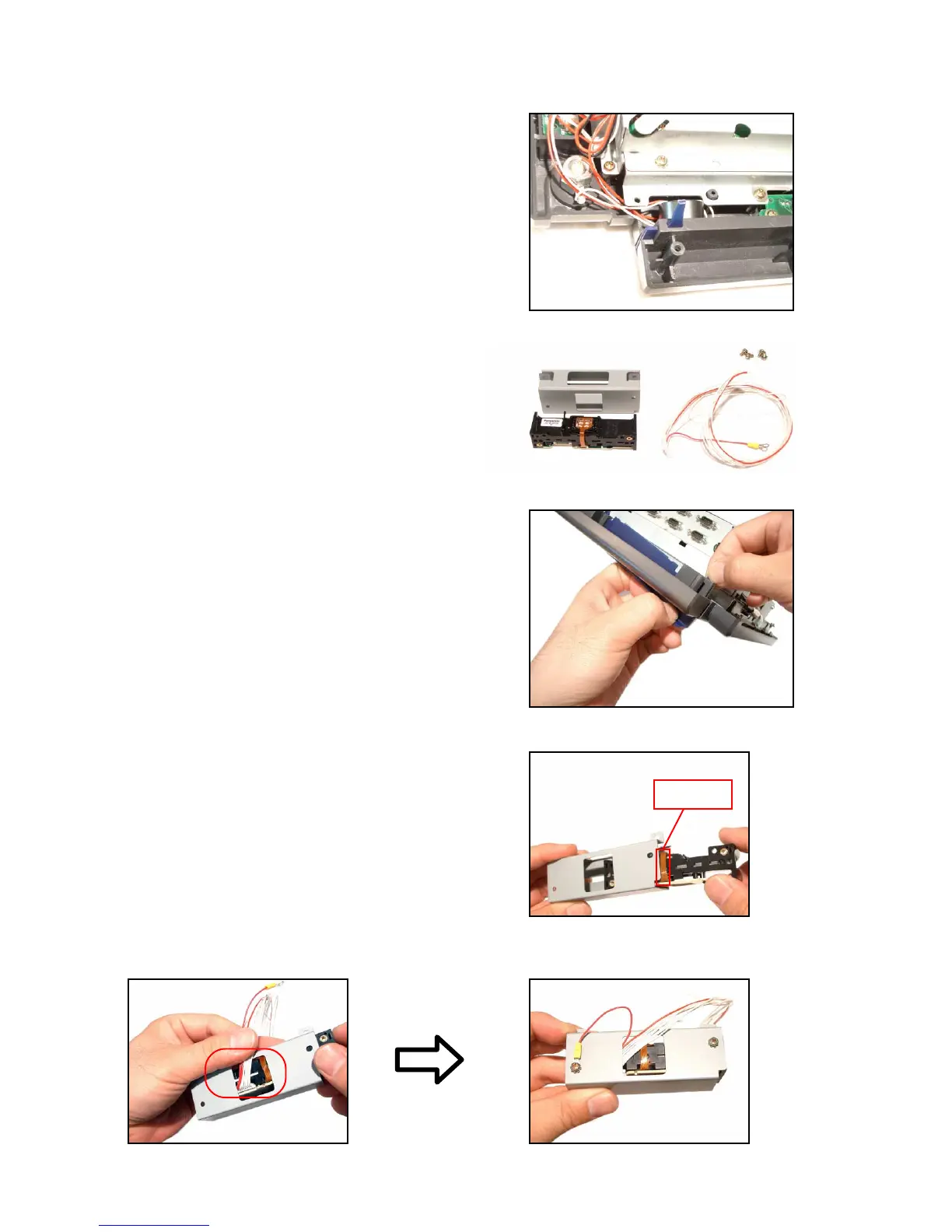

1. Remove the REAR COVER for QT-6000 (No.1 to No.10 in the disassembly procedure).
2. Remove the packing from the main unit.
3. Insert the MCR into the special metal bracket.
NOTE: Be careful not to damage the FPC.
4. Connect the connector and fix the metal bracket with two screws.
NOTE: The lead wires should be stored neatly in a line.
FPC
6. Store the core in the main unit, and then fix it with fabric tape.
5-3. To install the MCR

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
