Casio QT-6000 Service Manual

— 15 —

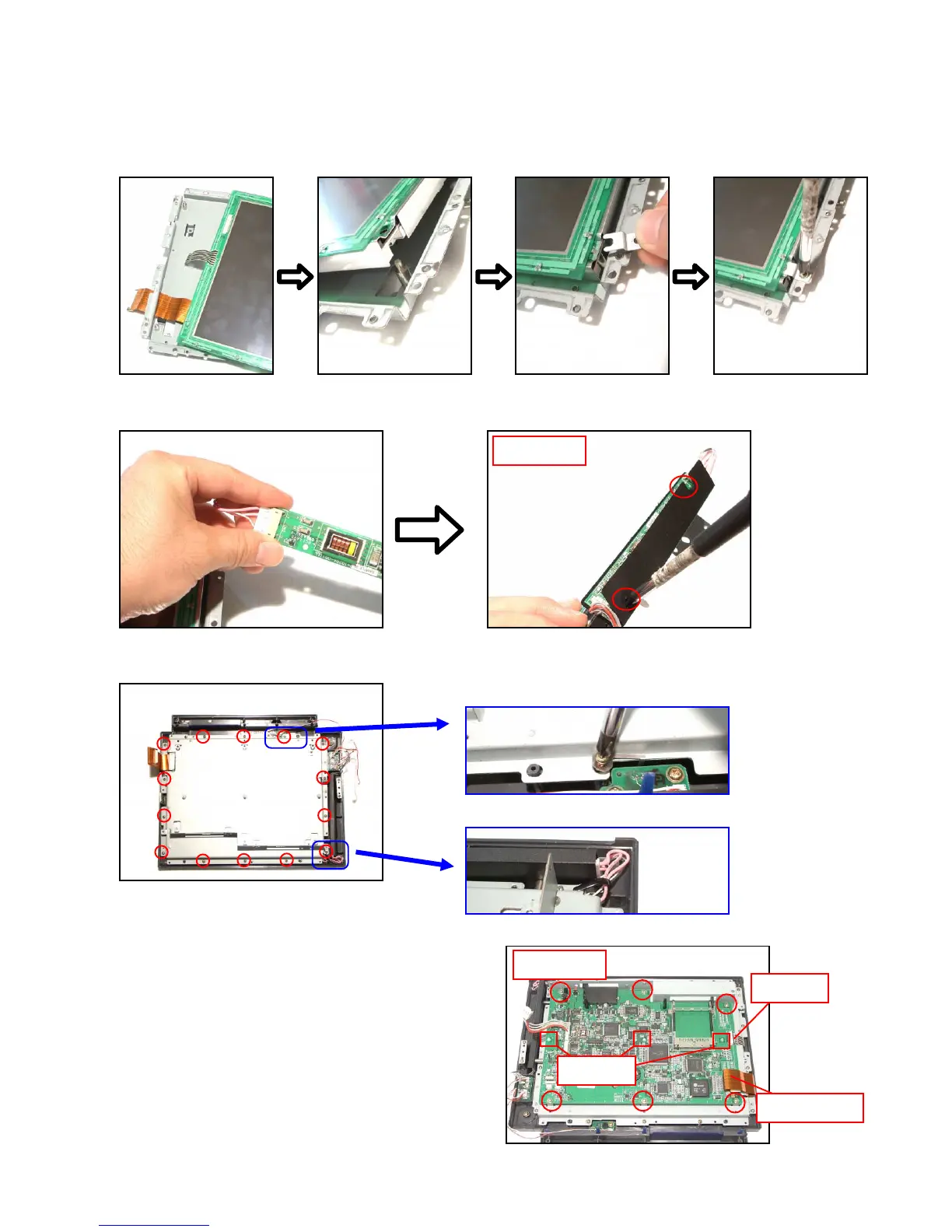

4. ASSEMBLY
■ QT-6000
1. Place the LCD UNIT in the frame and fix it with four screws.
2. Connect the connector and fix the inverter PCB with two screws.
Screw × 2
3. Fix the LCD UNIT to the FRONT CASE with 14 screws.
Fix the screws from above the earth plate.
Bind the wirings for the inverter.
4. Fix the main PCB with six screws and three bosses.
FPC
Connector
Boss × 3
Screw × 6

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
