6-3. Online interface
Only the RS-232C Com1 port can be connected with a modem or perssonal computer.
Direct connection to PC
1 Connection layout
Note: Maximum 3 remote printers in the 1
terminal system, 6 remote printers / 2
terminal system, 8 remote printers in
the 3 ~ 32 terminal can be defined.
PC
Via COM 1 port of the master terminal
or Inline (Ethernet)
Maximum 32 terminals
MODEM system
1 Connection layout
Note: Maximum 3 remote printers in
the 1 terminal system, 6 remote
printers / 2 terminal system, 8 re-
mote printers in the 3 ~ 32 ter-
minal can be defined.

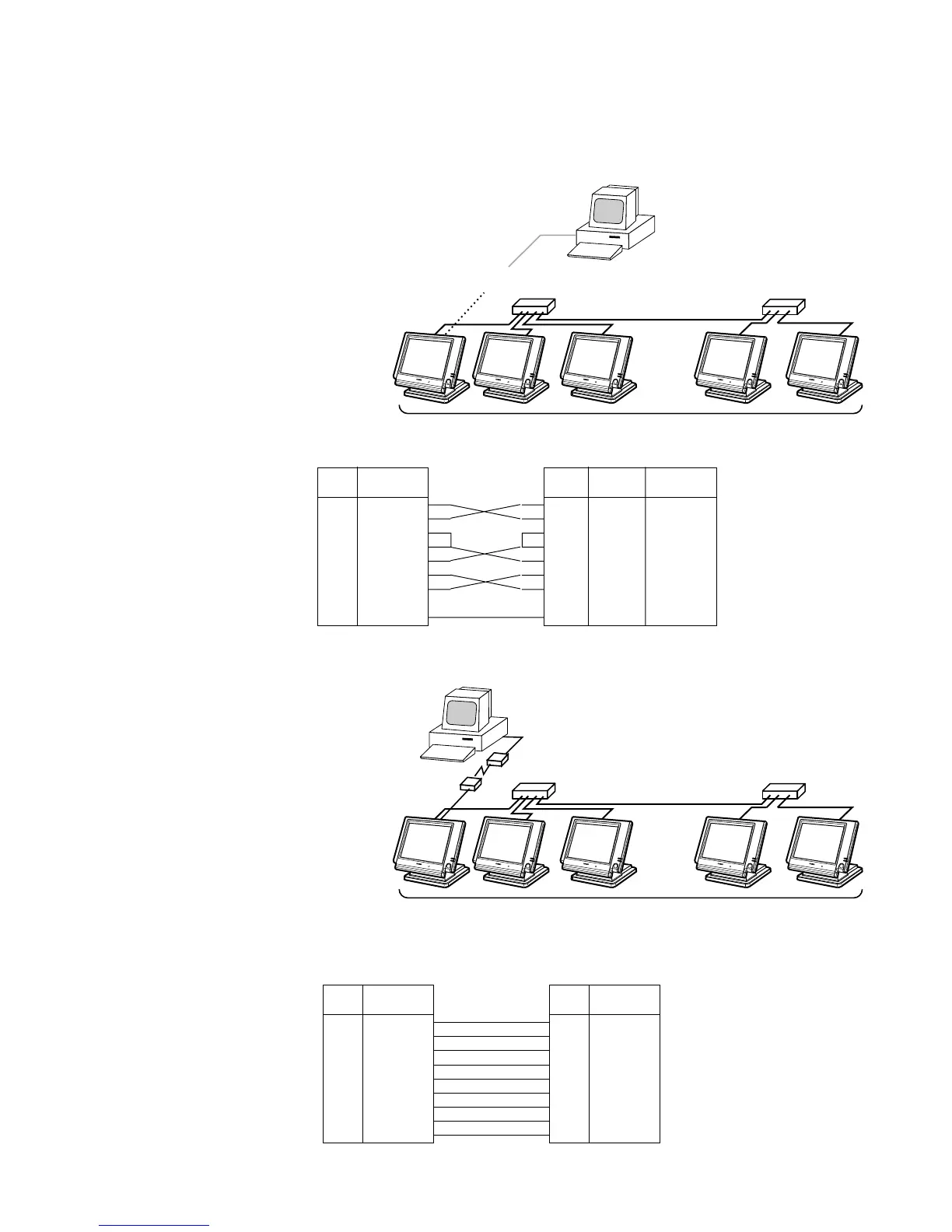

2 PC Cable wiring
PC
on-line
Maximum 32 terminals
2 PC Cable wiring
Pin No. Signal name
3 SD/TXD
2 RD/RXD
7 RS/RTS
8 CS/CTS
1 CD/DCD
4 ER/DTR
6 DR/DSR
9 CI/RI
5 GND
QT-6000 (Com1) MODEM (DSUB25)
Pin No. Signal name
2SD
3RD
4RS
5CS
8CD
20 ER
6DR
22 CI
7 GND
Pin No. Signal name
3 SD/TXD
2 RD/RXD
7 RS/RTS
8 CS/CTS
1 CD/DCD
4 ER/DTR
6 DR/DSR
9 CI/RI
5 GND
Pin No. Pin No. Signal name
(DSUB9) (DSUB25)
32SD
23RD
74RS
85CS
18CD
420ER
66DR
-22C
5 7 GND
QT-6000 (Com1)
PC

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
