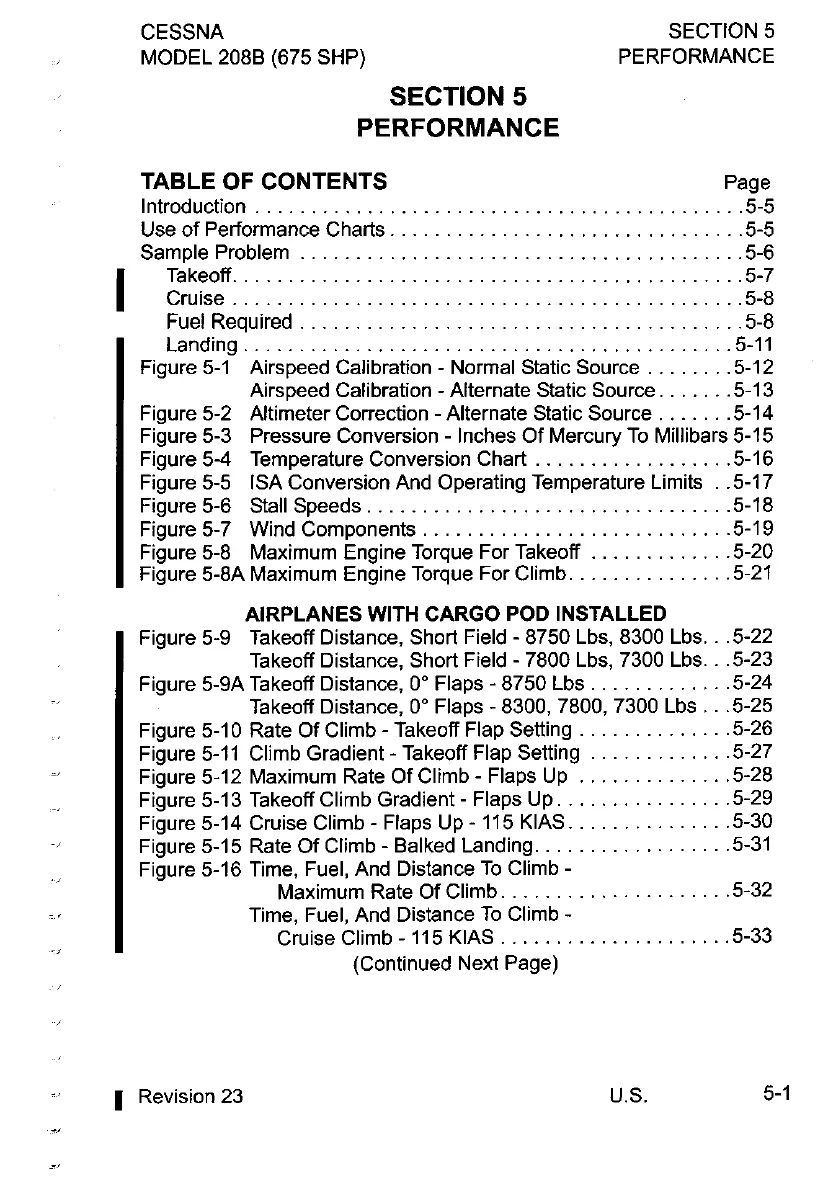

Cessna 208B - Page 165

CESSNA
MODEL
208B (675 SHP)
SECTION 5
PERFORMANCE
SECTION 5
PERFORMANCE
1 Revision 23
..
TABLE OF CONTENTS Page
Introduction
............................................ 5-5
Use of Performance Charts ................................ 5.5
Sample Problem
........................................ 5.6
..............................................
I
Takeoff 5-7
Cruise
.............................................. 5-8
FuelRequired ........................................ 5-8
Landing
............................................ 5-11
Figure 5-1 Airspeed Calibration
- Normal Static Source ........ 5-12
Airspeed Calibration
- Alternate Static Source ....... 5-13
Figure 5-2 Altimeter Correction -Alternate Static Source
....... 5-14
Figure 5-3 Pressure Conversion
- Inches Of Mercury To Millibars 5-15
Figure 5-4 Temperature Conversion Chart
.................. 5-16
Figure 5-5 ISA Conversion And Operating Temperature Limits
. . 5-17
Figure 5-6 Stall Speeds
................................. 5-18
Figure 5-7 Wind Components
............................ 5-19
Figure 5-8 Maximum Engine Torque For Takeoff
............. 5-20
Figure 5-8A Maximum Engine Torque For Climb
............... 5-21
AIRPLANES
WITH CARGO POD INSTALLED
U.S.
~)
. .
..
.,
Figure 5-9 Takeoff Distance, Short Field - 8750 Lbs, 8300 Lbs ... 5-22
... Takeoff Distance, Short Field - 7800 Lbs, 7300 Lbs
5-23
Figure 5-9A Takeoff Distance,
0" Flaps - 8750 Lbs ............. 5-24
...
Takeoff Distance, 0" Flaps - 8300, 7800, 7300 Lbs
5-25
.............. Figure 5-10 Rate Of Climb - Takeoff Flap Setting
5-26
Figure 5-11 Climb Gradient
- Takeoff Flap Setting ............. 5-27
Figure 5-12 Maximum Rate Of Climb
- Flaps Up .............. 5-28
................ Figure 5-13 Takeoff Climb Gradient - Flaps Up
5-29
Figure 5-14 Cruise Climb
- Flaps Up - 115 KIAS ............... 5-30
Figure 5-15 Rate Of Climb
- Balked Landing .................. 5-31
Figure 5-16 Time, Fuel, And Distance To Climb
-
.....................
Maximum Rate Of Climb 5-32
Time, Fuel, And Distance To Climb
-
..................... Cruise Climb - 115 KlAS
5-33
(Continued Next Page)
