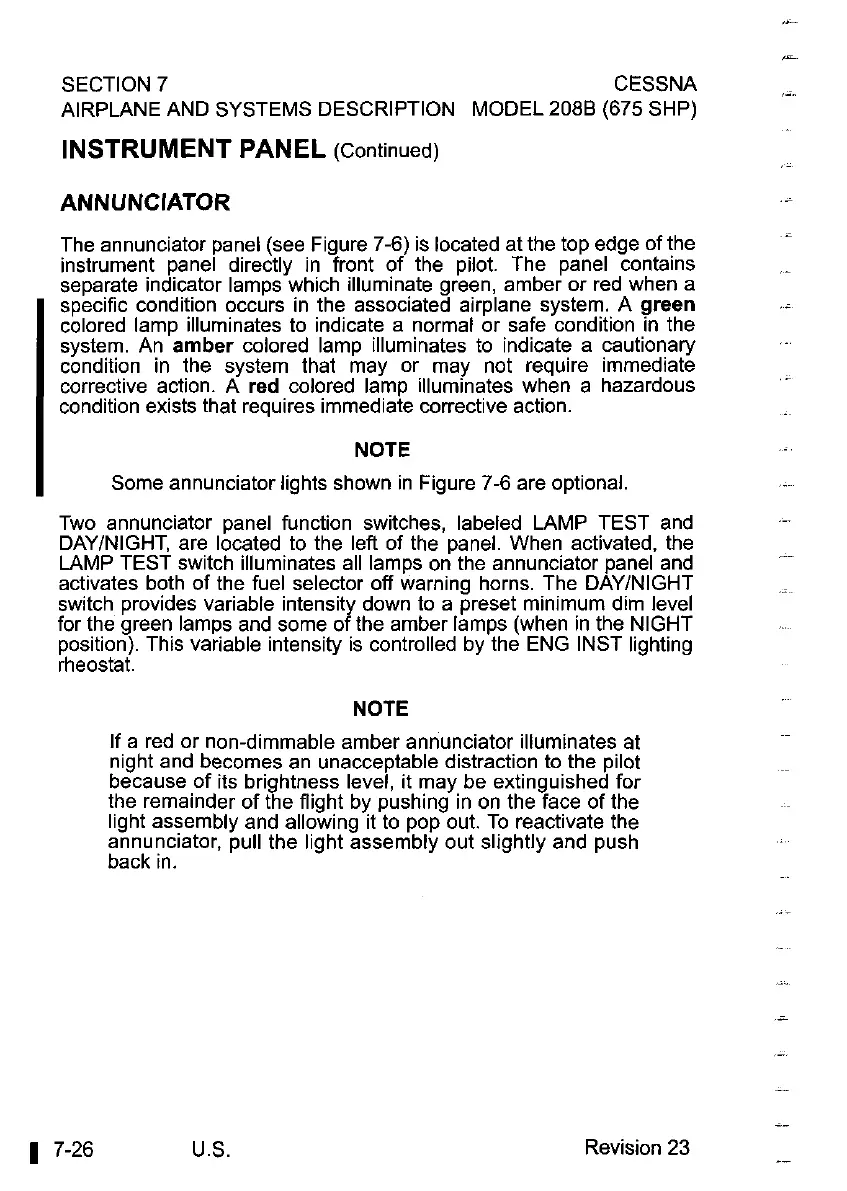

SECTION 7 CESSNA
AIRPLANE AND SYSTEMS DESCRIPTION MODEL
208B (675 SHP)
INSTRUMENT PANEL (Continued)
ANNUNCIATOR
The annunciator panel (see Figure 7-6) is located at the top edge of the
instrument panel directly in front of the pilot. The panel contains
se~arate indicator lam~s which illuminate green, amber or red when a
specific condition occurs in the associated airplane system. A green
colored
lam^ illuminates to indicate a normal or safe condition in rhe
system. An'arnber colored lamp illuminates to indicate a cautionary
condition in the system that may or may not require immediate
corrective action. A red colored lamp illuminates when a hazardous
condition exists that requires immediate corrective action.
NOTE
Some annunciator lights shown in Figure 7-6 are optional
Two annunciator panel function switches, labeled LAMP TEST and
DAYINIGHT, are located to the lefl of the panel. When activated, the
LAMP TEST switch illuminates all lamps on the annunciator panel and
activates both of the fuel selector off warning horns. The DAYINIGHT
switch provides variable intensity down to a preset minimum dim level
for the green lamps and some of the amber lamps (when in the NIGHT
position). This variable intensity is controlled by the ENG
INST lighting
rheostat.
NOTE
If a red or non-dimmable amber annunciator illuminates at
n gnt and becomes an unacceptable distraction to the pilot
because of ts briantness level.
~t mav be extlnau~shed for
the remainder of the flight by
pushingin on the3ace of the
light assembly and allowing it to pop out. To reactivate the
annunciator, pull the light assembly out slightly and push
back in.
Revision
23
