CESSNA
MODEL
2086
(675
SHP)
SECTION 2
LIMITATIONS
AIRSPEED INDICATOR MARKINGS

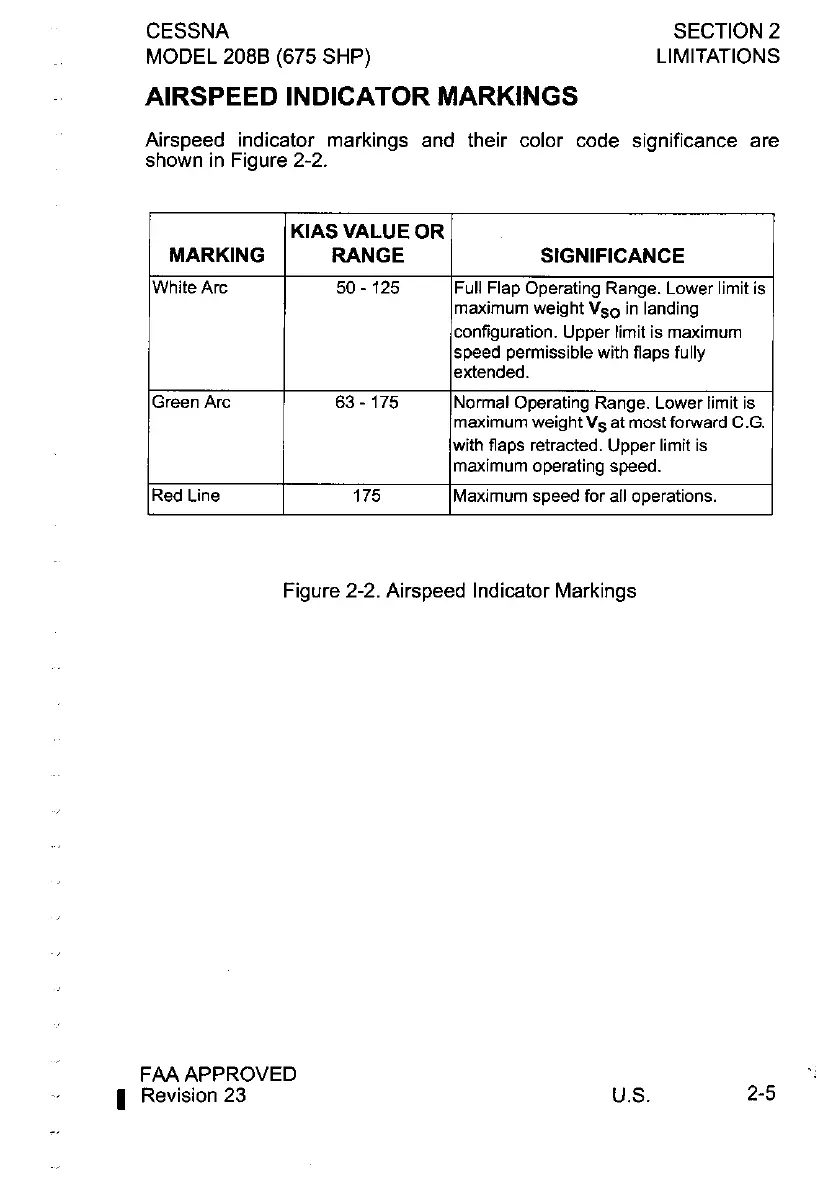

Airspeed indicator markings and their color code significance are
shown in Figure
2-2.
Figure 2-2. Airspeed Indicator Markings
MARKING
White Arc
Green Arc
Red Line
FAA APPROVED
1
Revision
23
U.S. 2-5
KlAS VALUE
OR
RANGE
50
-
125
63
-
175
175
SIGNIFICANCE
Full Flap Operating Range. Lower limit is
maximum weight
Vso
in landing
configuration. Upper limit is maximum
speed permissible with flaps fully
extended.
Normal Operating Range. Lower limit is
maximum weight
VS
at most forward C.G.
with flaps retracted. Upper limit is
maximum operating speed.
Maximum speed for all operations.
