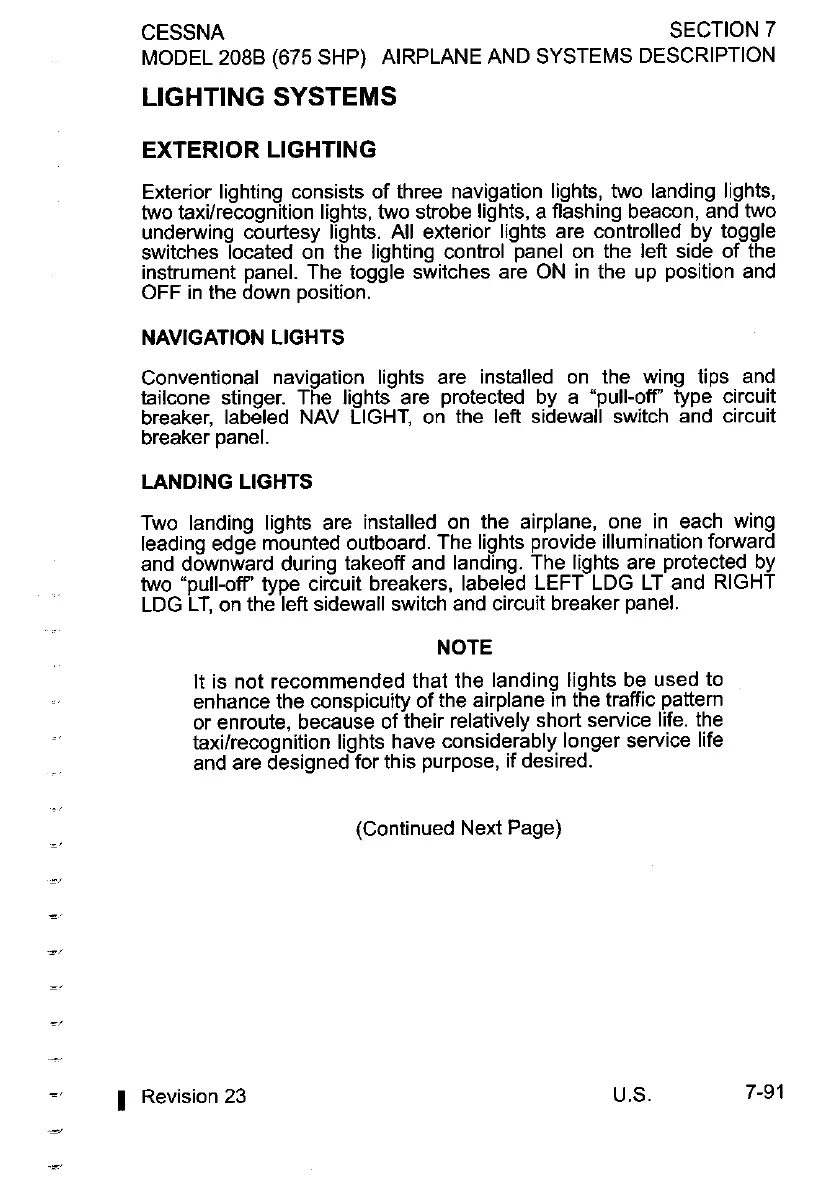

CESSNA SECTION
7
MODEL
2088
(675
SHP) AIRPLANE AND SYSTEMS DESCRIPTION
LIGHTING SYSTEMS
EXTERIOR LIGHTING
Exterior lighting consists of three navigation lights, two landing lights,
two taxilrecognition lights, two strobe lights, a flashing beacon, and two
underwing courtesy lights. All exterior lights are controlled by toggle
switches located on the lighting control panel on the left side of the
instrument panel. The toggle switches are ON in the up position and
OFF in the down position.
NAVIGATION LIGHTS
Conventional navigation lights are installed on the wing tips and
tailcone stinger. The lights are protected by a "pull-off' type circuit
breaker, labeled NAV LIGHT, on the left sidewall switch and circuit
breaker panel.
LANDING LIGHTS
Two landing lights are installed on the airplane, one in each wing
leading edge mounted outboard. The lights provide illumination forward
and downward during takeoff and landing. The lights are protected by
two "pull-off' type circuit breakers, labeled LEFT LDG LT and RIGHT
LDG LT, on the left sidewall switch and circuit breaker panel.
NOTE
It is not recommended that the landing I'ghts be used to
enhance the
cons~icuitv of the airplane in the traffic partern
or enroute, because ofiheir relatively short service life. the
taxilrecognition lights have considerably longer
service life
and are designed for this purpose, if desired.
(Continued Next Page)
-
-
I
Revision
23
*
U.S.
7-91
