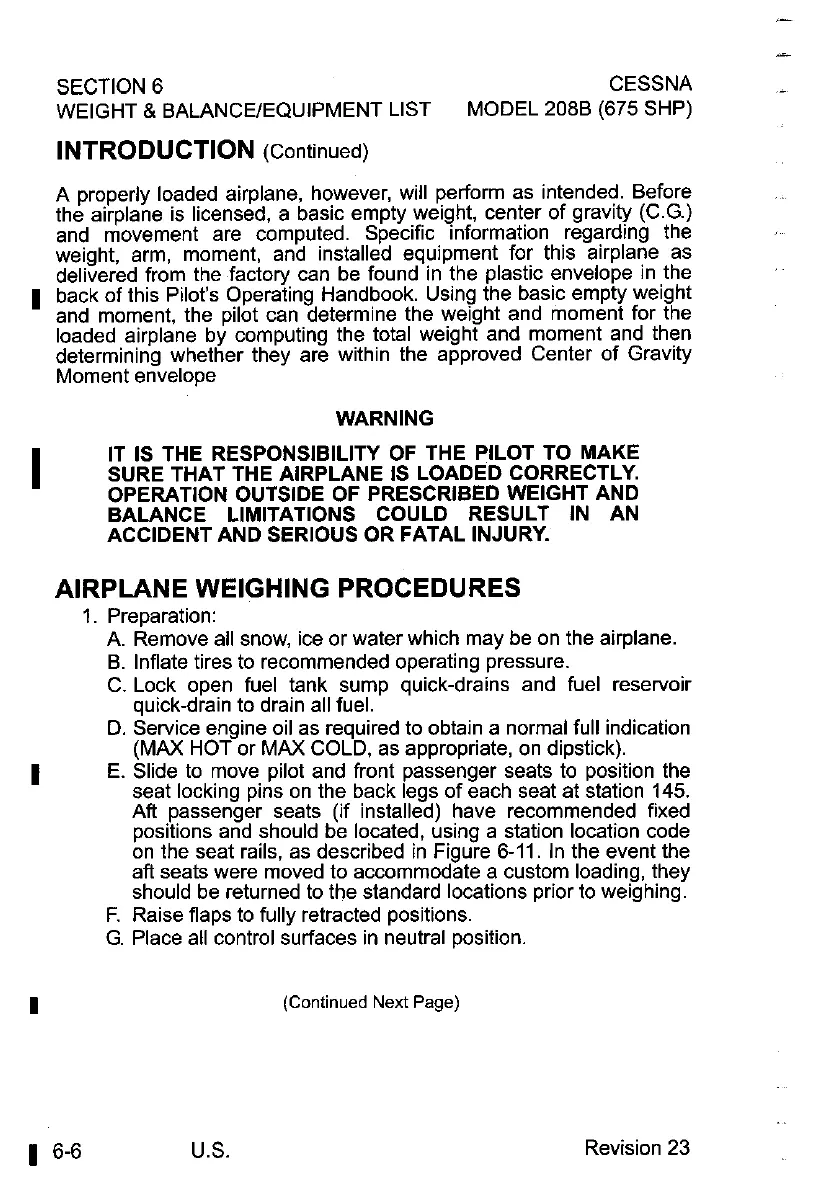

SECTION 6 CESSNA
-
WEIGHT
&
BALANCEIEQUIPMENT LIST
MODEL 208B (675 SHP)
INTRODUCTION
(Continued)
A properly loaded airplane, however, will perform as intended. Before
the airplane is licensed, a basic empty weight, center of gravity
(C.G.)
and movement are computed. Specific information regarding the
weight, arm, moment, and installed equipment for this airplane as
delivered from the factory can be found in the plastic envelope in the
1
back of this Pilot's Operating Handbook. Using the basic empty weight
and moment, the pilot can determine the weight and moment for the
loaded airplane by computing the total weight and moment and then
determining whether they are within the approved Center of Gravity
Moment envelope
WARNING
IT IS THE RESPONSIBILITY OF THE PILOT TO MAKE
I
SURE THAT THE AIRPLANE IS LOADED CORRECTLY.
OPERATION OUTSIDE OF PRESCRIBED WEIGHT AND
BALANCE LIMITATIONS COULD RESULT IN AN
ACCIDENT AND SERIOUS OR FATAL INJURY.
AIRPLANE WEIGHING PROCEDURES
1. Preparation:
A. Remove all snow, ice or water which may be on the airplane.
B.
Inflate tires to recommended operating pressure.
C. Lock open fuel tank sump quick-drains and fuel reservoir
quick-drain to drain all fuel.
D. Service engine oil as required to obtain a normal full indication
(MAX HOT or MAX COLD, as appropriate, on dipstick).
1
E. Slide to move pilot and front passenger seats to position the
seat locking pins on the back legs of each seat at station 145.
Aft Dassenaer seats (if installed) have recommended fixed
positions aGd should be located,
using
a statlon locat~on code
on tne seat rails. as descrtbed in
F
aure 6-11
In the event tne
an seats were moved to accommod3te a custom loading, they
should be returned
to tne standard locattons or.or to weiah~na
-
-
F.
Raise flaps to fully retracted positions.
G.
Place all control surfaces in neutral position.
(Continued
Next
Page)
1
6-6 U.S.
Revision
23
