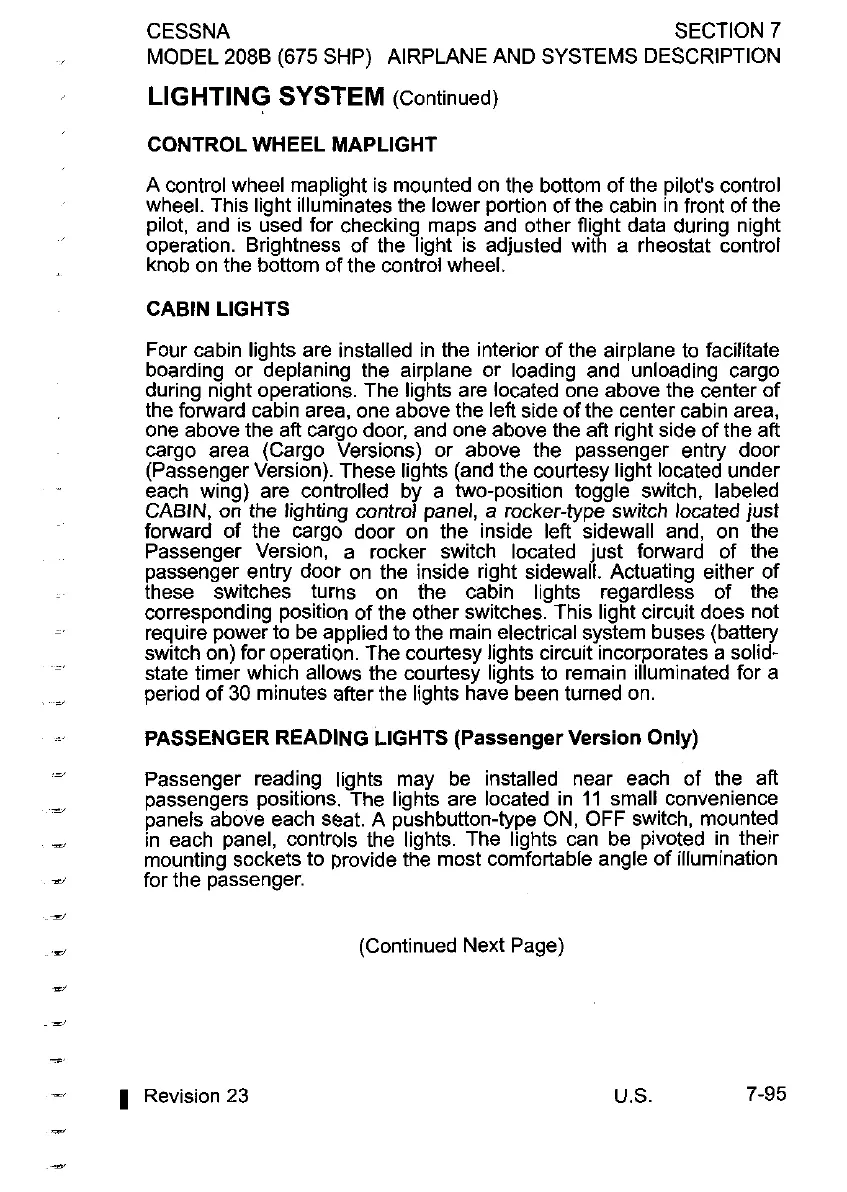

CESSNA SECTION 7
MODEL
2088 (675 SHP) AIRPLANE AND SYSTEMS DESCRIPTION
LIGHTING SYSTEM (Continued)
CONTROL WHEEL
MAPLIGHT
A control wneel maplight s mounted on the bottom of the pilot's control
wneel. This light illuminates the lower portion of the cabin n fronr of the
pilot, and
IS used for checking maps and orher flight data during night
operation. Brightness of
the light is adiusted wlrh a rheostat control
knob on the
b6ttom of the control wheel..
CABIN LIGHTS
Four cabin lights are installed in the interior of the airplane to facilitate
boarding or deplaning the airplane or loading and unloading cargo
durina
night operations. The liahts are located one above the center of
the f&$d cabin area, one abbe the left side of the center cab n area,
one above the aft
cargo door, and one above the aft right side of the aft
cargo area (Cargo versions) or above the passenger enrry door
(Passenger Version) These
llahts (and the wurtesv llaht locared under
each
wiiig) are controlled by a hvo-position to&le switch, labeled
CABIN, on the lighting control panel, a rocker-type switch located just
forward of the cargo door on the inside left sidewall and, on the
Passenger Version, a rocker switch located just forward of the
passenger entry door on the inside right sidewall. Actuating either of
these switches turns on the cabin lights regardless of the
corresponding position of the other switches. This light circuit does not
require power to be applied to the main electrical system buses (battery
switch on) for operation. The courtesy lights circuit incorporates a solid-
state timer which allows the courtesy lights to remain illuminated for a
period of 30 minutes after the lights have been turned on.
PASSENGER READING LIGHTS (Passenger Version Only)
Passenger reading lights may be installed near each of the aft
passengers positions. The lights are located in
11 small convenience
panels above each seat.
A pushbutton-type ON, OFF switch, mounted
in each panel, controls the lights. The lights can be pivoted in their
mounting sockets to provide the most comfortable angle of illumination
for the passenger.
=,
.,
.3
=,
+
e
e
.=I
-3
-,
~ -
-.
-- 1 Revision 23
-
-
(Continued Next Page)
U.S. 7-95
