SECTION 7 CESSNA
AIRPLANE AND SYSTEMS DESCRIPTION MODEL
2088 (675 SHP)

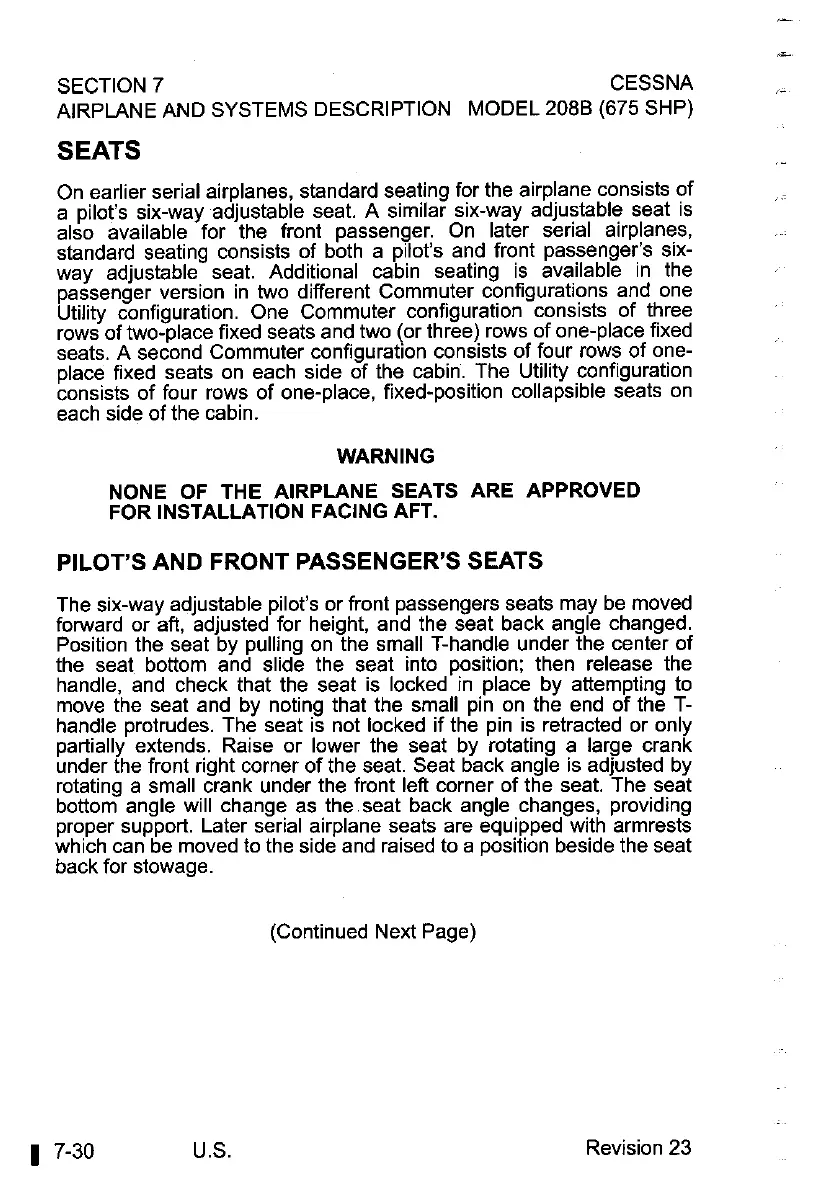

SEATS
On earlier serial airplanes, standard seating for the airplane consists of
, .~
a pilot's six-way adjustable seat. A similar six-way adjustable seat is
also available for the front passenger. On later serial airplanes,
,..
standard seating consists of both a pilot's and front passenger's six-
way adjustable seat. Additional cabin seating is available in the
oassenaer version in two different Commuter configurations and one
utility configurat on. One Commuter configuration~cons'sts of three
rows of
two-dace fixed seats and two (or three) rows of one-place fixed
seats. A
second Commuter configuration consists of four rows of one-
place fixed seats on each side of the cabin. The Utility configuration
consists of four rows of one-place, fixed-position collapsible seats on
each side of the cabin.
WARNING
NONE OF THE AIRPLANE SEATS ARE APPROVED
FOR INSTALLATION FACING AFT.
PILOT'S AND FRONT PASSENGER'S SEATS
The six-way adjustable pilot's or front passengers seats may be moved
forward or aft, adjusted for height, and the seat back angle changed.
Position the seat by pulling on the small T-handle under the center of
the seat bottom and slide the seat into position; then release the
handle, and check that the seat is locked in place by attempting to
move the seat and by noting that the small pin on the end of the T-
handle protrudes. The seat is not locked if the pin is retracted or only
partially extends. Raise or lower the seat by rotating a large crank
under the front right corner of the seat. Seat back angle is adjusted by
rotating a small crank under the front left corner of the seat. The seat
bottom
anale will chanae as the seat back anale chanaes. ~rovidina
proper ~u~~ort. Later serial airplane seats are equippedwitn 'armresti
wh ch can be moved ro the side and raised to a ~osition beside the seat
back for stowage.
(Continued Next Page)
