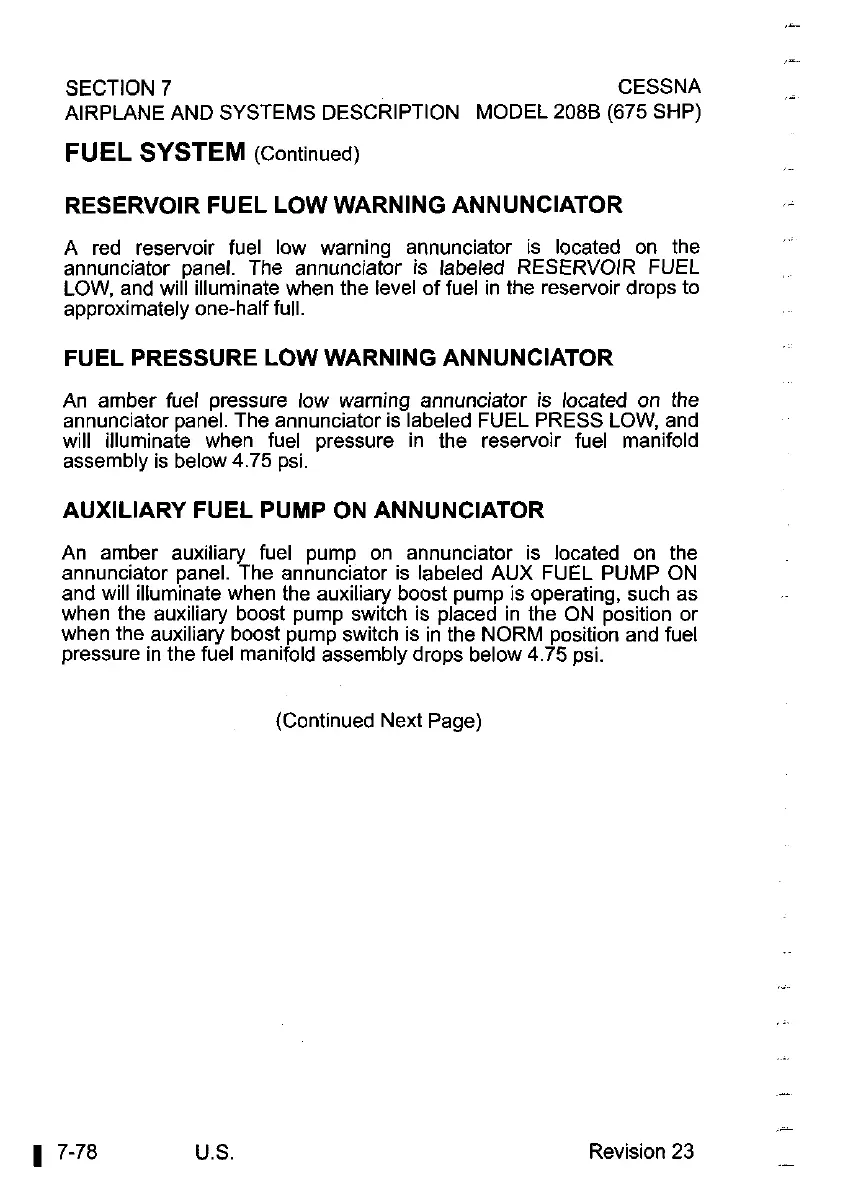

SECTION
7
CESSNA
AIRPLANE AND SYSTEMS DESCRIPTION MODEL
2088
(675 SHP)
FUEL
SYSTEM
(Continued)
RESERVOIR FUEL LOW WARNING ANNUNCIATOR
A red reservoir fuel low warning annunciator
IS
located on the
annunclator panel. The annunclator is labeled RESERVOIR FUEL
LOW, and will illuminate when the level of fuel in the reservoir drops to
approximately one-half full.
FUEL PRESSURE LOW WARNING ANNUNCIATOR
An amber fuel pressure low warning annunciator is located on the
annunciator panel. The annunciator is labeled FUEL PRESS LOW, and
will illuminate when fuel pressure in the reservoir fuel manifold
assembly is below 4.75 psi.
AUXILIARY FUEL PUMP ON ANNUNCIATOR
An amber auxiliary fuel pump on annunciator is located on the
annunciator panel. The annunciator is labeled AUX FUEL PUMP ON
and will illuminate when the auxiliary boost pump is operating, such as
when the auxiliary boost pump switch is placed in the ON position or
when the auxiliary boost pump switch is in the NORM position and fuel
pressure in the fuel manifold assembly drops below 4.75 psi.
(Continued Next Page)
