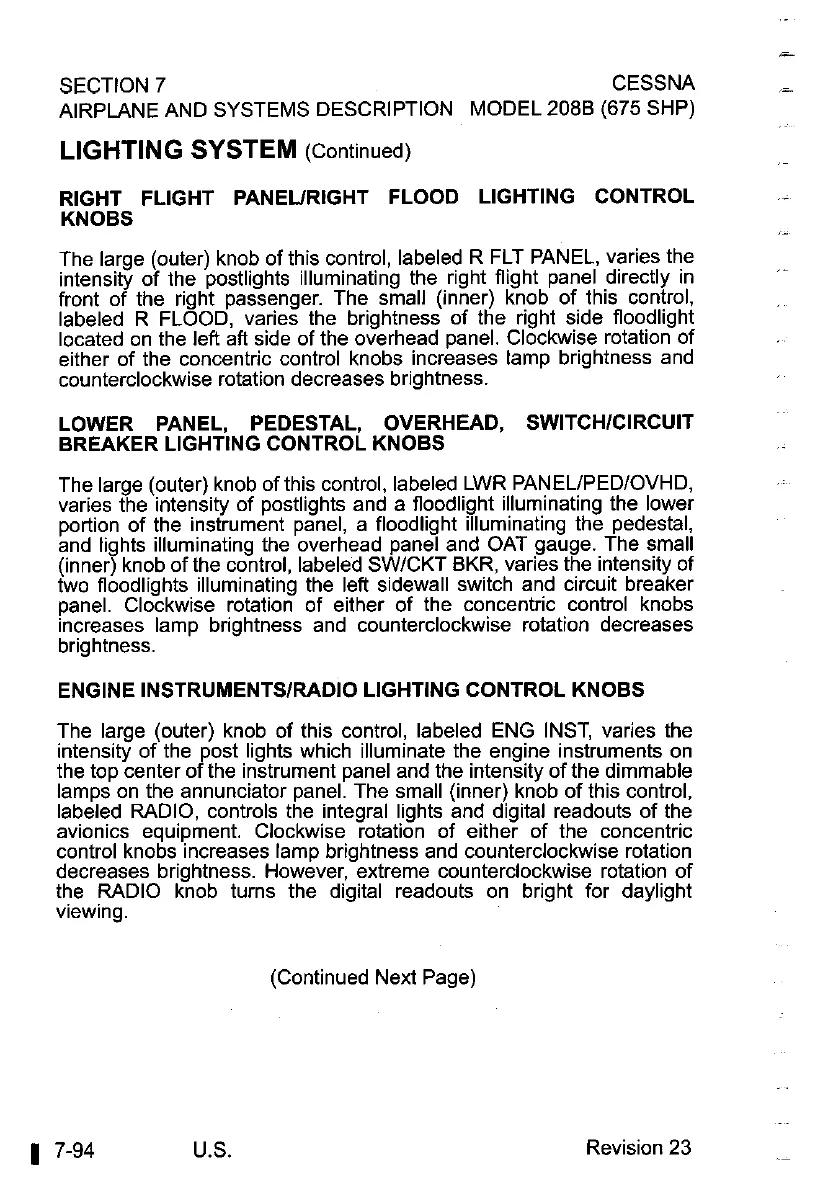

SECTION 7 CESSNA
-
AIRPLANE AND SYSTEMS DESCRIPTION MODEL 2088 (675 SHP)
LIGHTING
SYSTEM
(Continued)
RIGHT FLIGHT
PANEURIGHT FLOOD LIGHTING CONTROL
-
KNOBS
The large (outer) knob of this control, labeled R FLT PANEL, varies the
,
-
intensity of the postlights illuminating the right flight panel directly in
front of the right passenger. The small (inner) knob of this control,
labeled R FLOOD, varies the brightness of the right side floodlight
located on the left aft side of the overhead panel. Clockwise rotation of
either of the concentric control knobs increases lamp brightness and
counterclockwise rotation decreases brightness.
LOWER PANEL, PEDESTAL, OVERHEAD,
SWlTCHlClRCUlT
BREAKER LIGHTING CONTROL KNOBS
The large (outer) knob of this control, labeled LWR PANELIPEDIOVHD,
varies the intensity of postlights and a floodlight illuminating the lower
portion of the instrument panel, a floodlight illuminating the pedestal,
and lights illuminating the overhead panel and OAT gauge. The small
(inner) knob of the control, labeled
SWICKT BKR, varies the intensity of
two floodlights illuminating the left sidewall switch and circuit breaker
panel. Clockwise rotation of either of the concentric control knobs
increases lamp brightness and counterclockwise rotation decreases
brightness.
ENGINE
INSTRUMENTSIRADIO LIGHTING CONTROL KNOBS
The large (outer) knob of this control, labeled ENG
INST, varies the
intensity of the post lights which illuminate the engine instruments on
the top center of the instrument panel and the intensity of the dimmable
lamps on the annunciator panel. The small (inner) knob of this control,
labeled RADIO. controls the intearal liahts and
diaital readouts of the
avion cs equipment.
Cloc6wlse rotation of eithei of tne
concentric
control knobs increases
lam^
briantness and counterclockwise rotaton
decreases brightness. ~owever,kxtreme counterclockwise rotation of
the RADIO knob turns the digital readouts on bright for daylight
viewing.
(Continued Next Page)
1
7-94
U.S.
Revision
23
