SECTION 5
PERFORMANCE
CESSNA
MODEL
2088 (675 SHP)
1
MAXIMUM ENGINE TORQUE FOR TAKEOFF
CONDITIONS:
1900 RPM
60
KIAS
Inertial Separator - Normal
NOTE
1. Torque increases approximately 10 Ft-Lbs from
0 to 60 KIAS.
2. Torque on this chart shall be achieved without exceeding
805°C ITT or 101.6 percent
Ng. When the ITT exceeds 765"C,
this power setting is time limited to 5 minutes.
I
3. With the inertial separator in BYPASS, where altitude and
temperature do not permit 1865 Ft-Lbs for takeoff, decrease
torque setting by 15 Ft-Lbs.
I
4. With the cabin heater ON, where altitude and temperature do
not permit 1865 Ft-Lbs for takeoff, decrease torque setting by
65 Ft-Lbs.
-30 -20 -10 0
10 20 30 40 50 60
OUTSIDE AIR TEMPERATURE
- C'
1

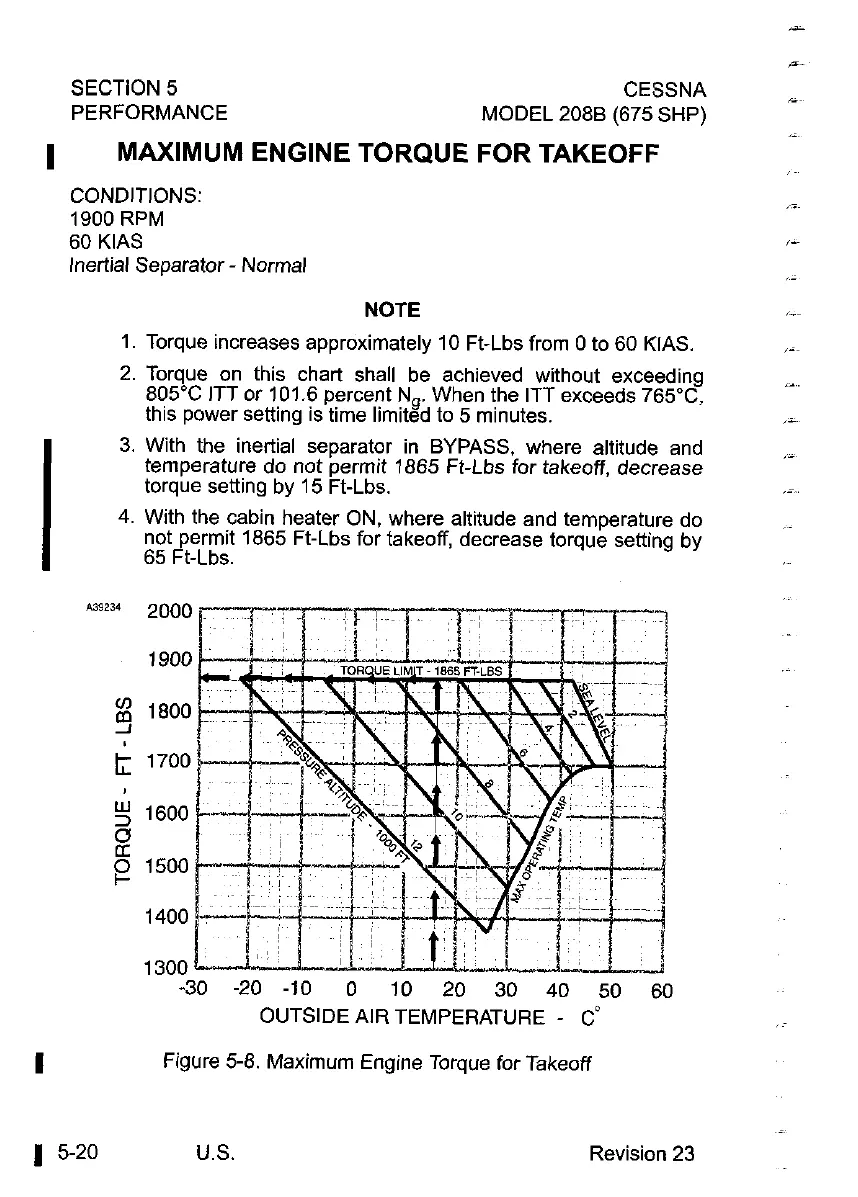

Figure 5-8. Maximum Engine Torque for Takeoff
1 5-20 U.S. Revision 23
