CESSNA SECTION 6
MODEL
2088 (675 SHP) WEIGHT
&
BALANCEIEQUIPMENT LIST
WARNING
BECAUSE LOADING PERSONNEL MAY NOT ALWAYS
BE ABLE TO ACHIEVE AN IDEAL LOADING, A MEANS
OF PROTECTING THE
C.G ENVELOPE IS PROVIDED
BY SUPPLYING AN AFT
C.G LOCATION WARNING
(SHADED AREA) BETWEEN
38.33%
MAC AND THE
MAXIMUM AFT C.G. OF
40.33%
MAC ON THE CENTER
OF GRAVITY MOMENT ENVELOPE. POINTS FALLING
WITHIN
THIS SHADED AREA SHOULD BE USED ONLY
IF ACCURATE C.G. DETERMINATION FOR CARGO
LOADINGS CAN BE OBTAINED.
WARNING
IT IS THE RESPONSIBILITY OF THE PILOT TO MAKE
(
SURE THAT THE AIRPLANE IS LOADED CORRECTLY.
OPERATION OUTSIDE OF PRESCRIBED WEIGHT AND
BALANCE
LIMITATIONS COULD RESULT IN AN
~CC~DE~
SERIOUS
OR
FATAL INJURY.

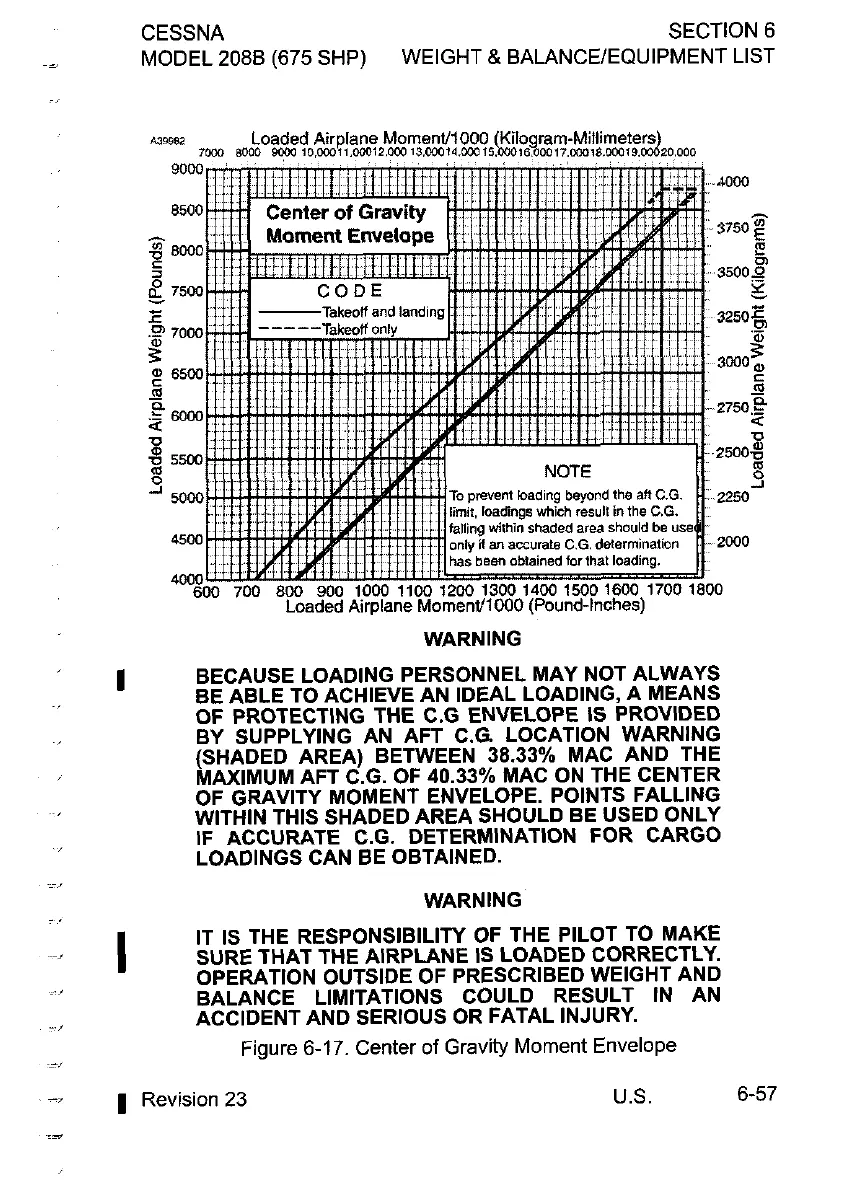

Figure 6-17. Center of Gravity Moment Envelope
1
Revision
23
U.S. 6-57
