CETAC ASXPRESS PLUS - Rinse Pump Configurations; Other Setup Tasks

ASXPRESS PLUS Rapid Sample Introduction System Operator’s Manual
Chapter 4: Preparing an ASX-260 or ASX-520 Autosampler
26

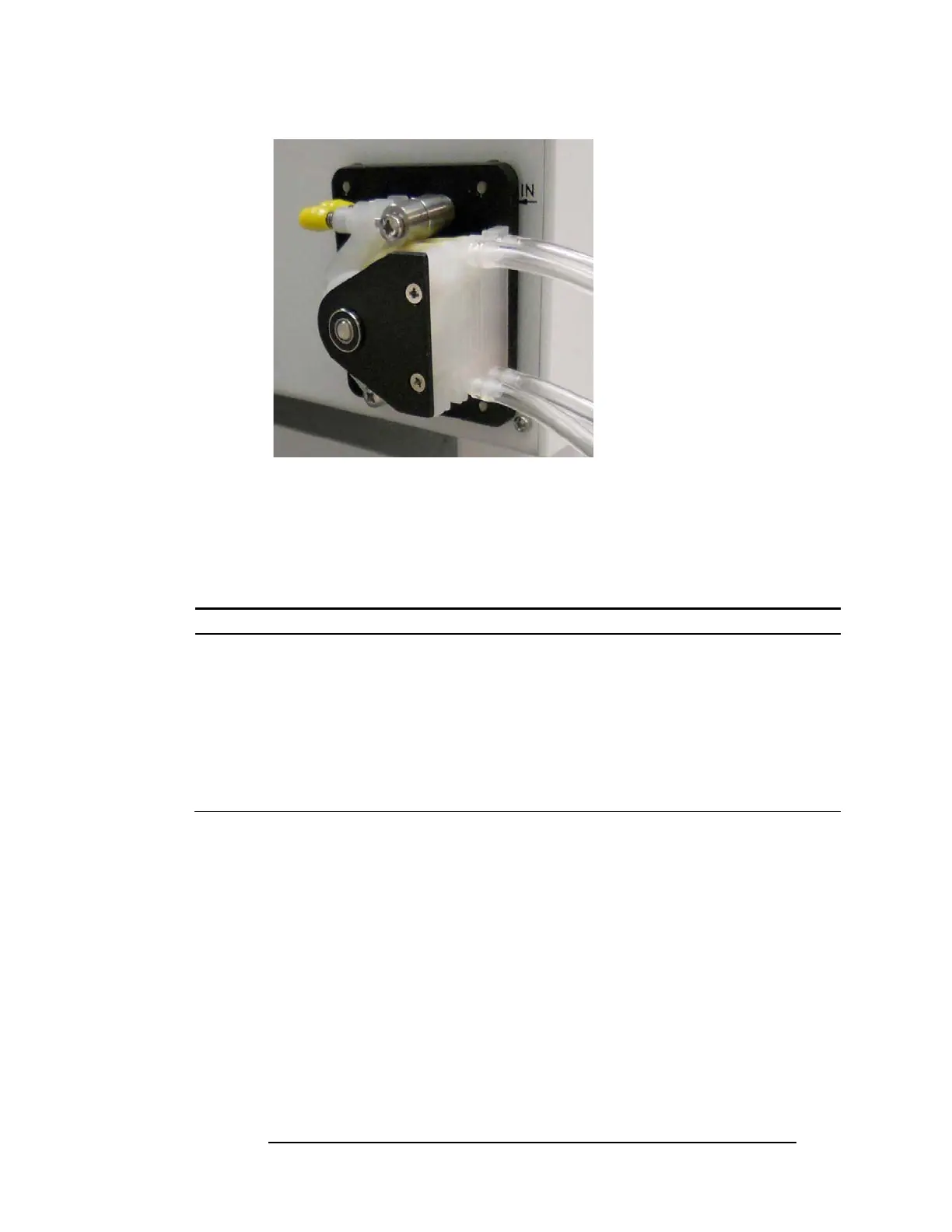

Figure 4-1 "New" Built-In Peristaltic Pump
Rinse Pump Configurations
Several options are available for pumping rinse solution through the rinse
station:
Table 2 Rinse Pump Configurations for ASX-260 and ASX-520 Series Autosamplers
Rinse Configuration Pumps Used When to Use See Page
Gravity drain with
built-in pump
"New" built-in pump
Recommended option if your
autosampler has a "new" pump.
Gravity drain with
external pump
External pump*
Recommended option if your
autosampler has an "older" pump.
Pumped drain with
external pump input
External pump* and
built-in pump**
Use when greater flow of rinse
solution is required.
Pumped drain with
built-in pump input
External pump* and
built-in pump**
Use when greater flow of rinse
solution is required.
* A 2-channel external pump is provided in the upgrade kit. This pump is
significantly faster than the autosampler's built-in pump.
** When used in conjunction with the external pump, the speed of the internal
pump must be increased to its maximum setting. This requires setting a jumper
inside the autosampler.
Other Setup Tasks
This chapter also includes a summary of the instructions for upgrading the
autosampler firmware, if that should become necessary.
Several optional tasks require opening up the autosampler:
 Upgrading the autosampler firmware
 Adjusting the speed of the built-in peristaltic pump (if you will be using the
external 3-channel peristaltic pump)
