ASXPRESS PLUS Rapid Sample Introduction System Operator’s Manual
Chapter 7: Installing the Electronics Module
79
Connecting the Electronics Module to the
Valve/Pump Module
The ASXPRESS PLUS valve/pump module connects to the electronics module via
its integrated cable with DIN style connector as shown in Figure 7-2.
1 Plug the valve/pump module’s cable connector into the electronics module’s
VP MODULE connector.

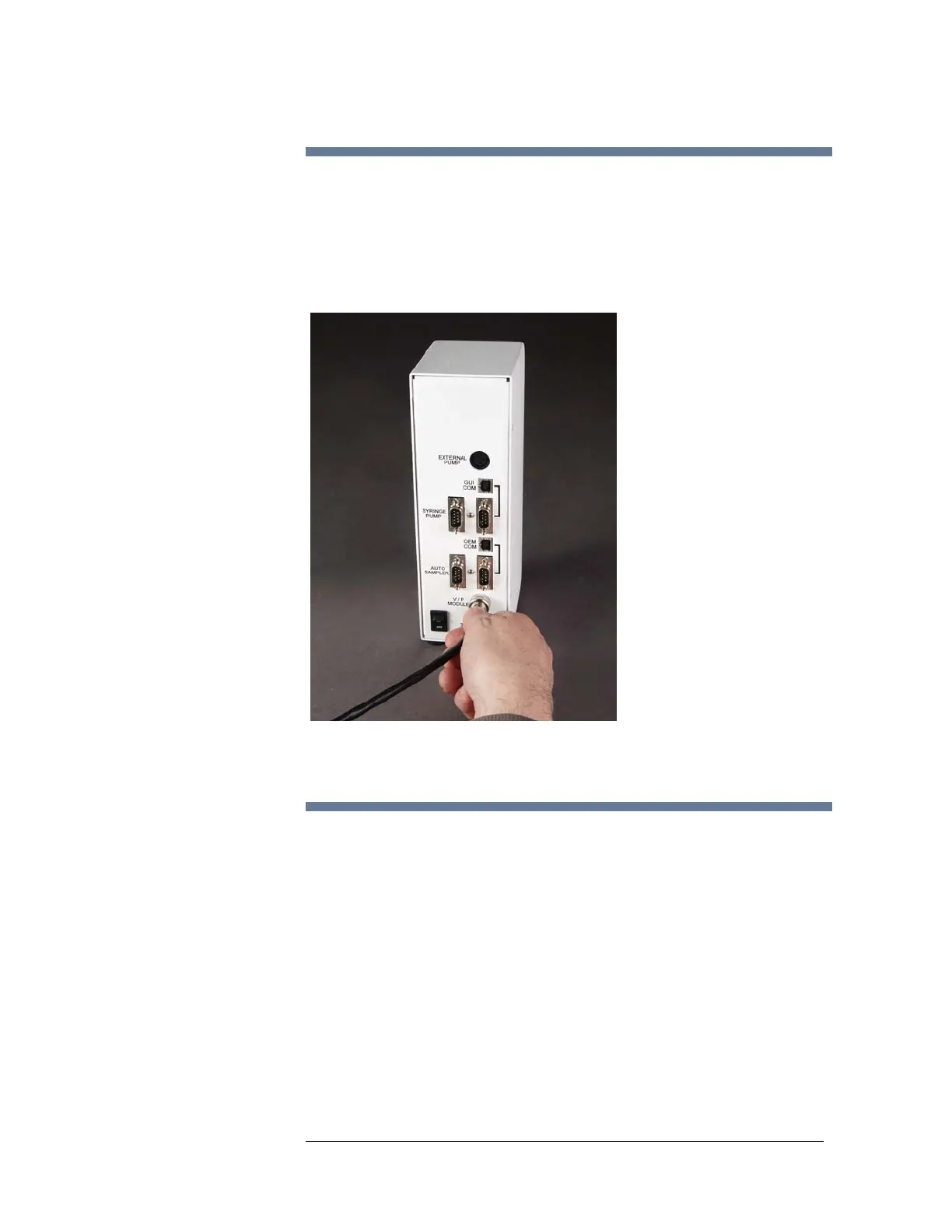

Figure 7-2 Connecting ASX
PRESS PLUS Valve/Pump Module to Electronics
Module
Connecting the Electronics Module to the External
Rinse Pump
If the plumbing configuration includes an external rinse pump, connect it now.
The ASX
PRESS PLUS valve/pump module connects to the electronics module via
its integrated cable with DIN style connector as shown in Figure 7-2.
1 Plug the pump’s cable connector into the electronics module’s EXTERNAL
PUMP connector.
