CETAC ASXPRESS PLUS - Reinstalling the Stirrer Assembly

ASXPRESS PLUS Rapid Sample Introduction System Operator’s Manual
Chapter 5: Preparing an ASX-1400/1600 Autosampler
64

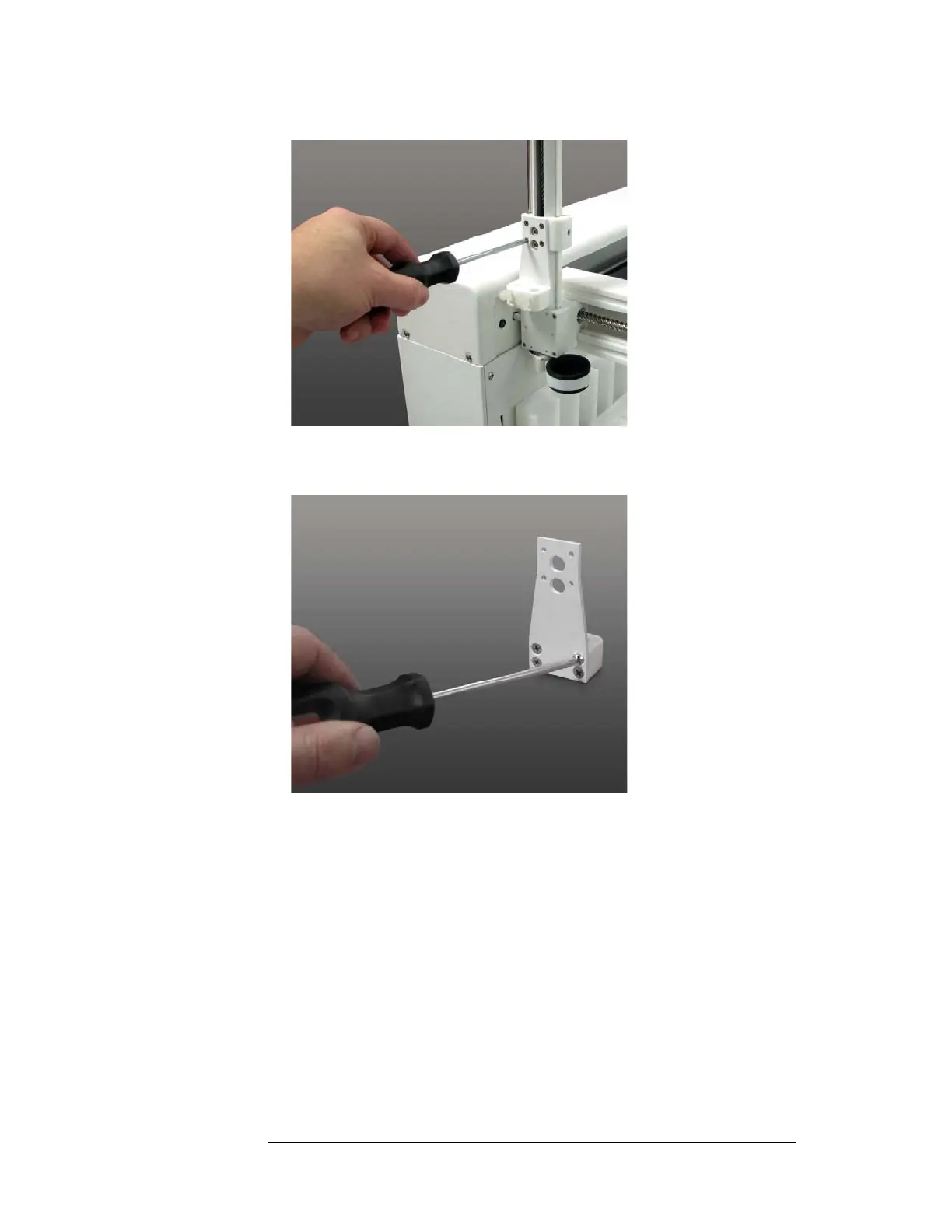

Figure 5-16 Removing the Plate
2 Remove the 4 screws which hold the block to the plate.
Figure 5-17 Removing the Block from the Plate
3 Put the old block aside. Label it so it is clear which block to use in case the
autosampler ever needs to be configured for use without the ASX
PRESS PLUS
system.
4 Replace the 4 screws which hold the block to the plate.
5 Replace the 4 screws which hold the plate to the Z-drive assembly.
Reinstalling the Stirrer Assembly
1 Push the stirrer probe straight down.
2 Install and tighten the thumbscrew.
