ASXPRESS PLUS Rapid Sample Introduction System Operator’s Manual
Chapter 5: Preparing an ASX-1400/1600 Autosampler
63

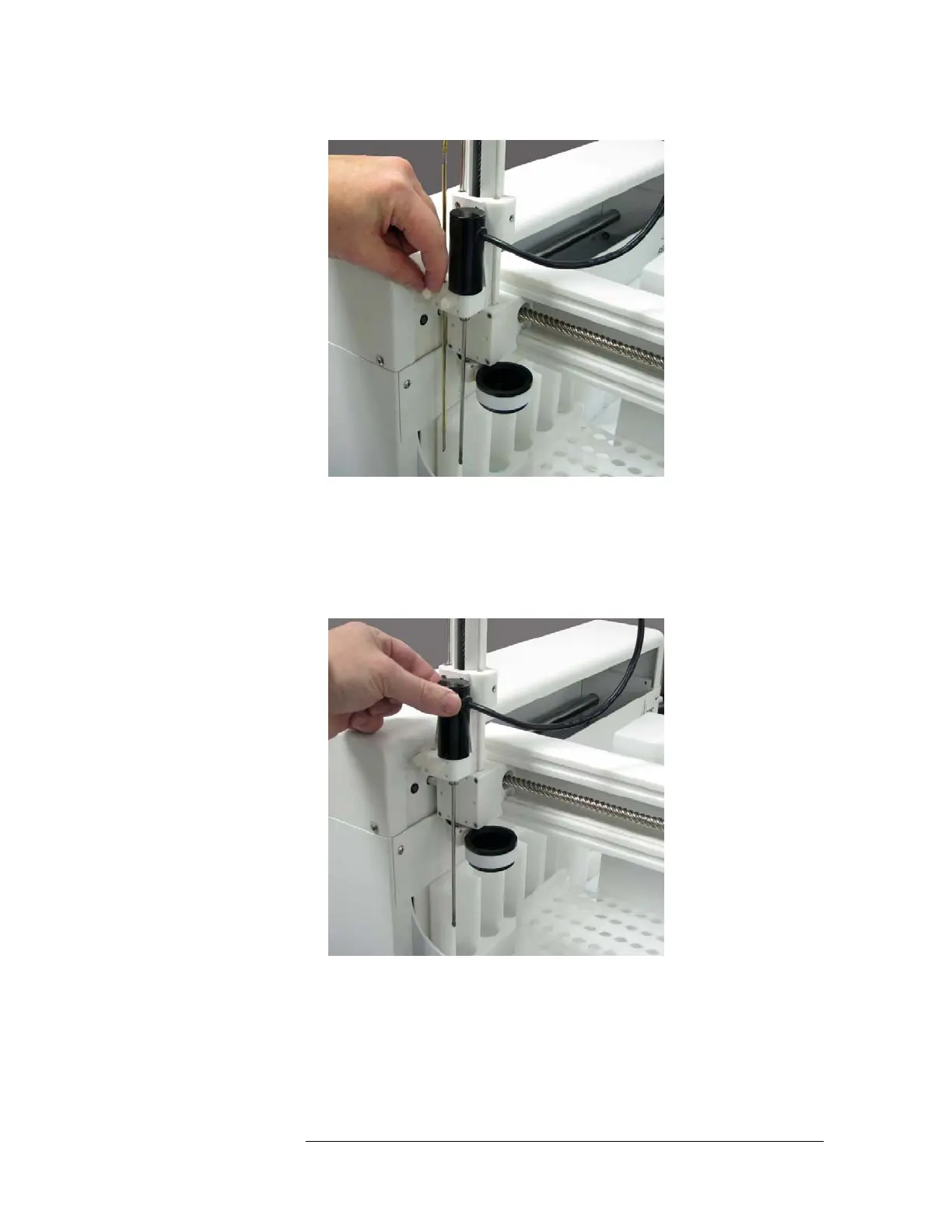

Figure 5-14 Loosening the Thumbscrew
Removing the Stirrer Assembly
1 With the power off, manually push the stirring assembly ¾ of the way down.
2 Remove the thumbscrew and pull the stirring assembly straight up.
Figure 5-15 Lifting Out the Stirring Assembly
Replacing the holder block
1 Remove the 4 screws which hold the plate to the Z-drive assembly.
