Chapter 6: Installing the Valve/Pump Module
72

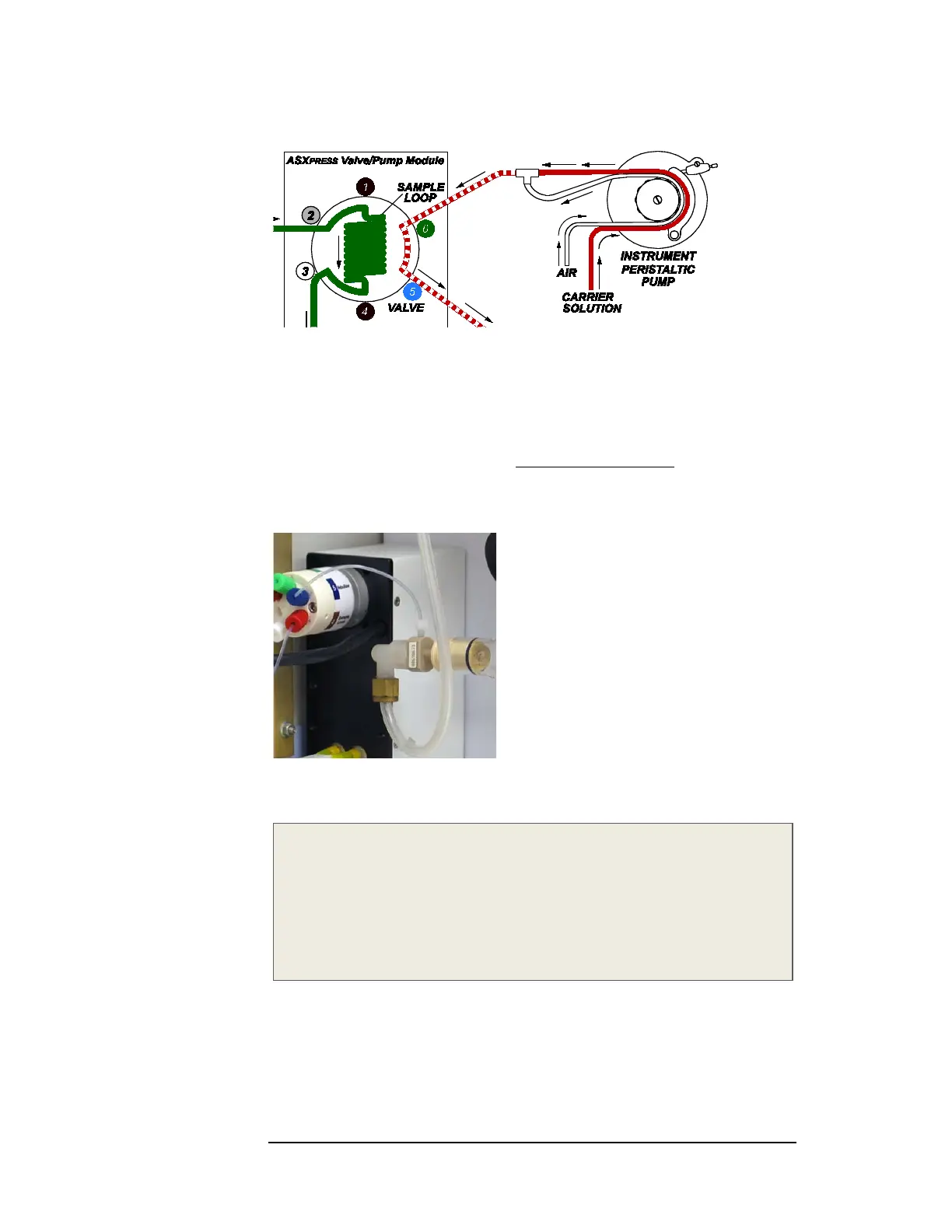

Figure 6-4 Connection Between Instrument Peristaltic Pump and
ASX
PRESS PLUS Valve/Pump Module
3 Connect the 14” length of 0.030” x 0.062” tubing (which is pre-installed to the
blue connector at port #5 of the 6-port valve) to the nebulizer.
Place the ASX
PRESS PLUS valve/pump module as close to the nebulizer as is
possible, and cut the tubing to the
shortest length possible
which will allow
connection of port #5 to the nebulizer without any kinking. Keeping this
tubing short provides the greatest time savings while operating the
ASX
PRESS PLUS system.
Figure 6-5 Nebulizer Connected to Port #5
NOTE
The ASXPRESS PLUS system is designed to operate and interface with many
manufacturers’ instruments. To allow for the closest proximity placement of
the ASXPRESS PLUS valve/pump module to the instruments nebulizer, CETAC
Technologies offers a modular articulating support stand, which allows for
stable mounting and flexible positioning of the valve/pump module. Contact
CETAC Technologies for technical and ordering information.
