CG Emotron VFX Series User Manual

CG Drives & Automation,01-5326-01r5 Functional Description 125
Process Min [324]
This function sets the minimum process value allowed.
Communication information
Process Max [325]
This menu is not visible when speed, torque or frequency is
selected. The function sets the value of the maximum
process value allowed.
Communication information
Ratio [326]
This menu is not visible when speed, frequency or torque is
selected. The function sets the ratio between the actual
process value and the motor speed so that it has an accurate
process value when no feedback signal is used. See Fig. 96.
Communication information

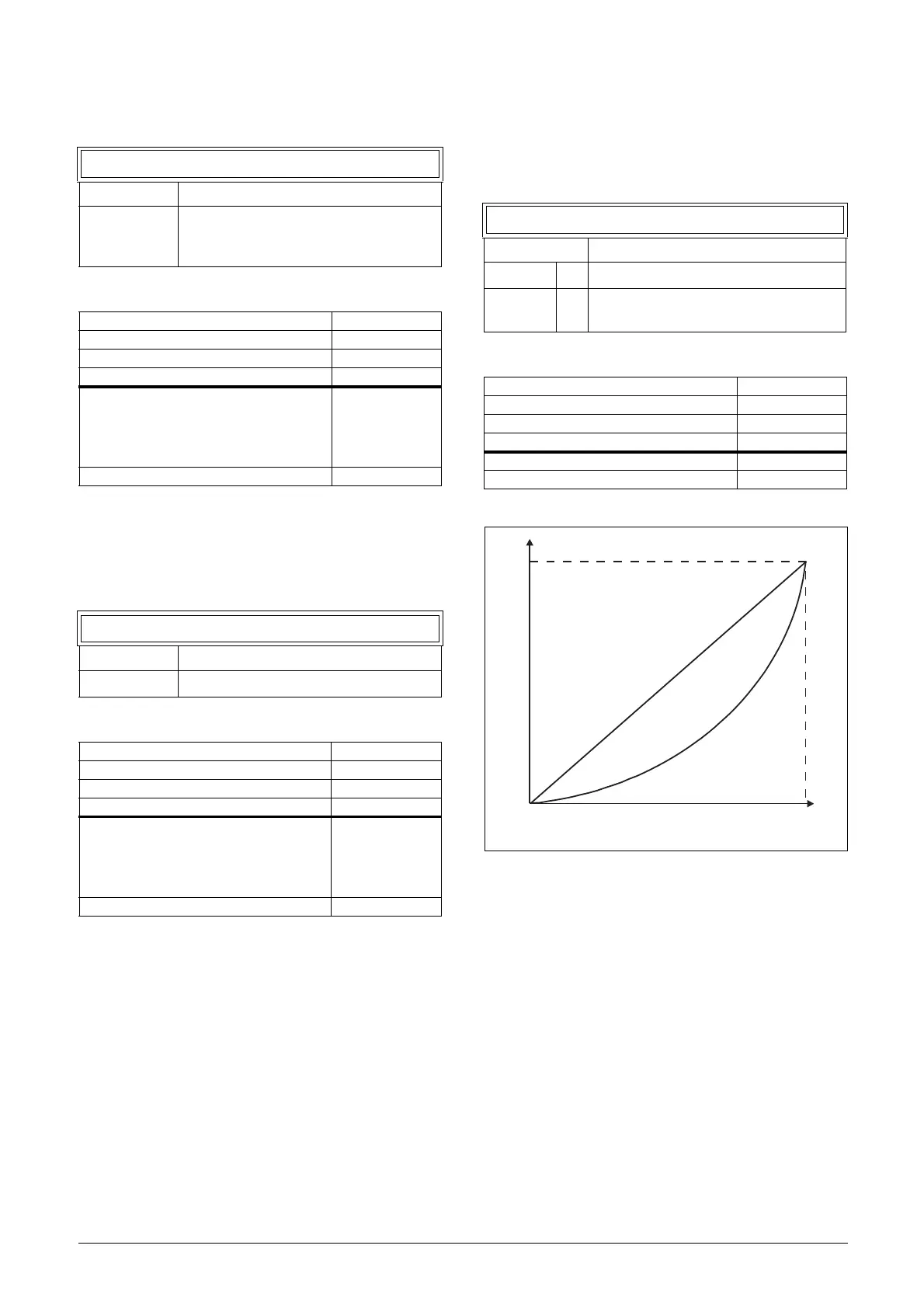

Fig. 96 Ratio
324 Process Min
Default: 0
Range:
0.000-10000 (Speed, Torque, F(Speed),
F(Torque))
-10000– +10000 (F(AnIn, PT100, F(Bus))
Modbus Instance no/DeviceNet no: 43310
Profibus slot/index 169/214
EtherCAT and CANopen index (hex) 4cee
Profinet IO index 19694
Fieldbus format
Long, 1=1 rpm,
1 %,1 °C or
0.001 if Process
Value/Process Ref
using a [322] unit
Modbus format EInt
325 Process Max
Default: 0
Range: 0.000-10000
Modbus Instance no/DeviceNet no: 43311
Profibus slot/index 169/215
EtherCAT and CANopen index (hex) 4cef
Profinet IO index 19695
Fieldbus format
Long, 1=1 rpm,
1 %,1 °C or
0.001 if Process
Value/Process Ref
using a [322] unit
Modbus format EInt
326 Ratio
Default: Linear
Linear 0 Process is linear related to speed/torque
Quadratic 1
Process is quadratic related to speed/
torque
Modbus Instance no/DeviceNet no: 43312
Profibus slot/index 169/216
EtherCAT and CANopen index (hex) 4cf0
Profinet IO index 19696
Fieldbus format UInt
Modbus format UInt
Ratio=Linear
Ratio=Quadratic
Process
Process
Process
Min Max
unit
Max
[325]
Min
[324]
Speed
[341]
Speed
Speed
[343]
